350 Mag MPI Alpha-Bravo - Serial 0L010019 Thru 0L339999 - Alternator (Mando)

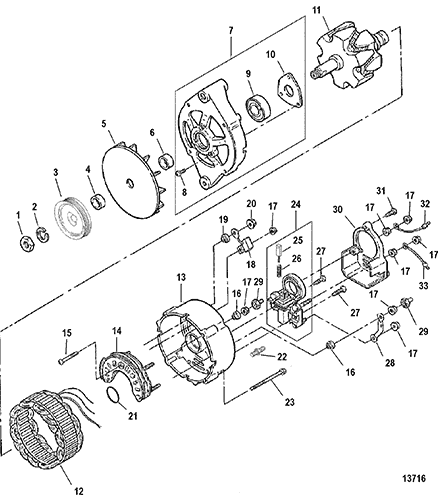

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 807653T
676-9-19104
602-20057 ALTERNATOR ASSEMBLY 1
1 11-809136



NUT 1

2 13-809137



LOCKWASHER 1
3 834990T



PULLEY 1

4 23-809135



SPACER 1
5 809139



FAN ASSEMBLY 1
6 23-809140



SPACER 1
7 809151



BRACKET ASSEMBLY 1
8 10-809154



SCREW 3
9 30-809153



BEARING 1
10 809152



RETAINER 1    This Part is NLA from Mercruiser
11 809150



ROTOR 1    This Part is NLA from Mercruiser
12 809133T



STATOR 1
13 809155



BRACKET ASSEMBLY 1    This Part is NLA from Mercruiser
14 809162



RECTIFIER 1
15 10-809160



SET SCREW 1    This Part is NLA from Mercruiser
16 809146



MOLD 2    This Part is NLA from Mercruiser
17 11-809143



NUT 8    This Part is NLA from Mercruiser
18 809161



CONDENSER 1
19 809158



MOLD 1
20 11-809157



NUT 1
21 25-809156



O-RING 1
22 10-809159



BOLT 1    This Part is NLA from Mercruiser
23 10-809138



BOLT 4    This Part is NLA from Mercruiser
24 811883T



REGULATOR ASSEMBLY 1
25 811884



BRUSH 2
26 24-809165



SPRING 2
27 10-809141



SCREW 2    This Part is NLA from Mercruiser
28 809142



TERMINAL 1    This Part is NLA from Mercruiser
29 809149



CAP 2
30 809144



COVER 1    This Part is NLA from Mercruiser
31 10-809145



SET SCREW 1    This Part is NLA from Mercruiser
32 84-809148



LEAD WIRE (BLACK) 1    This Part is NLA from Mercruiser
33 84-809147



LEAD WIRE (RED) 1    This Part is NLA from Mercruiser
