350 Mag MPI Alpha-Bravo - Serial 0L010019 Thru 0L339999 - Crankshaft And Flywheel

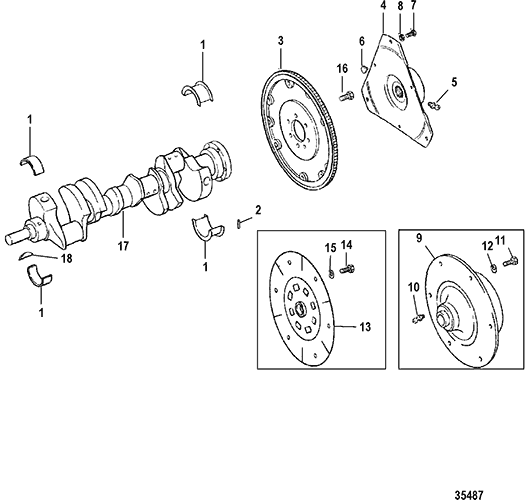

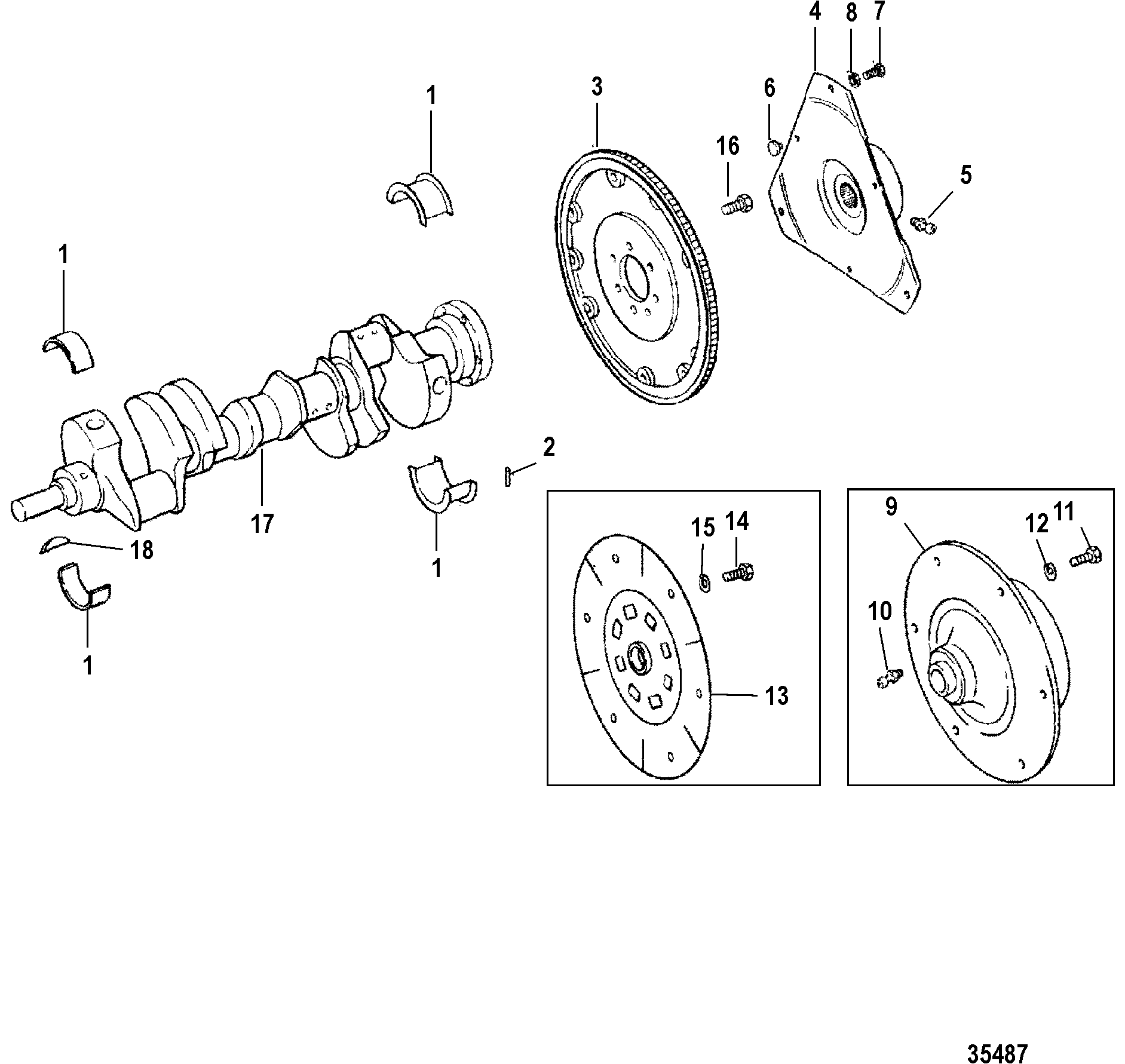

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 23-818465



BEARING SET, 5 Pair (STANDARD) 1

1 23-818466



BEARING SET, 5 Pair (.001 USA) AR
3
1 23-818467



BEARING SET, 5 Pair (.010 USA) AR
3
1 23-818468



BEARING SET, 5 Pair (.020 USA) AR
3
2 17-43504



PIN, Dowel (1/4 IN.) 2 FI1100096
3 8M0047213



FLYWHEEL 1 222-9520
4 18643A5



COUPLING ASSEMBLY 1
ALPHA ENGINES
5 22-74036



FITTING, Grease 1
ALPHA ENGINES
6 18644



BUMPER, Rubber 3
ALPHA ENGINES
7 10-14883



SCREW, (.375-16 x 1.12) 3
ALPHA ENGINES
8 12-13510



WASHER 3
ALPHA ENGINES
9 861523A9



COUPLER ASSEMBLY, Engine 1 18311A17 BRAVO ENGINES
10 22-49099



FITTING 2
BRAVO ENGINES
11 10-14883



SCREW, (.375-16 x 1.12) 6
BRAVO ENGINES
12 12-20572



WASHER, (.390 x .750 x .093) 6
BRAVO ENGINES
13 860125T



DRIVEPLATE ASSEMBLY 1
BLACKTRAC ENGINES
14 10-35091



SCREW, (.375-16 x 1.00) 6
BLACKTRAC ENGINES
15 13-35048



LOCKWASHER, (.375) 6
BLACKTRAC ENGINES
16 10-845757



SCREW, (.437-20 x 1.00) (7/16-20 X 1 IN.) 6 10-49845
17 429-8M0054508



CRANKSHAFT 1 429-95211
18 28-34466



KEY 2
