350 Mag MPI Alpha-Bravo - Serial 1A611928 Thru 1A623184 - Closed Cooling System, ALPHA

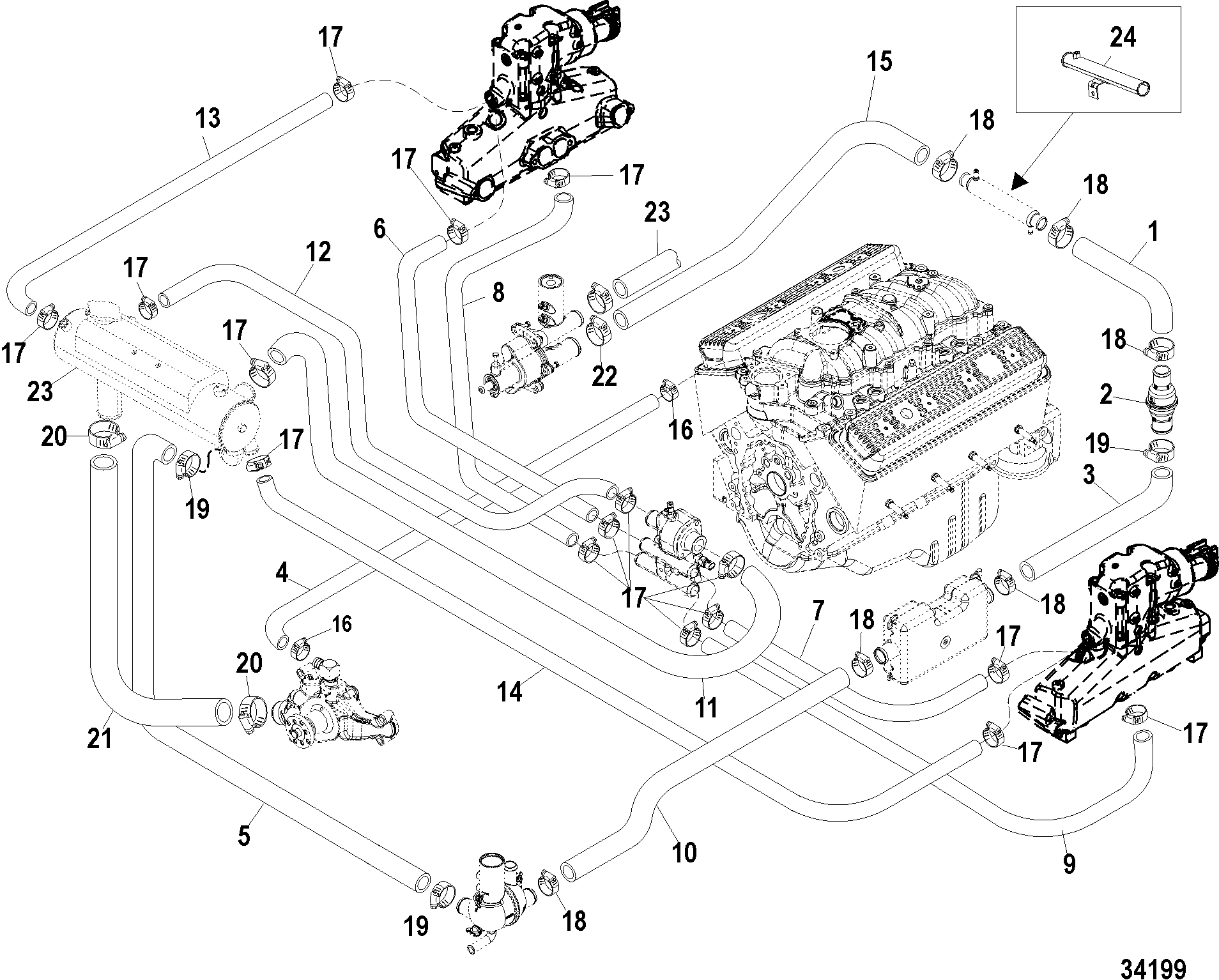

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 32-863489



HOSE, Power Steering to Check Valve 1

2 21-864206A1



CHECK VALVE ASSEMBLY 1

3 32-863623



HOSE, Check Valve to Fuel Cooler 1

4 32-864551



HOSE, Intake Bypass to Circulating Pump 1

5 32-864431



HOSE, Distribution Fitting to Heat Exchanger 1

6 32-864539



HOSE, Thermostat Housing to Upper Manifold 1
Starboard, Non- Riser
6 32-864956



HOSE, Thermostat Housing to Upper Manifold 1
Starboard (1.7 Inch, 3 Inch, 4.7 Inch and 6 Inch Riser)
7 32-864552



HOSE, Thermostat Housing to Upper Manifold 1
Port, Non-Riser
7 32-864954



HOSE, Thermostat Housing to Upper Manifold 1
Port (1.7 Inch, 3 Inch, 4.7 Inch and 6 Inch Riser)
8 32-864509



HOSE, Thermostat Housing to Lower Manifold 1
Starboard
9 32-864508



HOSE, Thermostat Housing to Lower Manifold 1
Port
10 32-863670



HOSE, Fuel Cooler to Accumulator Housing 1

11 32-864506



HOSE, Heat Exchanger to Thermostat Housing 1

12 32-864507



HOSE, Heat Exchanger to Thermostat Housing 1

13 32-8M2005027



HOSE, Heat Exchanger to Starboard Elbow 1
(Non Riser, 1.7 Inch and 3 Inch Riser)
13 32-864955



HOSE, Heat Exchanger to Starboard Elbow 1
(4.7 Inch and 6 Inch Riser)
14 32-864726



HOSE, Heat Exchanger to Port Elbow 1
(Non Riser, 1.7 Inch and 3 Inch Riser)
14 32-864953



HOSE, Heat Exchanger to Port Elbow 1
(4.7 Inch and 6 Inch Riser)
15 32-863611



HOSE, Sea Pump to Power Steering Cooler 1

16 54-815504212



CLAMP, Worm Gear 1

17 54-815504216



CLAMP, Worm Gear (1.56 Diameter) 1

18 54-815504228



CLAMP, Worm Gear 1

19 54-815504232



CLAMP, Worm Gear 1 54-8M2001490
20 54-815504232



CLAMP, Worm Gear (2.50 Diameter) 1

21 32-864886



HOSE, Heat Exchanger to Circulating Pump 1

22 54-815504228



CLAMP, Worm Gear 1

23 32-865672079



HOSE, (96.00 Inches Bulk), Sea Water Pump to Water Pick Up 1

24 863841T



TUBE, Water, Brass 1
