350 Mag MPI Alpha-Bravo - Serial 1A611928 Thru 1A623184 - Closed Cooling System, AXIUS

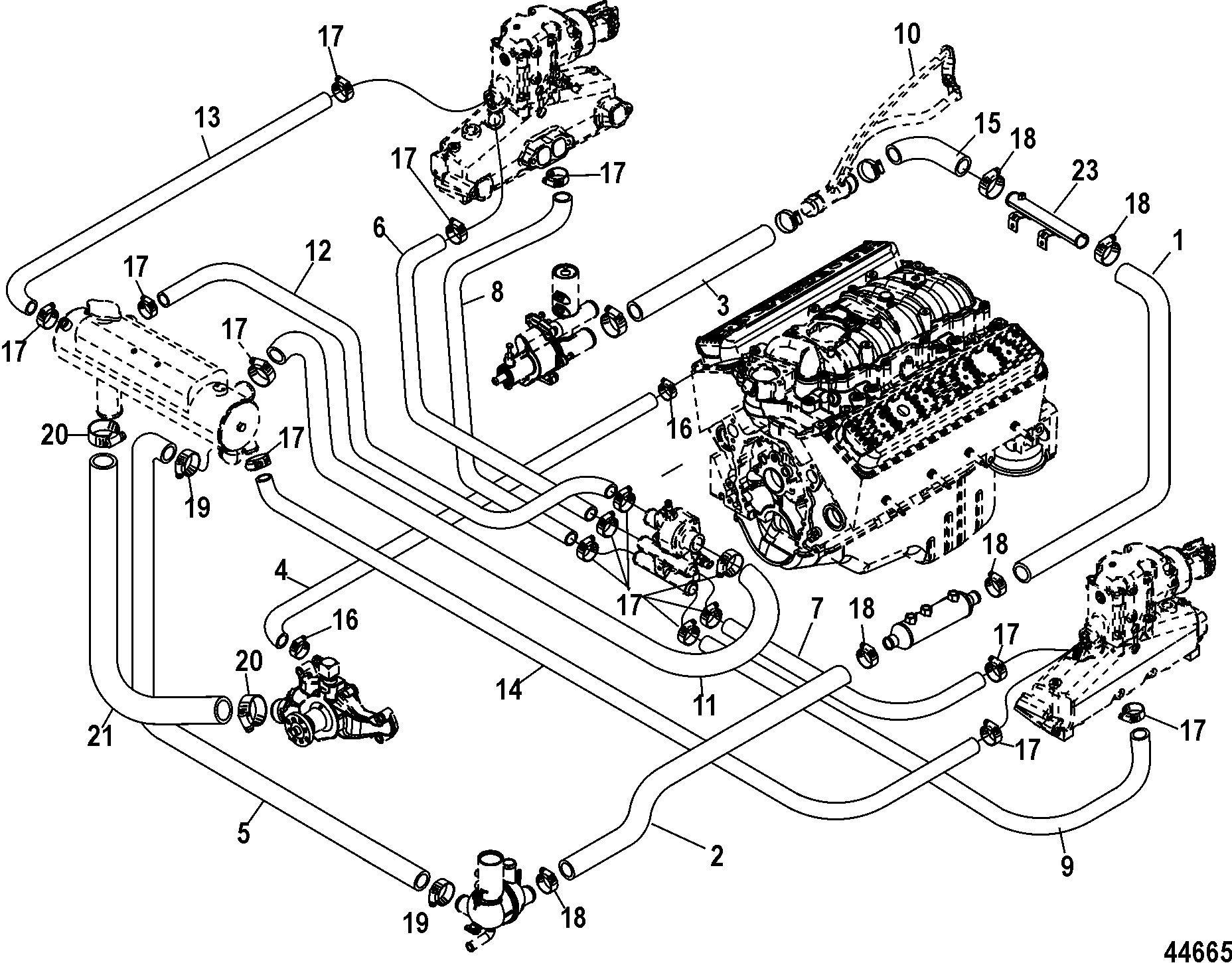

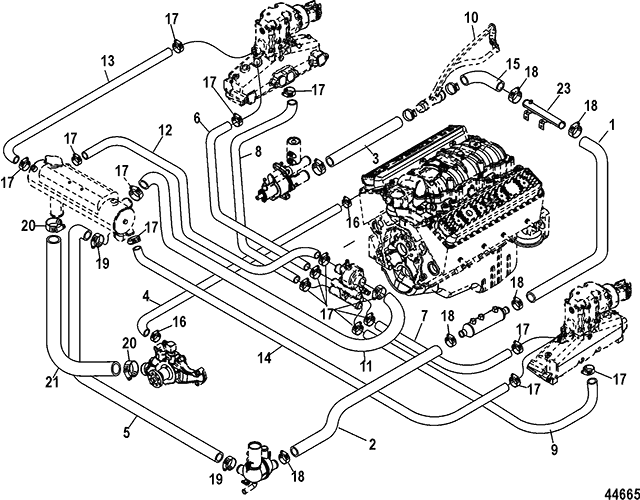

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 32-8M2005646



HOSE, Cooling Tube to Steering Cooler 1

2 32-8M2007277



HOSE, Steering Cooler to Drain Housing 1

3 32-865234



HOSE, Sea Water Pump to Water Orifice


4 32-864551



HOSE, Intake Bypass to Circulating Pump 1

5 32-864431



HOSE, Distribution Fitting to Heat Exchanger 1

6 32-864539



HOSE, Thermostat Housing to Upper Manifold 1
(Starboard) (Non Riser)
6 32-864956



HOSE, Thermostat Housing to Upper Manifold 1
(Starboard)(1.7 Inch, 3 Inch, 4.7 Inch and 6 Inch Riser)
7 32-864552



HOSE, Thermostat Housing to Upper Manifold 1
(Port) (Non Riser)
7 32-864954



HOSE, Thermostat Housing to Upper Manifold 1
(Port)(1.7 Inch, 3 Inch, 4.7 Inch and 6 Inch Riser)
8 32-864509



HOSE, Thermostat Housing to Lower Manifold 1
(Starboard)
9 32-864508



HOSE, Thermostat Housing to Lower Manifold 1
(Port)
10 NA



NOT AVAILABLE, Orifice Meter 1
(See 'Cool Fuel System -Bravo' Page for Service Part Number
11 32-864506



HOSE, Heat Exchanger to Thermostat Housing 1

12 32-864507



HOSE, Heat Exchanger to Thermostat Housing 1

13 32-8M2005027



HOSE, Heat Exchanger to Starboard Elbow 1
(Non Riser, 1.7 Inch and 3 Inch Riser)
13 32-864955



HOSE, Heat Exchanger to Starboard Elbow 1
(4.7 Inch and 6 Inch Riser)
14 32-864726



HOSE, Heat Exchanger to Port Elbow 1
(Non Riser, 1.7 Inch and 3 Inch Riser)
14 32-864953



HOSE, Heat Exchanger to Port Elbow 1
(4.7 Inch and 6 Inch Riser)
15 32-865235



HOSE, Water Orifice to Power Steering Cooler 1

16 54-815504212



CLAMP, Worm Gear A/R

17 54-815504216



CLAMP, Worm Gear (1.56 Diameter) AR

18 54-815504222



CLAMP, Worm Gear (1.98 DIameter) AR

19 54-815504232



CLAMP, Worm Gear A/R 54-8M2001490
20 54-815504232



CLAMP, Worm Gear (2.50 Diameter) AR

21 32-864886



HOSE, Heat Exchanger to Circulating Pump 1
22 54-815504228



CLAMP, Worm Gear AR
23 879312T65



TUBE, Water Hose 1
