350 Mag MPI HORIZON Alpha-Bravo - Serial 0M300000 Thru 0M599999 - Thermostat And Housing (Multi Point Drain)

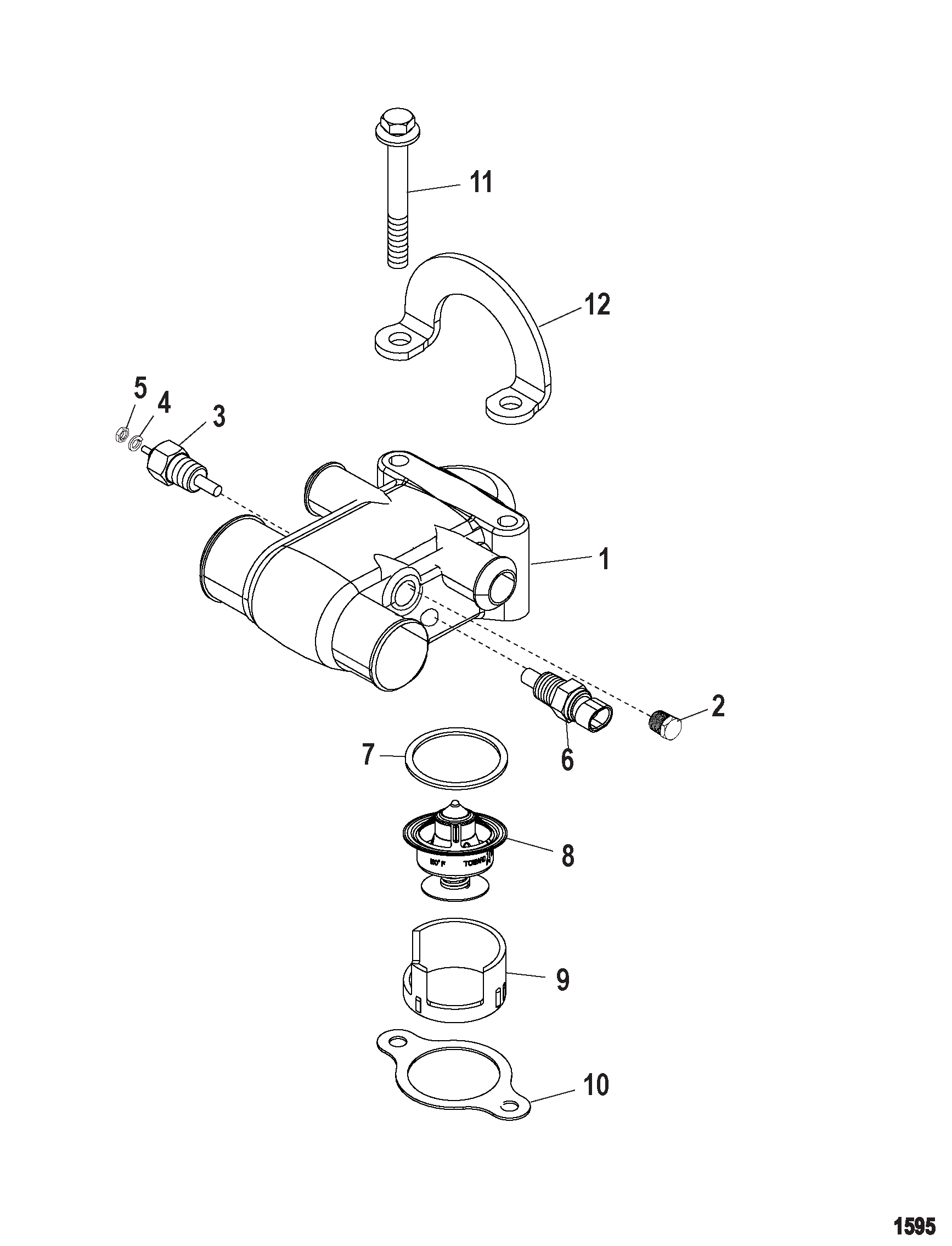

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator And Brackets
- Closed Cooling System (Easy Drain)
- Cylinder Block, Camshaft And Crankshaft
- Cylinder Block-Flywheel Housing
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Components
- Engine Mounts
- Exhaust Manifold And Elbow
- Exhaust System
- Front Cover And Circulating Pump
- Fuel Filter (0M336101 And Below)
- Fuel Filter And Boost Pump (0M336102 And Up)
- Fuel Pump And Fuel Cooler
- Intake Manifold and Fuel Rail
- Jackshaft Components
- Mercathode Components
- Oil Pan And Oil Pump
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Easy Drain)
- Standard Cooling System (Multi Point Drain)
- Starter Motor
- Thermostat And Housing (Easy Drain)
- Thermostat And Housing (Multi Point Drain)
- Throttle Body
- Water Distribution Housing
- Water Drain, Air Manifold And Air Pump
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | OEM: 525-860256A3 | HOUSING ASSEMBLY Thermostat Thermostat | (Alpha) | 1 | |
| 1 | 0000 | OEM: 525-860256A4, Sierra: 676-18-3530-1 | HOUSING ASSEMBLY Thermostat Thermostat | (Bravo) | 1 | |
| 2 | 0022 | OEM: 525-22-32803, Sierra: 676-18-4264, GLM: 700-21894 | PLUG Pipe (.375-18) Brass | 2 | ||
| 3 | 0000 | OEM: 530-806490T, Sierra: 676-18-5897 | SENDER | 1 | ||
| 3 | 0000 | OEM: 525-49734 | SENDER (Dual Station) | OPT | ||
| 4 | 0013 | OEM: 525-13-26996 | LOCKWASHER (#10) Stainless Steel | 1 | ||
| 5 | 0011 | OEM: 525-11-68219 | NUT (#10-32) Stainless Steel | 1 | ||
| 6 | 0000 | OEM: 530-805218T, Sierra: 676-18-7600 | SENSOR | 1 | ||
| 7 | 0027 | OEM: 525-27-806871 | GASKET Termostat Housing | 1 | [1] | |
| 8 | 0000 | OEM: 525-807252T2, Sierra: 676-18-3649, GLM: 700-13100 | THERMOSTAT 71DegreeC (160 Degree F) | 1 | [2] | |
| 9 | 0023 | OEM: 530-806922 | SLEEVE Thermostat | 1 | ||
| 10 | 0027 | OEM: 525-27-530451, Sierra: 676-18-2917 | GASKET Lower Thermostat Housing | 1 | [3] | |
| 11 | 0010 | OEM: 525-10-4010775 | SCREW (M8 x 75) | 2 | ||
| 12 | 0000 | OEM: 525-12552, GLM: 700-13237 | LIFTING EYE | 1 |
PART NOTES:
[1] - Component Of Engine Overhaul Gasket Set 807756A01
[2] - Alternate part numbers:
807252Q 5QS Kit
807252T 2Service Part
807252T 5MPP Kit
[3] - Alternate part numbers:
53045 1Service Part
53045Q01QS
Component Of Engine Overhaul Gasket Set 807756A01
