350 Mag Alpha EFI(Gen +) GM V-8 1996 - Serial 0F800300 Thru 0K001508 - Standard Cooling System

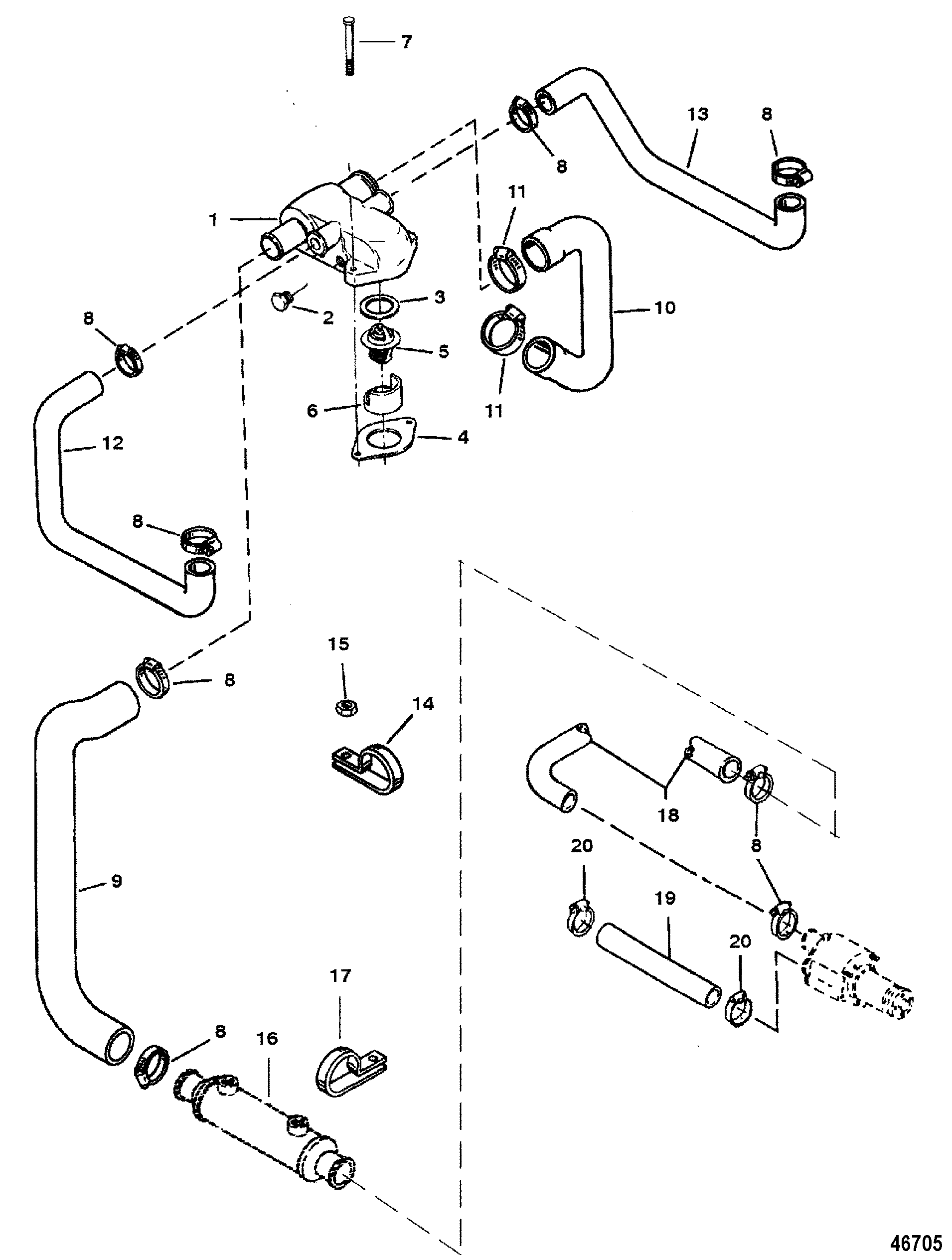

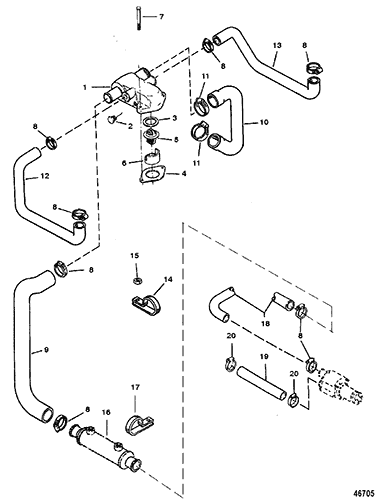

Section Drawing: (Hover or click to view larger)

Untitled Document <
Ref. OEM Part # SEI # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 806235A1



HOUSING ASSEMBLY, Thermostat 1

2 22-32803

700-21894
PLUG, Pipe (.375-18) Brass 2

3 27-806871



GASKET 1
3
4 27-530451



GASKET 1
3
5 807252T2



THERMOSTAT, 71°C (160°F) 1 8072522
6 23-806922



SLEEVE 1

7 10-98794 602-98-102-35 676-9-78129 700-28300 525-10-98794 SCREW, (.375-16 x 1.00) 2

8 54-815504220



CLAMP, Worm Gear AR
2
9 32-806856



HOSE 1

10 32-861590A05



HOSE 1 32-806825
11 54-815504232



CLAMP, Worm Gear (2.50 Diameter) 2

12 32-8066351



HOSE 1
(PORT)
13 32-8066361



HOSE 1
(STARBOARD)
14 54-47715



CLIP 1

15 11-29250



NUT, (.312-24) 1

16861554T01



COOLER, Power Steering Oil 1 807292T
17 54-816398



CLIP 1

18 32-887952



HOSE 1

19 32-865672079



HOSE, (96.00 Inches Bulk) 1 32-1743579
20 54-815504222



CLAMP, Worm Gear (1.98 DIameter) 2
- 27-75611A96



GASKET SET 1
