350 Mag Alpha EFI(Gen +) GM V-8 1996 - Serial 0F800300 Thru 0K001508 - Vapor Separator Tank And Fuel Lines

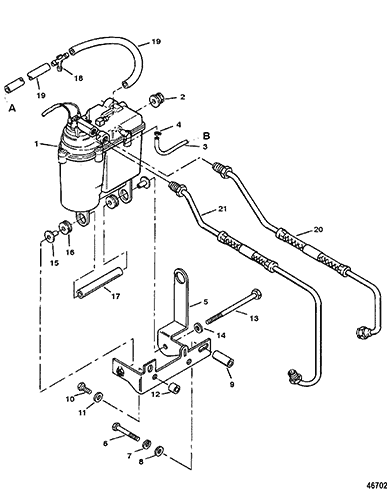

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 806643A5         TANK, Vapor Separator 1   This Part is No Longer Available
2 25-880331         GROMMET 1   This Part is No Longer Available
3 32-80568932         HOSE 1   This Part is No Longer Available
4 54-815504105         CLAMP, Worm Gear (11-18 mm) 2

5 806645T         BRACKET 1   This Part is No Longer Available
6 10-26486         SCREW, (.375-16 x 2.375) 1

7 13-35048         LOCKWASHER, (.375) 1

8 12-20553         WASHER, (.406 x .734 x .063) 1

9 23-15895         SPACER, (.38 x 1.00 x 1.44) (1-7/16") 1
No longer made, limited availability
10 10-37612         SCREW, (.375-16 x 1.250) 1

11 13-35048         LOCKWASHER, (.375) 1

12 23-91034         SPACER, (.380 x 1.00 x .530) (1/2") 1
No longer made, limited availability
13 10-807056         SCREW 1   This Part is No Longer Available
14 12-26825         WASHER, (.328 x .750 x .06) 1

15 23-19064         BUSHING 2

16 25-88033         GROMMET 2

17 23-806648         SPACER 1   This Part is No Longer Available
18 22-806689         FITTING, Tee 1

19 32-7381567         TUBING, (42.00 Inches Bulk) 2

20 32-807851T         LINE, Fuel 1   This Part is No Longer Available (OUTLET)
21 32-807850T         LINE, Fuel 1   This Part is No Longer Available (INLET)
