5.0L (2 BBL) GM 305 V-8 1998-2001 - Serial 0L015751 Thru 0M599999 - Alternator And Brackets (Delco)

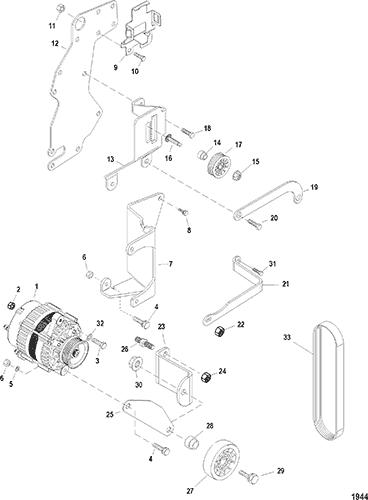

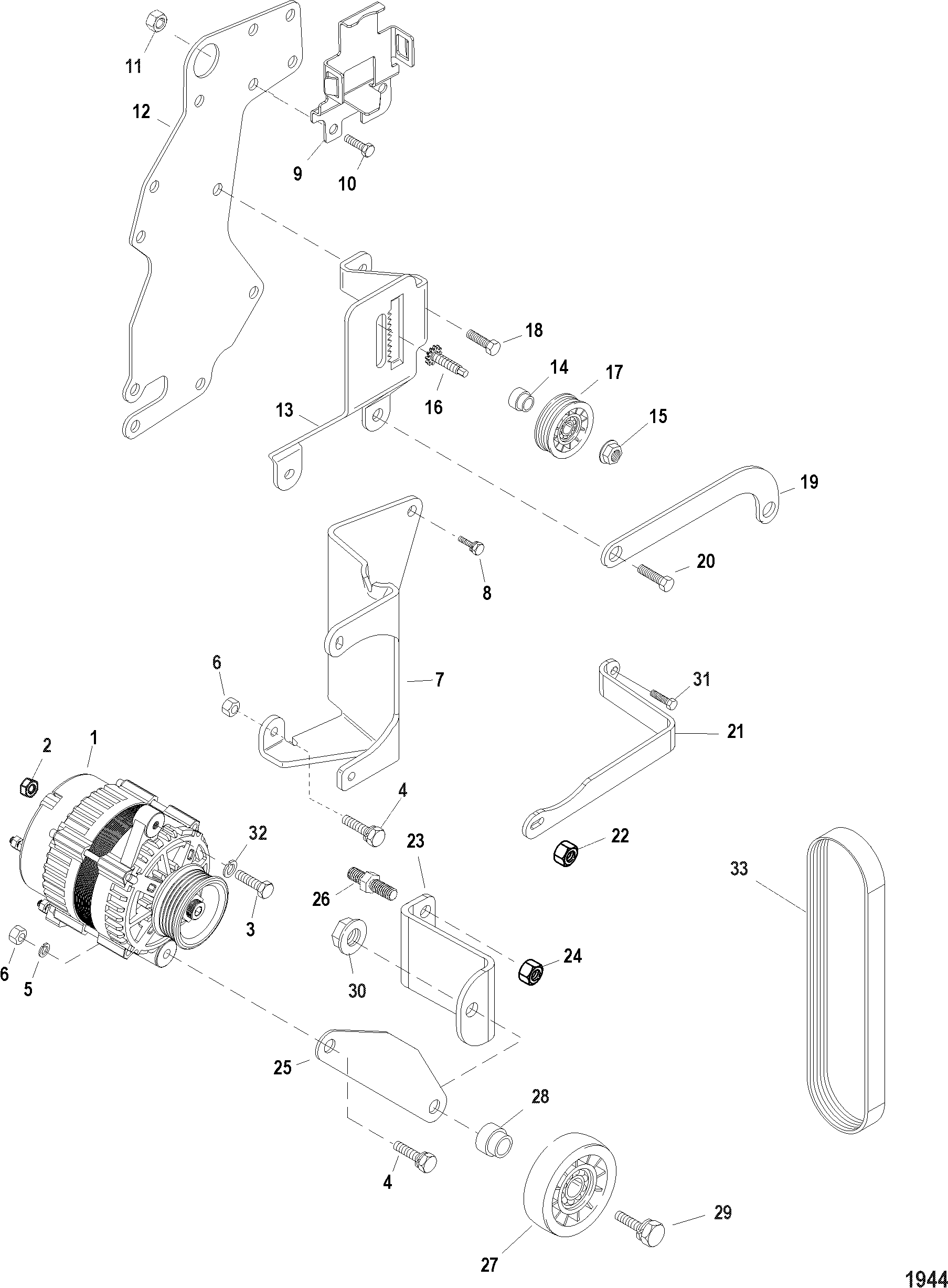

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 862031T1         ALTERNATOR ASSEMBLY (65 Amp) 1
(With 62 MM Pulley) SN# 0M320024 & Below
1 863077T   676-9-19111   602-20119 ALTERNATOR ASSEMBLY, Black (65 Amp) 1
(With 50 MM Pulley) SN# 0M320025 & Up
2 11-400212         NUT, (M6) Stainless Steel 1

3 10-40001134         SCREW, (M8 x 25) 1

4 10-828213         SCREW, (.312-18 x 1.500) Hex Flange 2

5 12-57792         WASHER 2

6 11-859119         NUT, (.312-18) 2

7 863211T01         BRACKET, Alternator Mounting 1 862055T
8 10-98261         SCREW, (.375-16 x .750) 3

9 860065A1         BRACKET KIT, Oil Bottle - Reservoir Mounting 1

10 10-98261         SCREW, (.375-16 x .750) 6

11 11-32219         NUT, (.375-16) 2

12 862056T         BRACKET 1   This Part is No Longer Available
13 862083T         BRACKET, Idler Adjusting 1

14 865193         BUSHING 1 818380T
15 11-859135   676-9-78116     NUT, (.437-20) Brass/Nickel Plated 1

16 43-8183812         PINION STUD, (.437-20) Stainless Steel 1

17 807757T         PULLEY ASSEMBLY, Idler - Black 1
(3 Inch Diameter) SN# 0M320024 & Below
17 864625T         PULLEY 1
(4.25 Inch Diameter) (With Power Steering) SN# 0M320025 & Up
17 807757T         PULLEY ASSEMBLY, Idler - Black 1
(3 Inch Diameter) (Compact Hydraulic Steering) SN# 0M320025 & Up
18 10-34353       525-10-34353 SCREW, (.375-16 x 1.00) 2

19 862082T         BRACE, Power Steering Brace 1

20 10-40001188         SCREW, (M10 x 20) 1

21 862778A1         BRACKET, Alternator Brace 1
(Alpha)
22 11-29250         NUT, (.312-24) 1
(Alpha)
23 862084T         BRACKET, Idler 1

24 11-32219         NUT, (.375-16) 2

25 862085T         BRACE, Idler Brace 1

26 16-860102         STUD, (.375-16 x 1.730) 2

27 8M6500024         PULLEY 1 818382
28 865193         BUSHING 1 818380T
29 10-56393         SCREW, (.437-20 x 1.75) 1

30 11-859135   676-9-78116     NUT, (.437-20) Brass/Nickel Plated 1

31 10-34353       525-10-34353 SCREW, (.375-16 x 1.00) 1

32 12-20084     700-21664   WASHER, (.328 x .562 x .062) 1

33 57-865615Q04         BELT, Serpentine, Standard Cooling 1 57-8638764 (Alpha) (With Power Steering)
33 57-865615Q09         BELT, Serpentine, Standard Cooling 1 57-8638769 (Alpha) (CHS And Non Power Steering)
33 57-8638763         BELT, Serpentine, Standard Cooling 1
(Bravo) (With Power Steering)
33 57-865615Q08         BELT, Serpentine, Standard Cooling 1 57-8638768 (Bravo) (CHS And Non Power Steering)
33 57-8638763         BELT, Serpentine, Closed Cooling 1
(Alpha/Bravo) (With Power Steering)
33 57-865615Q08         BELT, Serpentine, Closed Cooling 1 57-8638768 (Alpha/Bravo) (CHS And Non Power Steering)
