| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

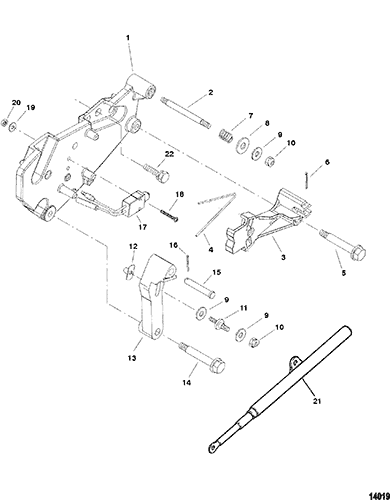

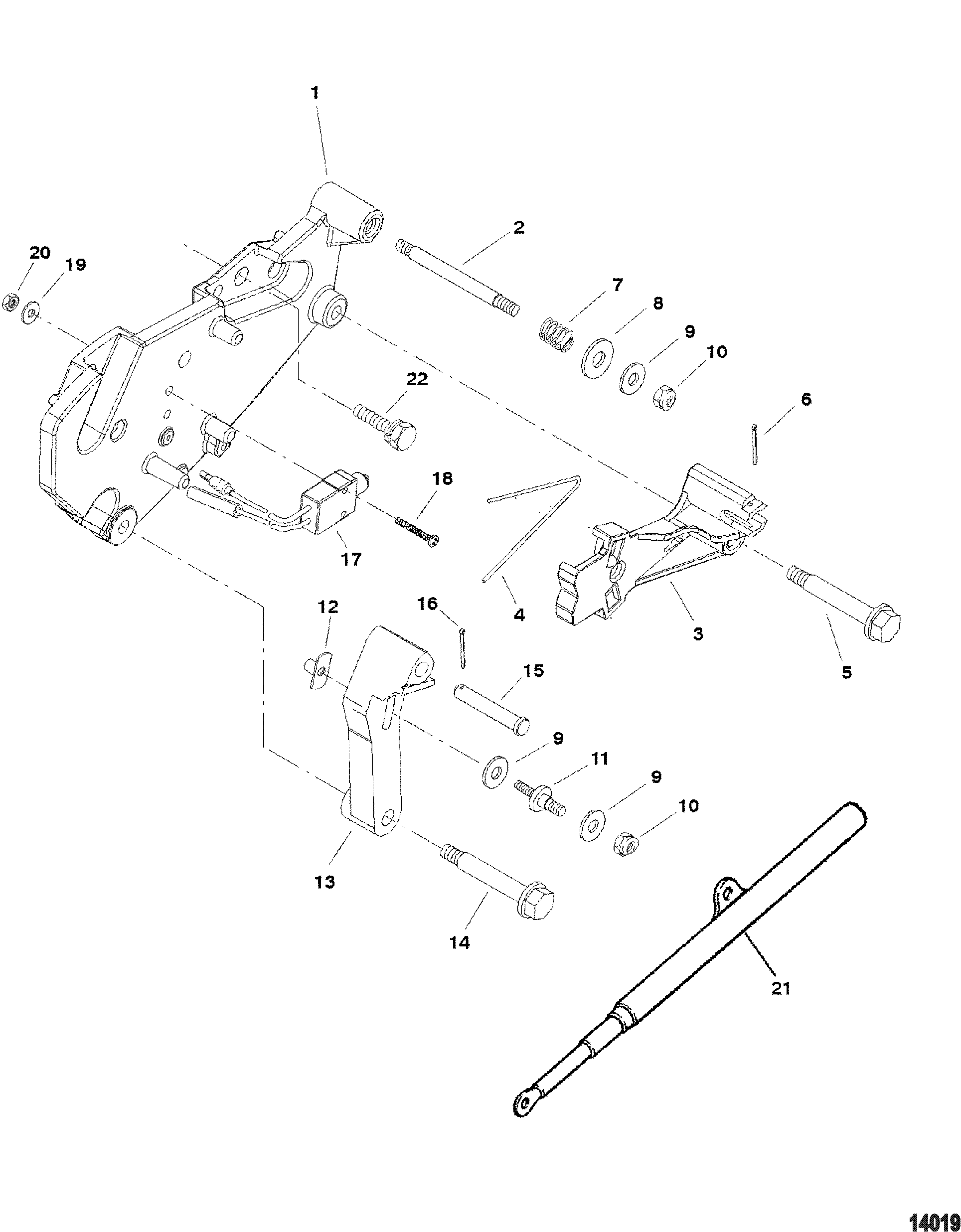

| 1 |
807962A15 |
|
|
|
|
BRACKET ASSEMBLY |
1 |
807962A10 |
|
| 2 |
16-8140021 |
|
|
|
|
STUD, (.250 x 2.870) |
1 |
|
No longer made, limited availability |
| 3 |
13051A8 |
|
|
|
|
LEVER ASSEMBLY, Actuating |
1 |
|
|
| 4 |
24-862850 |
|
|
|
|
SPRING |
1 |
|
|
| 5 |
10-13743 |
|
|
|
|
SCREW, (.312-18 x 1.843), Shoulder |
1 |
|
|
| 6 |
18-328571 |
|
|
|
|
COTTER PIN |
1 |
18-32857 |
|
| 7 |
24-98880 |
|
|
|
|
SPRING |
1 |
|
|
| 8 |
12-56720 |
|
|
|
|
WASHER, (.330 x .750 x .060) Stainless Steel |
1 |
|
|
| 9 |
12-35462 |
|
|
|
|
WASHER, (.2656 x .625 x .0625) Stainless Steel |
4 |
|
|
| 10 |
11-8267119 |
|
|
|
|
NUT, (.250-28) |
2 |
|
|
| 11 |
16-96112 |
|
|
|
|
STUD, (.250-28 x 2.00), Throttle Cable Anchor (2 Inch) |
1 |
|
|
| 11 |
16-865393A02 |
|
|
|
|
STUD, (.250-28 x 1.90) |
1 |
16-961123 |
|
| 12 |
11-63341 |
|
|
|
|
TEE NUT |
1 |
|
|
| 13 |
13898T06 |
|
|
|
|
LEVER ASSEMBLY, Shift |
1 |
13898A3 |
|
| 14 |
10-13743 |
|
|
|
|
SCREW, (.312-18 x 1.843), Shoulder |
1 |
|
|
| 15 |
17-814001 |
|
|
|
|
PIN, Clevis |
1 |
|
|
| 16 |
18-210711 |
|
|
|
|
COTTER PIN |
1 |
18-21071 |
|
| 17 |
87-814281A5 |
|
|
|
|
SWITCH ASSEMBLY |
1 |
|
|
| 18 |
10-860077 |
|
|
|
|
SCREW, (#6-32 x 1.00) |
2 |
|
|
| 19 |
12-11303 |
|
|
|
|
WASHER |
2 |
|
|
| 20 |
11-F1669 |
|
|
|
|
NUT, (#6-32) |
2 |
|
|
| 21 |
813995A1 |
|
|
|
|
GUIDE ASSEMBLY, Spring |
1 |
|
|
| 22 |
10-657461 |
|
|
|
|
SCREW AND LOCKWASHER, (.250-20 x .625) |
3 |
|
|
