5.7L Bravo EFI (TBI) GM 350 V-8 1995 - Serial 0F225560 Thru 0F752399 - Crankshaft And Flywheel

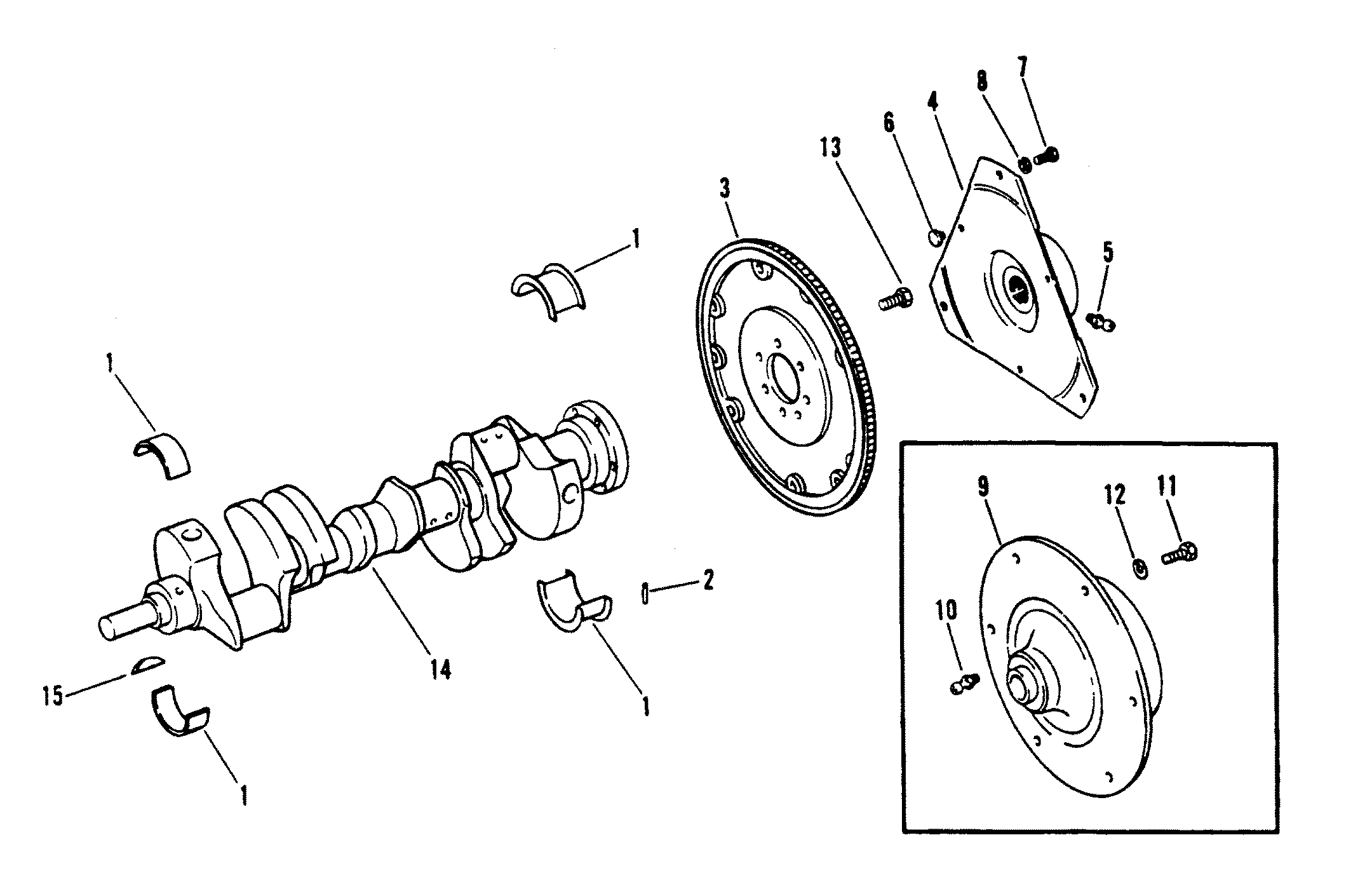

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft And Flywheel
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distribitor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow (Alpha)
- Exhaust Manifold And Exhaust Elbow (Bravo)
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mercathode Components
- Miscellaneous Parts and Accessories
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Pistons And Conn. Rods
- Power Steering Components
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket (Alpha)
- Shift Bracket (Bravo)
- Starter Motor
- Starter Motor And Alternator
- Thermostat Housing (Standard Cooling)
- Throttle Body
- Throttle Linkage
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Lines
- Wiring Harness (EFI) (Illustration Only)
- Wiring Harness (Engine) (Illustration Only)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 23-818465 | BEARING SET (STANDARD) | 1 | ||||||
| 1 | 23-818466 | BEARING SET (.001 U.S.) | AR | ||||||
| 1 | 23-818467 | BEARING SET (.010 U.S.) | AR | ||||||
| 1 | 23-818468 | BEARING SET (.020 U.S.) | AR | ||||||
| 2 | 17-843378 | DOWEL PIN (1/4" DIA.) | 2 | 17-35312 | |||||
| 3 | 8M0047213 | FLYWHEEL | 1 | 222-9520 | |||||
| 4 | 18643A5 | 676-9-72507 |
700-11532 |
COUPLING | 1 | ALPHA | |||
| 5 | 22-74036 | FITTING | 1 | ALPHA | |||||
| 6 | 18644 | RUBBER BUMPER | 3 | ALPHA | |||||
| 7 | 10-14883 | SCREW | 3 | ALPHA | |||||
| 8 | 12-13510 | WASHER | 3 | ALPHA | |||||
| 9 | 861523A9 | 676-9-72503 |
525-861523A9 |
COUPLING ASSEMBLY | 1 | 18311A17 | BRAVO | ||
| 10 | 22-49099 | GREASE FITTING | 2 | BRAVO | |||||
| 11 | 10-14883 | SCREW | 6 | BRAVO | |||||
| 12 | 12-20572 | WASHER | 6 | BRAVO | |||||
| 13 | 10-845757 | SCREW | 6 | 10-49845 | |||||
| 14 | 429-9521T | CRANKSHAFT | 1 | 429-9521 | This Part is No Longer Available | ||||
| 15 | 28-34466 | KEY | 2 |
