5.7L Bravo EFI (TBI) GM 350 V-8 1995 - Serial 0F225560 Thru 0F752399 - Flywheel Housing

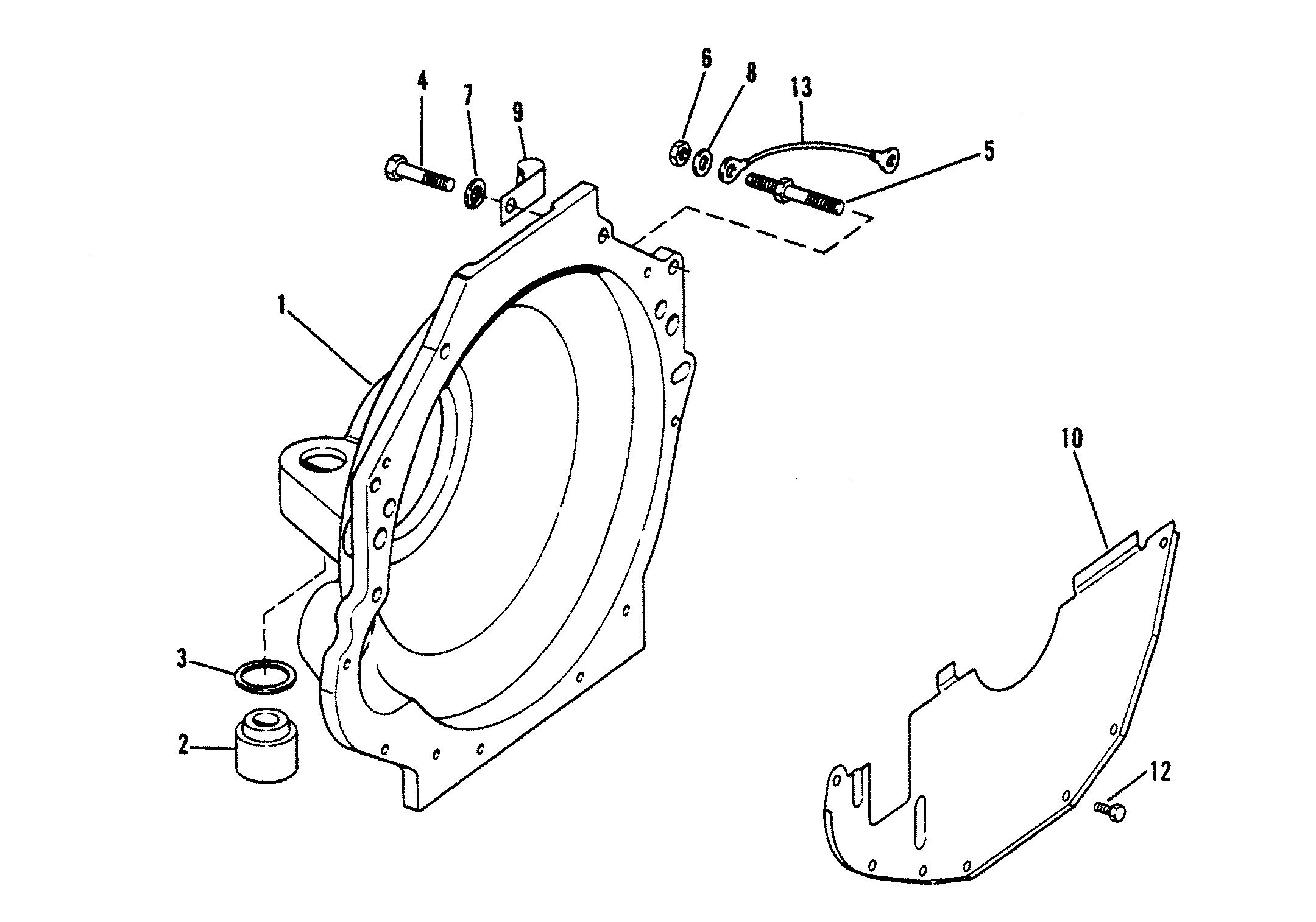

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft And Flywheel
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distribitor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow (Alpha)
- Exhaust Manifold And Exhaust Elbow (Bravo)
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mercathode Components
- Miscellaneous Parts and Accessories
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Pistons And Conn. Rods
- Power Steering Components
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket (Alpha)
- Shift Bracket (Bravo)
- Starter Motor
- Starter Motor And Alternator
- Thermostat Housing (Standard Cooling)
- Throttle Body
- Throttle Linkage
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Lines
- Wiring Harness (EFI) (Illustration Only)
- Wiring Harness (Engine) (Illustration Only)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes | |
| 1 | 865657A04 | FLYWHEEL HOUSING | 1 | 99297A1 | ||||||
| 2 | 865329A02 | 620-91200 |
525-57621 |
RUBBER MOUNT | 2 | |||||
| 3 | 23-99322 | 700-21040 |
SPACER | 2 | ||||||
| 4 | 10-37612 | SCREW (1-1/4") | 4 | |||||||
| 4 | 10-358701 | SCREW (2") | 2 | |||||||
| 5 | 16-64066 | STUD | 2 | |||||||
| 6 | 11-32219 | NUT | 2 | |||||||
| 7 | 13-35048 | 700-21495 or | 700-21493 | LOCKWASHER | 7 | |||||
| 8 | 12-20572 | WASHER | 1 | |||||||
| 9 | 54-78945 | J-CLAMP | 1 | |||||||
| 9 | 54-92850 | CLAMP | 2 | 818719A1 | ||||||
| 10 | 807260A2 | COVER | 1 | |||||||
| 12 | 10-32773 | SCREW | 7 | |||||||
| 13 | 84-62826A6 | WIRE | 1 |
