5.7L CARB Alpha-Bravo - Serial 0W650000 and Up - Electrical Components

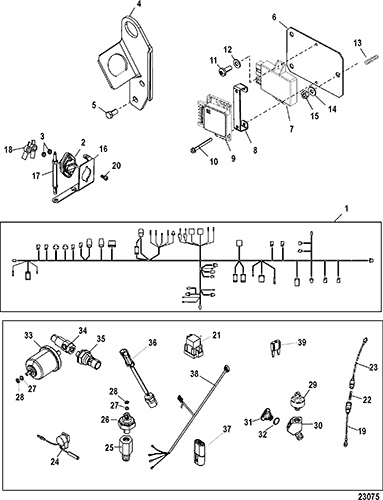

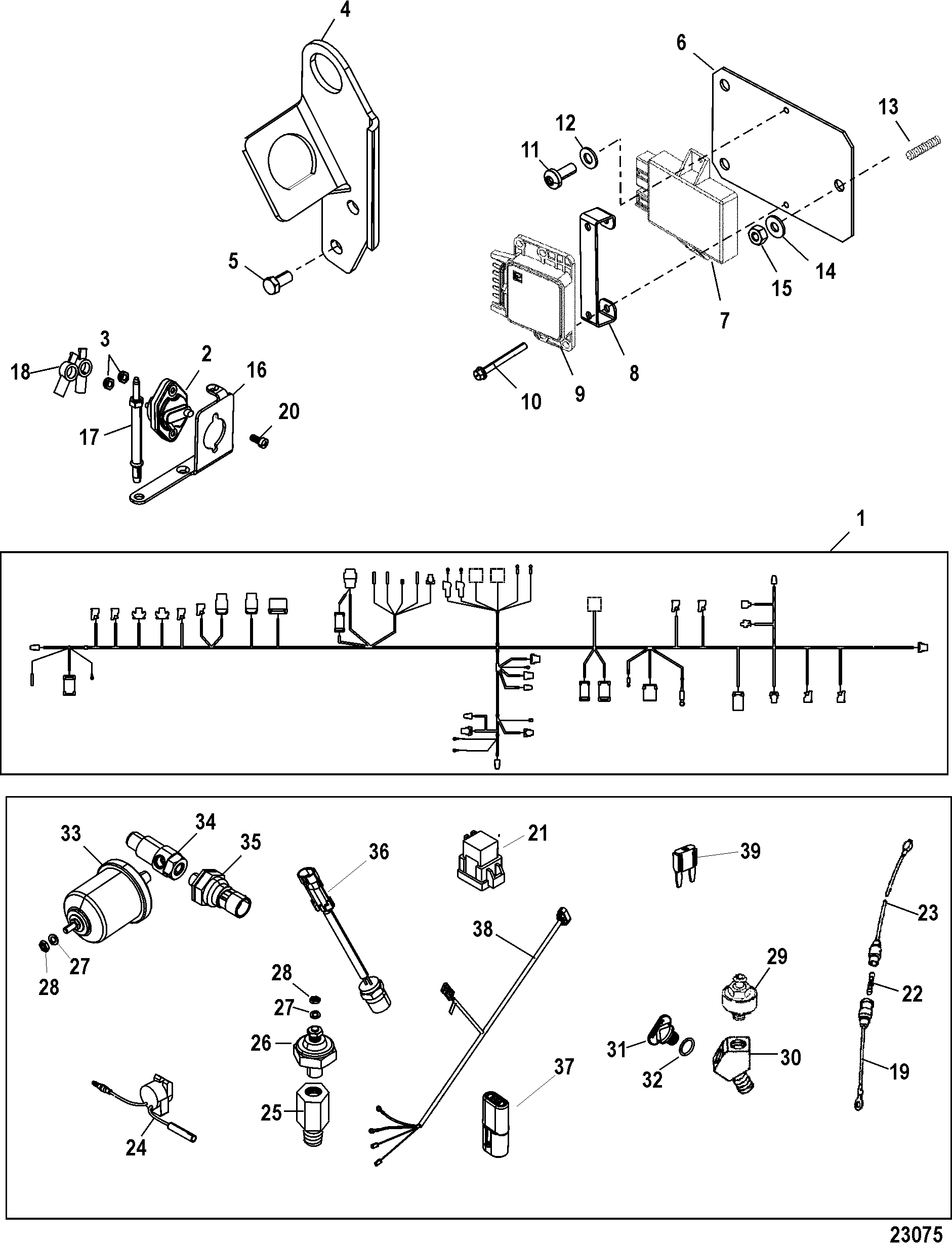

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 84-862575T05



HARNESS ASSEMBLY 1
(5.0L Bravo/5.7L Alpha and Bravo)
1 84-862163T05



HARNESS ASSEMBLY 1
(5.0L Alpha)
2 88-11178A01



BREAKER, Circuit - 50 Ampere 1 88-865827T This part is the replacement for 11178A01 however the mounting hole will need to be enlarged to make it work.
3 11-826709106



NUT, (#10-32) Stainless Steel 2

4 899719T02



BRACKET, Harness Mounting/Lifting Eye 1

5 10-98261



SCREW, (.375-16 x .750) 2

6 861516



BRACKET 1

7 861459T02



ICM MODULE, Ignition Control Module 1 861459T1 (5.0L Alpha)
7 861460T02



ICM MODULE, Ignition Control Module 1 861460T1 (5.0L Bravo)
7 861253T02



ICM MODULE, Ignition Control Module 1 861253T1 (5.7L Alpha)
7 861254T02



ICM MODULE, Ignition Control Module 1 861254T1 (5.7L Bravo)
8 861517



BRACKET 1
(5.0L Bravo)(5.7L Alpha/Bravo)
9 806611T



MODULE, Knock Control 1
(5.0L Bravo)(5.7L Alpha/Bravo)
10 10-41408



SCREW, (#10-32 x 1.50) 2
(5.0L Bravo)(5.7L Alpha/Bravo)
11 10-861520



SCREW, (#10-32 x .500) 2
(5.0 L Alpha)
12 12-89302



WASHER, (.203 x .406 x .040) 2
(5.0 L Alpha)
13 10-24323



SET SCREW, (.250-20 x 1.25) 3

14 12-35462



WASHER, (.2656 x .625 x .0625) Stainless Steel 3

15 11-64015



NUT, (.250-20) 3

16 899719T01



BRACKET 1

17 16-805459



STUD, Mercathode Mounting 1
(Bravo)
18 85-89919



BOOT, Insulator - Black 2

19 84-95084A9



CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip 1
(Bravo)
20 10-830861



SCREW, (#8-32 x .625) 2

21 882751



RELAY 1

22 88-79091



FUSE, 20 Ampere 1
(Bravo)
23 84-95084A10



CABLE ASSEMBLY, (5.00 Inches) Red 1
(Bravo)
24 816492A6



ALARM KIT 1

25 22-32974



FITTING, (.125-27) Adaptor 1

26 87-805605A1



SWITCH ASSEMBLY 1

27 13-26996



LOCKWASHER, (#10) Stainless Steel 2

28 11-68219



NUT, (#10-32) Stainless Steel 2

29 806612T



SENSOR, Knock 1

30 22-8067051



FITTING, Dual 1

31 22-806608A02



PLUG KIT, (.500-13) Royal Blue 1 22-806608A1 (5.0L Alpha)
32 25-62706



O-RING, (.426 x .070) 1
(5.0L Alpha)
33 8M0068784



SENDER ASSEMBLY 1 87-815425T
33 37293T



SENDER ASSEMBLY OPT
(Dual Station)
34 22-864669



FITTING 1

35 87-864252



SWITCH, Oil Pressure 1

36 87-866089



THERMAL SWITCH, (Normally Open 130-110 degrees), Turn Key Start 1

37 83-865913A01



DIODE ASSEMBLY 1

38 84-866727T01



HARNESS ASSEMBLY, Transom 1

39 88-83296915



FUSE, Mini - Blue - 15 Ampere 1

39 88-832969T20



FUSE, Mini - Yellow - 20 Ampere 1 88-83296920
