5.7L CARB Alpha-Bravo - Serial 0W650000 and Up - Remote Oil Filter (Accessory Kit)

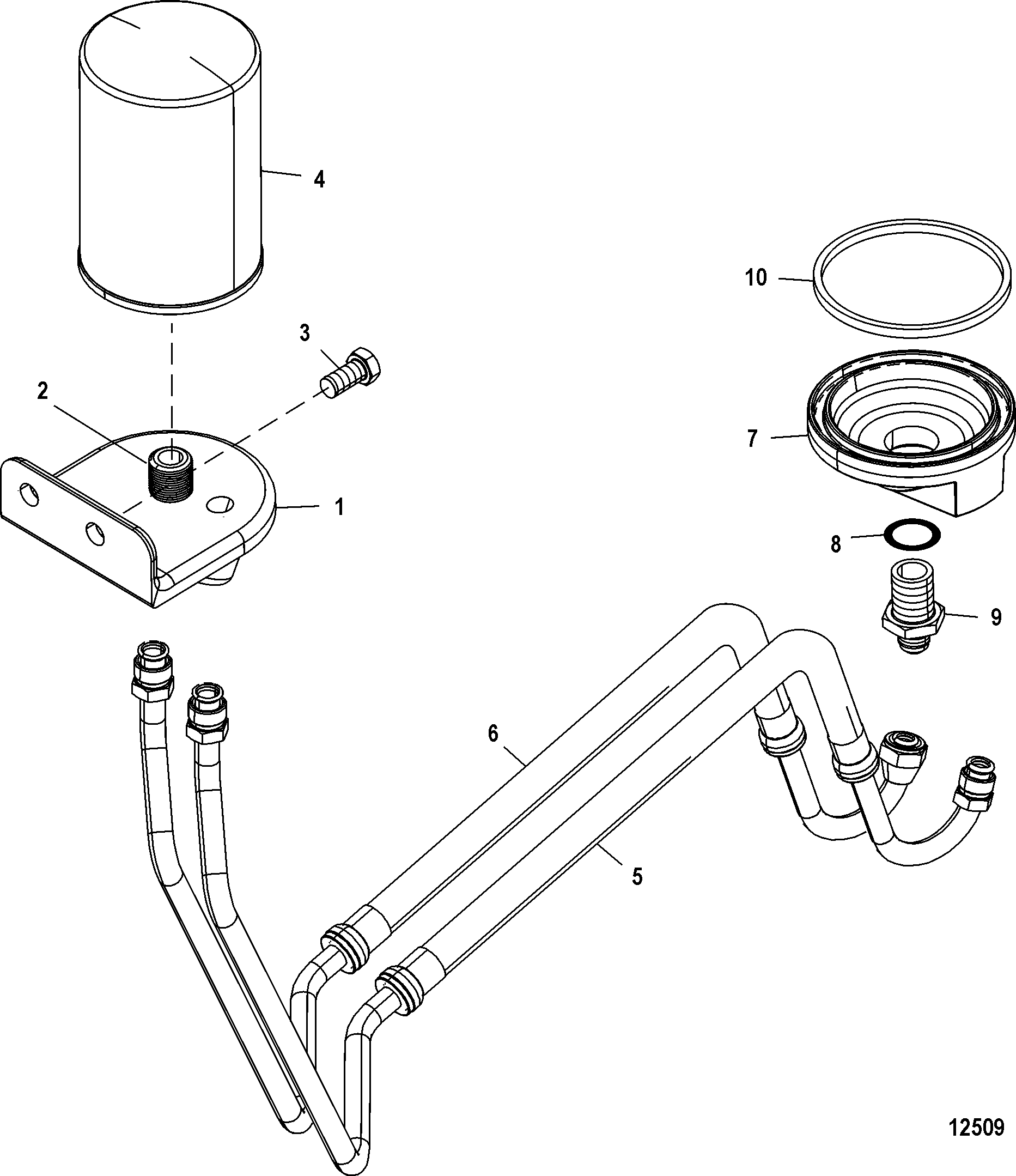

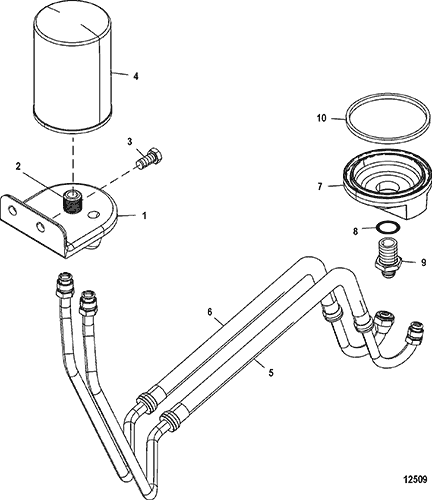

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Brackets
- Carburetor
- Carburetor and Throttle Linkage
- Cylinder Block (Flywheel Housing and Rear Main Seal)
- Cylinder Block, Camshaft and Crankshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components
- Engine Mounts
- Exhaust Manifold and Elbow
- Exhaust Risers
- Exhaust System Components
- Front Cover and Circulating Pump
- Fuel Filter and Fuel Pump
- Gasket Set Components (27-861246A05), Engine Overhaul
- Gear Lube Monitor
- Intake Manifold
- Jackshaft Components
- Mercathode Components
- Oil Pan and Oil Pump
- Pistons and Connecting Rods
- Remote Oil Filter (Accessory Kit)
- Sea Water Pump Assembly (Bravo Standard Cooling)
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System
- Standard Cooling System, Sea Pump Hoses
- Starter Motor
- Steering Components
- Thermostat and Housing
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 864990A1 | FILTER KIT, Remote Oil | 1 | ||||||
| 1 | 863732T1 | BRACKET, Oil Filter | 1 | ||||||
| 2 | 22-863485 | FITTING | 1 | ||||||
| 3 | 10-98261 | SCREW, (.375-16 x .750) | 2 | ||||||
| 4 | 35-866340Q03 | 676-9-57825 | FILTER, Oil, Quicksilver Brand | 1 | 35-802885Q | ||||
| 4 | 35-866340K01 | FILTER, Oil, Mercury Brand | 1 | 35-802885T | |||||
| 5 | 32-864924 | HOSE, Oil, To Adaptor | 1 | ||||||
| 6 | 32-864925 | HOSE, Oil, From Adaptor | 1 | ||||||
| 7 | 35-818400A1 | ADAPTOR | 1 | ||||||
| 8 | 26-42077 | SEAL | 1 | 2 | |||||
| 9 | 22-806121 | FITTING | 1 | ||||||
| 10 | 27-91892 | 700-32390 | GASKET | 1 | 2 |
