Bravo One - Serial 0F730000 Thru 0M100000 - Gimbal Housing

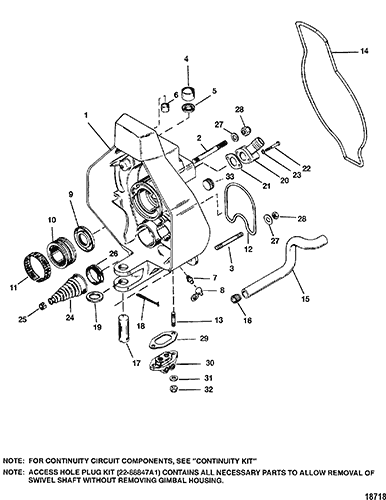

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Continuity Kit
- Driveshaft Housing And Drive Gears (Diesel Engine)
- Driveshaft Housing And Drive Gears (Gasoline Engine)
- Driveshaft Housing Chart (Bravo I Performance)
- Driveshaft Housing Chart (Diesel)
- Driveshaft Housing Chart (Gasoline With Black Trac)
- Driveshaft Housing Chart (Gasoline)
- Gear Housing (Bravo I)
- Gear Housing (Bravo II)
- Gear Housing (Bravo III)(One Piece Housing)
- Gear Housing (Bravo III)(Two Piece Housing)
- Gear Housing Chart (Bravo I Performance)
- Gear Housing Chart (Gasoline and Diesel)
- Gimbal Housing
- Gimbal Housing Chart
- Gimbal Housing Cover
- Gimbal Ring And Steering Lever
- Hydraulic Pump
- Hydraulic Pump And Bracket
- Mercathode Kit
- Oil Reservoir Components
- Power Steering
- Special Tools-Driveshaft Housing
- Special Tools-Gear Housing (Bravo I)
- Special Tools-Gear Housing (Bravo II)
- Special Tools-Gear Housing (Bravo III)
- Special Tools-Transom
- Stern Drive Unit Chart (Bravo I Performance)
- Stern Drive Unit Chart (Diesel)
- Stern Drive Unit Chart (Gasoline With Black Trac)
- Stern Drive Unit Chart (Gasoline)
- Transom Plate And Shift Cable
- Trim Cylinder Components
- Trim Cylinders And Hydraulic Hoses
- Universal Joint - Shifter Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 8M0062517 | GIMBAL HOUSING ASSEMBLY | 1 | 43881A15 | |||||
| 2 | 16-56296 | STUD, (.437-20 x 4.750) | 4 | ||||||
| 3 | 16-818834 | STUD, (.437-20 x 4.250) | 4 | ||||||
| 4 | 23-983571 | BUSHING | 1 | ||||||
| 5 | 26-8M2005029 | SEAL, Oil | 1 | 26-416071 | |||||
| 6 | 23-98356 | BUSHING | 1 | ||||||
| 7 | 22-74036 | FITTING, Grease | 1 | (With greased bearing) | |||||
| 7 | 8M2015913 | PLUG, (.250-28 x .320) | 1 | (With non-greased bearing) | |||||
| 8 | 19-77633Q | LUBRICAP | 1 | 19-77633 | |||||
| 9 | 26-88416 | SEAL, Oil | 1 | ||||||
| 10 | 879194A01 | 700-21905 |
BEARING ASSEMBLY | 1 | 30-862540A3 | ||||
| 11 | 61075 | 700-21851 |
TOLERANCE RING | 1 | |||||
| 12 | 41802 | SEAL, Rubber | 1 | ||||||
| 13 | 16-56766 | STUD, (.250-20/.250-28 x 1.380) | 2 | ||||||
| 14 | 43713 | 676-9-43713 or 676-9-72420 |
700-86711 |
SEAL | 1 | ||||
| 15 | 32-43437 | HOSE | 1 | ||||||
| 16 | 41674T | INSERT | 1 | 41674 | |||||
| 17 | 17-8M0073409 | SWIVEL PIN, Lower | 1 | 17-99353 | |||||
| 18 | 18-54929 | COTTER PIN | 1 | ||||||
| 19 | 12-32518 | WASHER | 1 | ||||||
| 20 | 22-43828T | CONNECTOR | 1 | 22-43828 | |||||
| 21 | 27-441081 | GASKET | 1 | ||||||
| 22 | 10-78038 | SCREW, (.250-20 x 1.75) | 2 | ||||||
| 23 | 13-21272 | LOCKWASHER, (.250) | 2 | ||||||
| 24 | 74639A2 | 676-9-72705 |
700-89080 |
BELLOWS, Shift Cable | 1 | 74639 | |||
| 25 | 54-866507 | 676-9-73115 | 700-21790 | CLAMP | 1 | 54-38863 | |||
| 26 | 54-815504320 | CLAMP, Worm Gear | 1 | ||||||
| 27 | 12-34567 | WASHER | 8 | ||||||
| 28 | 11-34933 | 676-9-72004 | NUT, (.437-20) Stainless Steel | 8 | |||||
| 29 | 27-988231 | GASKET | 1 | ||||||
| 30 | 8M0080805 | MANIFOLD ASSEMBLY | 1 | 98825A4 | |||||
| 31 | 13-78968 | LOCKWASHER, Internal (.250) | 2 | ||||||
| 32 | 11-8267119 | NUT, (.250-28) | 2 | 11-13438 | |||||
| 33 | 22-428611 | FITTING, Pipe - Brass (.750-14) | 1 | ||||||
| - | 22-88847A1 | PLUG KIT, Access Hole | 1 |
