Bravo One - Serial 0F730000 Thru 0M100000 - Oil Reservoir Components

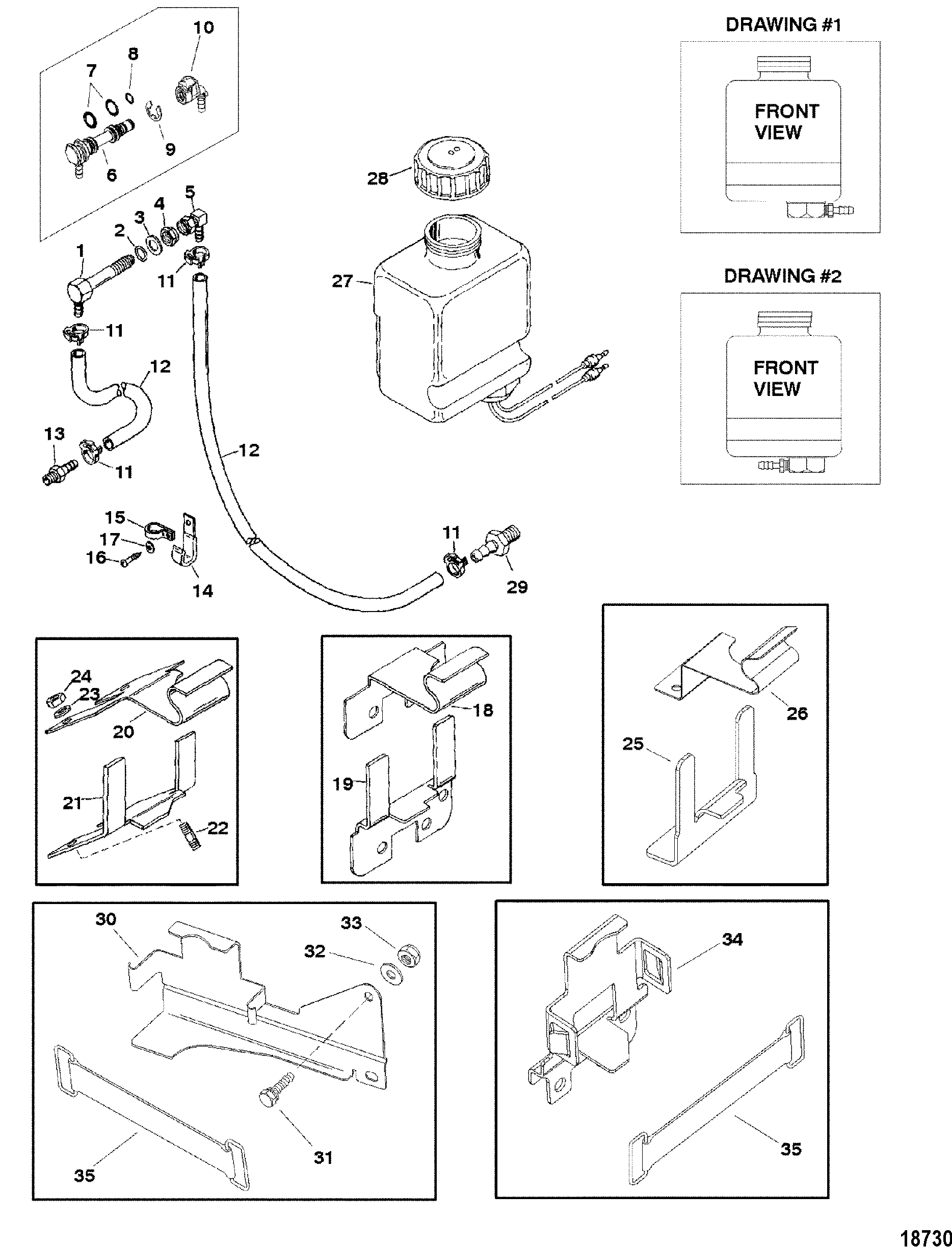

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Continuity Kit
- Driveshaft Housing And Drive Gears (Diesel Engine)
- Driveshaft Housing And Drive Gears (Gasoline Engine)
- Driveshaft Housing Chart (Bravo I Performance)
- Driveshaft Housing Chart (Diesel)
- Driveshaft Housing Chart (Gasoline With Black Trac)
- Driveshaft Housing Chart (Gasoline)
- Gear Housing (Bravo I)
- Gear Housing (Bravo II)
- Gear Housing (Bravo III)(One Piece Housing)
- Gear Housing (Bravo III)(Two Piece Housing)
- Gear Housing Chart (Bravo I Performance)
- Gear Housing Chart (Gasoline and Diesel)
- Gimbal Housing
- Gimbal Housing Chart
- Gimbal Housing Cover
- Gimbal Ring And Steering Lever
- Hydraulic Pump
- Hydraulic Pump And Bracket
- Mercathode Kit
- Oil Reservoir Components
- Power Steering
- Special Tools-Driveshaft Housing
- Special Tools-Gear Housing (Bravo I)
- Special Tools-Gear Housing (Bravo II)
- Special Tools-Gear Housing (Bravo III)
- Special Tools-Transom
- Stern Drive Unit Chart (Bravo I Performance)
- Stern Drive Unit Chart (Diesel)
- Stern Drive Unit Chart (Gasoline With Black Trac)
- Stern Drive Unit Chart (Gasoline)
- Transom Plate And Shift Cable
- Trim Cylinder Components
- Trim Cylinders And Hydraulic Hoses
- Universal Joint - Shifter Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 22-18922 | CONNECTOR | 1 | ||||||
| 2 | 25-201951 | O-RING | 1 | 20195 25-F40342 25-20195 |
|||||
| 3 | 12-861854 | WASHER | 1 | 91964 |
|||||
| 4 | 11-35053 | 90043CN-FNSS | NUT, (.437-20) | 1 | |||||
| 5 | 22-18923 | FITTING | 1 | ||||||
| 6 | 22-861150T02 | PLUG ASSEMBLY, Bulk Head | 1 | 861150A1 861150A2 |
|||||
| 7 | 25-201951 | O-RING, (.487 x .103) | 2 | 25-F40342 25-20195 |
|||||
| 8 | 25-627021 | O-RING, (.301 x .070) | 1 | ||||||
| 9 | 53-87843 | E RING | 1 | ||||||
| 10 | 22-861163 | QUICK CONNECTOR, (90 Degree) | 1 | ||||||
| 11 | 54-415825 | CLAMP, Nylon | 4 | ||||||
| 12 | 32-8M0040618 | HOSE, (54.00 Inches Bulk) | 2 | 1940971 |
|||||
| 13 | 22-16739 | CONNECTOR | 1 | ||||||
| 14 | 54-642351 | J CLIP | 1 | ||||||
| 15 | 54-23567 | CLIP | 1 | ||||||
| 16 | 10-60605 | SCREW, (#10-16 x .750) | 1 | ||||||
| 17 | 8M0084613 | C WASHER | 1 | 69205 |
|||||
| 18 | 806293T | BRACKET, Clip (3.0L/3.6L,4.2L DIESEL/7.4L/7.4LX/454/502) | 1 | No Longer Available |
|||||
| 19 | 860065A1 | BRACKET (3.0L/3.6L,4.2L DIESEL/7.4L/7.4LX/454/502) | 1 | 807024T |
|||||
| 20 | 806292T1 | BRACKET | 1 | 806292T |
|||||
| 21 | 807025T | BRACKET | 1 | ||||||
| 22 | 16-8M2004610 | STUD, (.375-16 x 2.130) | 2 | 805357 |
|||||
| 23 | 12-20553 | 700-21675 | WASHER, (.406 x .734 x .063) | 2 | 12-F8095 12-25970 12-38742 12-20553 3852058 |
||||
| 24 | 11-32219 | NUT, (.375-16) | 2 | 11-33249 11-28517 11-33267 |
|||||
| 25 | 806649T | BRACKET, 262 MAG. EFI | 1 | No Longer Available |
|||||
| 26 | 806650T | BRACKET, 5.7L/5.7LX/350 MAGNUM (EFI) 262 MAG. EFI | 1 | No Longer Available |
|||||
| 27 | 8M0075708 | RESERVOIR ASSEMBLY, Oil, Fitting Pointing Toward Right Side | 1 | 806193A3 |
|||||
| 27 | 8M0075709 | RESERVOIR, Fitting Pointing Toward Left Side | 1 | 806193A13 |
|||||
| 28 | 36-8067271 | CAP, Drive Lube Monitor, Oil Bottle | 1 | 808625 808626 |
|||||
| 29 | 22-808624 | CONNECTOR | 1 | ||||||
| 30 | 807839T1 | BRACKET (4.3LX/4.3LXH/262 MAG. EFI 7.4L/454/7.4LX EFI) | 1 | 807839T |
No Longer Available |
||||
| 31 | 10-657461 | Screw and Lockwasher (.250-20 x .625) (4.3LX/4.3LXH/262 Mag. EFI 7.4L/454/7.4LX EFI) | 1 | 16-21723 16-66357 16-39937 |
|||||
| 32 | 12-69057 | Washer, (.281 x .734 x .063) (4.3LX/4.3LXH/262 Mag. EFI 7.4L/454/7.4LX EFI) | 1 | 12-20346 | |||||
| 33 | 11-8267088 | Nut, (.250-20) (4.3LX/4.3LXH/262 Mag. EFI 7.4L/454/7.4LX EFI) | 1 | 11-72008 11-F7008 |
|||||
| 34 | 860065A1 | Oil Bottle Bracket Kit(5.7L/5.7LX/350 Magnum Carb & EFI/ 3.0L/3.6L4.2L Diesel/7.4L/7.4LX/454/502) | 1 | ||||||
| 35 | 808023T | Bracket Strap | 1 |
