Bravo One - Serial 0W250000 and Up - Special Tools-Gear Housing (BRAVO TWO)

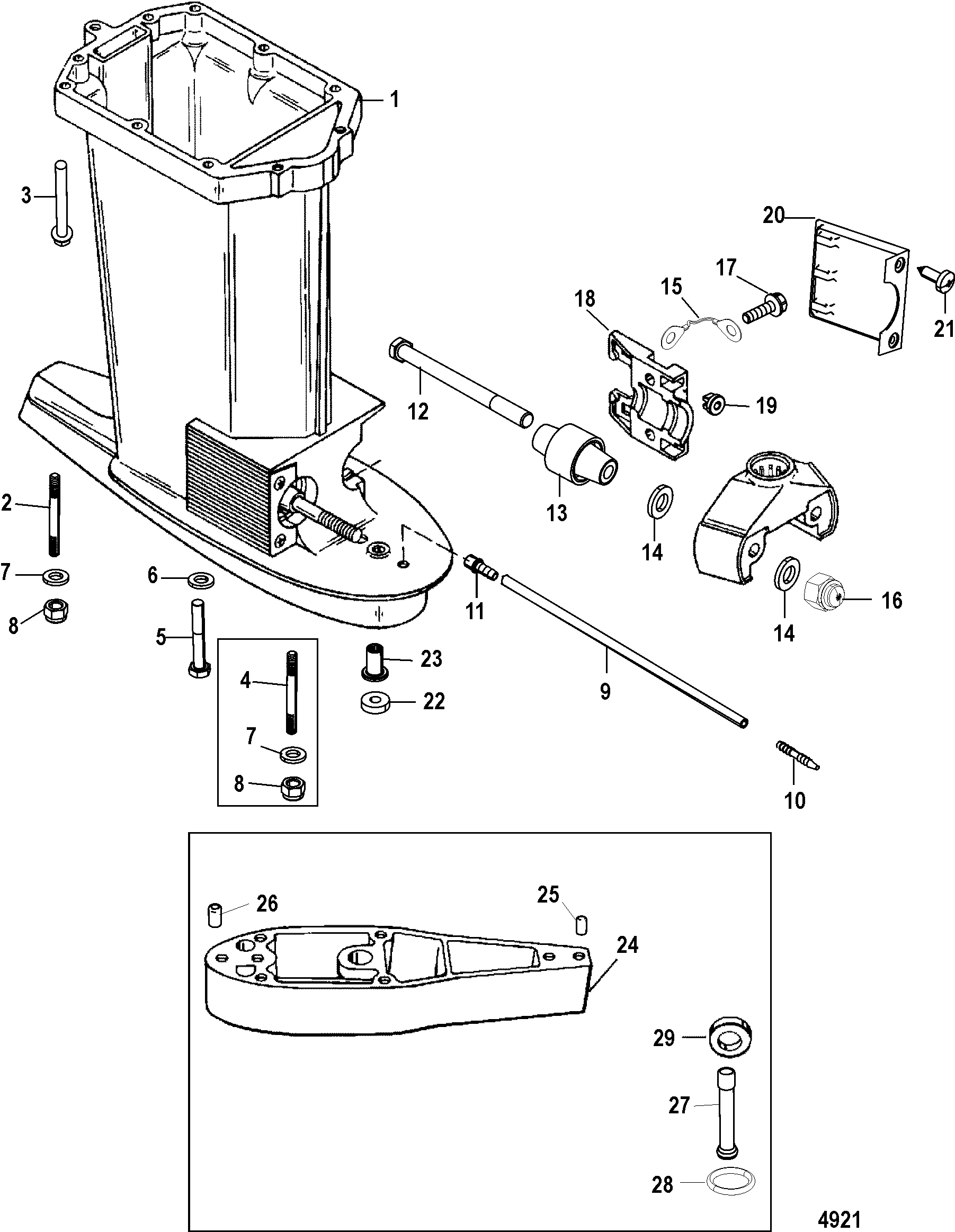

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Compact Hydralic Steering Actuator
- Continuity Kit
- Driveshaft Housing and Drive Gears
- Gear Housing (Brave One)
- Gear Housing (Bravo Three)
- Gear Housing (Bravo Two)
- Gear Lube Monitor Components
- Gimbal Housing
- Gimbal Housing Cover
- Gimbal Ring and Steering Lever
- Gimbal Ring and Steering Lever, AXIUS Gen I
- Mercathode Kit
- Power Steering Actuator
- Special Tools-Driveshaft Housing
- Special Tools-Gear Housing (BRAVO ONE)
- Special Tools-Gear Housing (BRAVO THREE)
- Special Tools-Gear Housing (BRAVO TWO)
- Special Tools-Transom
- Steering Actuator, Axius (Gen I), Sensors Screw In
- Steering Actuator, Axius (Gen I), Sensors w- E-Clip-End Cap
- Steering Actuator, Axius (Gen II)
- Sterndrive Unit Chart, BRAVO I-II-III (Standard)
- Transom Assembly Chart
- Transom Plate and Shift Cable
- Trim Cylinder Components
- Trim Cylinders and Hydraulic Hoses (Standard Transoms)
- Trim Pump and Motor Components
- Trim Pump Assembly (Complete)
- Universal Joint and Shift Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 91-89867T | DRIVER TOOL, Bearing | 1 | ||||||
| - | 91-813653T | DRIVER, Bearing | 1 | ||||||
| - | 91-636381 | DRIVER TOOL, Bearing | 1 | 91-63638T | |||||
| - | 91-67443T | DRIVER TOOL, Cup | 1 | ||||||
| - | 91-55916 | DRIVER | 1 | ||||||
| - | 91-55918 | DRIVER | 1 | ||||||
| - | 91-55919 | SLEEVE | 1 | ||||||
| - | 91-63619T | DRIVER | 1 | ||||||
| - | 91-63626 | DRIVER | 1 | ||||||
| - | 91-68891T | DRIVER | 1 | ||||||
| - | 91-61077T | ADAPTOR TOOL, Driveshaft | 1 | ||||||
| - | 91-37323 | DRIVER ROD TOOL, Needle Bearings | 1 | ||||||
| - | 91-31229 | SHAFT | 1 | ||||||
| - | 91-37241 | 700-90150 | PULLER PLATE | 1 |
