Bravo Two - Serial 0F730000 Thru 0M100000 - Gear Housing Chart (Gasoline and Diesel)

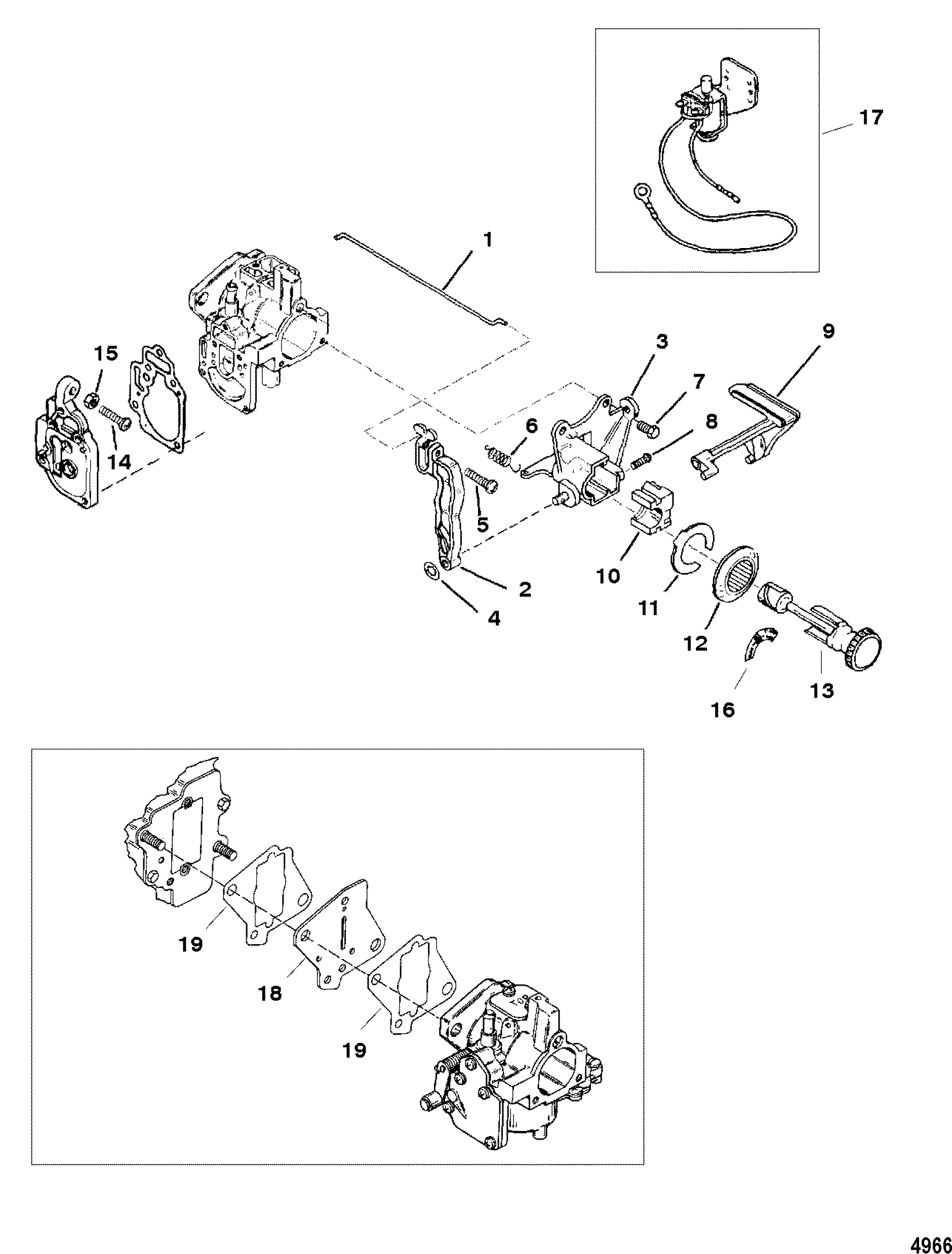

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Continuity Kit
- Driveshaft Housing And Drive Gears (Diesel Engine)
- Driveshaft Housing And Drive Gears (Gasoline Engine)
- Driveshaft Housing Chart (Bravo I Performance)
- Driveshaft Housing Chart (Diesel)
- Driveshaft Housing Chart (Gasoline With Black Trac)
- Driveshaft Housing Chart (Gasoline)
- Gear Housing (Bravo I)
- Gear Housing (Bravo II)
- Gear Housing (Bravo III)(One Piece Housing)
- Gear Housing (Bravo III)(Two Piece Housing)
- Gear Housing Chart (Bravo I Performance)
- Gear Housing Chart (Gasoline and Diesel)
- Gimbal Housing
- Gimbal Housing Chart
- Gimbal Housing Cover
- Gimbal Ring And Steering Lever
- Hydraulic Pump
- Hydraulic Pump And Bracket
- Mercathode Kit
- Oil Reservoir Components
- Power Steering
- Special Tools-Driveshaft Housing
- Special Tools-Gear Housing (Bravo I)
- Special Tools-Gear Housing (Bravo II)
- Special Tools-Gear Housing (Bravo III)
- Special Tools-Transom
- Stern Drive Unit Chart (Bravo I Performance)
- Stern Drive Unit Chart (Diesel)
- Stern Drive Unit Chart (Gasoline With Black Trac)
- Stern Drive Unit Chart (Gasoline)
- Transom Plate And Shift Cable
- Trim Cylinder Components
- Trim Cylinders And Hydraulic Hoses
- Universal Joint - Shifter Components
| Note: FOR REPLACEMENT OF GEAR HOUSING ASSEMBLY, COMPLETE | |||||||||
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 1656-8866A63 | GEAR HOUSING ASSEMBLY | 1 | 1656-8866A15 | (BRAVO I) | ||||
| - | 1641-8294A19 | GEAR HOUSING ASSEMBLY (1.50:1 - 1.65:1 Ratio) | 1 | (BRAVO II) | |||||
| - | 1641-8294A16 | GEAR HOUSING ASSEMBLY (1.81:1 - 2.00:1 - 2.20:1 Ratio) | 1 | (BRAVO II) | |||||
| - | 1656-8866G02 | GEAR HOUSING ASSEMBLY (1.36:1 - 1.50:1 Ratio) | 1 | 1656-8866A37 | (15/19/19 TEETH BRAVO III) | ||||
| - | 1656-8866G08 | GEAR HOUSING ASSEMBLY (1.65:1 Ratio) | 1 | 1656-8866A36 | (18/25/25 TEETH BRAVO III) | ||||
| - | 1656-8866G09 | GEAR HOUSING ASSEMBLY (1.81:1 - 2.00:1 - 2.20:1 Ratio) | 1 | 1656-8866A35 | (16/27/27 TEETH BRAVO III) | ||||
| - | 1656-8866G10 | GEAR HOUSING ASSEMBLY (2.43:1 Ratio) | 1 | 1656-8866A51 | 13/24/24 TEETH BRAVO III | ||||
