Bravo Two - Serial 0F730000 Thru 0M100000 - Special Tools-Gear Housing (Bravo III)

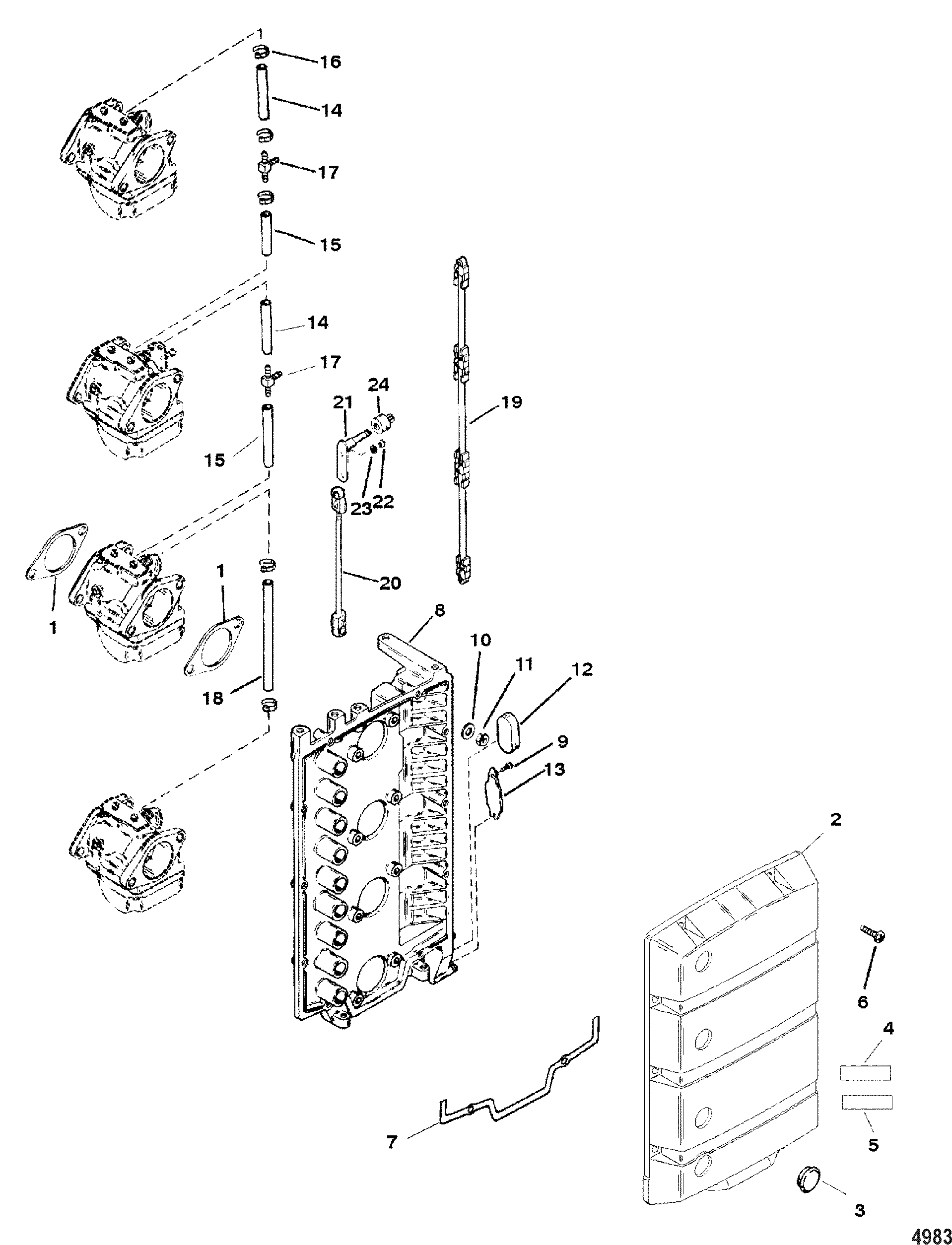

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Continuity Kit
- Driveshaft Housing And Drive Gears (Diesel Engine)
- Driveshaft Housing And Drive Gears (Gasoline Engine)
- Driveshaft Housing Chart (Bravo I Performance)
- Driveshaft Housing Chart (Diesel)
- Driveshaft Housing Chart (Gasoline With Black Trac)
- Driveshaft Housing Chart (Gasoline)
- Gear Housing (Bravo I)
- Gear Housing (Bravo II)
- Gear Housing (Bravo III)(One Piece Housing)
- Gear Housing (Bravo III)(Two Piece Housing)
- Gear Housing Chart (Bravo I Performance)
- Gear Housing Chart (Gasoline and Diesel)
- Gimbal Housing
- Gimbal Housing Chart
- Gimbal Housing Cover
- Gimbal Ring And Steering Lever
- Hydraulic Pump
- Hydraulic Pump And Bracket
- Mercathode Kit
- Oil Reservoir Components
- Power Steering
- Special Tools-Driveshaft Housing
- Special Tools-Gear Housing (Bravo I)
- Special Tools-Gear Housing (Bravo II)
- Special Tools-Gear Housing (Bravo III)
- Special Tools-Transom
- Stern Drive Unit Chart (Bravo I Performance)
- Stern Drive Unit Chart (Diesel)
- Stern Drive Unit Chart (Gasoline With Black Trac)
- Stern Drive Unit Chart (Gasoline)
- Transom Plate And Shift Cable
- Trim Cylinder Components
- Trim Cylinders And Hydraulic Hoses
- Universal Joint - Shifter Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 91-805481 | ROD TOOL, Backlash Indicator | 1 | (INNER PROPSHAFT) | |||||
| - | 91-805482 | ROD TOOL, Backlash Indicator | 1 | (OUTER PROPSHAFT) | |||||
| - | 91-805356 | INSTALLATION TOOL, Bearing | 1 | ||||||
| - | 91-8053741 | INSTALLATION TOOL, Bearing | 1 | ||||||
| - | 91-805372 | INSTALLATION TOOL, Bearing | 1 | ||||||
| - | 91-805374 | INSTALLATION TOOL, Bearing | 1 | ||||||
| - | 91-805352T | INSTALLATION TOOL, Bearing | 1 | (OUTER PROPSHAFT) | |||||
| - | 91-805382T | INSTALLATION TOOL, Bearing | 1 | (OUTER PROPSHAFT) | |||||
| - | 91-67443T | DRIVER TOOL, Cup | 1 | ||||||
| - | 91-813653T | DRIVER, Bearing | 1 | ||||||
| - | 91-43559T | CLAMP PLATE TOOL | 1 | ||||||
| - | 91-67443T | DRIVER TOOL, Cup | 1 | ||||||
| - | 91-58222A1 | DIAL INDICATOR TOOL | 1 | ||||||
| - | 91-61077T | ADAPTOR TOOL, Driveshaft | 1 | ||||||
| - | 91-636381 | DRIVER TOOL, Bearing | 1 | 91-63638T | |||||
| - | 91-805381 | RETAINING TOOL, Driveshaft | 1 | ||||||
| - | 91-805470 | DRIVER GUIDE | 1 | ||||||
| - | 91-37323 | DRIVER ROD TOOL, Needle Bearings | 1 | ||||||
| - | 91-805454 | HANDLE TOOL | 1 | (FRONT BEARING RACE) | |||||
| - | 91-31106T | MANDREL, Bearing Driver Cup | 1 | ||||||
| - | 91-805457T1 | INSTALLATION TOOL, Prop Nut | 1 | ||||||
| - | 91-805358T | INSTALLATION TOOL, Seal | 1 | (OUTER PROPSHAFT) | |||||
| - | 91-805462T | SHIMMING TOOL | 1 | ||||||
| - | 91-34569A1 | PULLER ASSEMBLY, Slide Hammer | 1 | ||||||
| - | 91-66274 | TORQUE WRENCH, (0-150 lb-in) | 1 | (INCH POUND) | |||||
| - | 91-37241 | 700-90150 | PULLER PLATE | 1 |
