Bravo X One - Serial 0W250000 and Up - Universal Joint and Shift Components

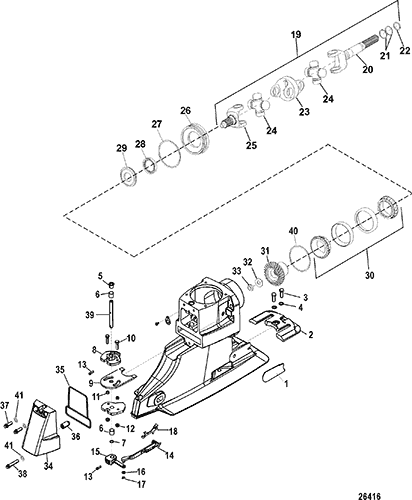

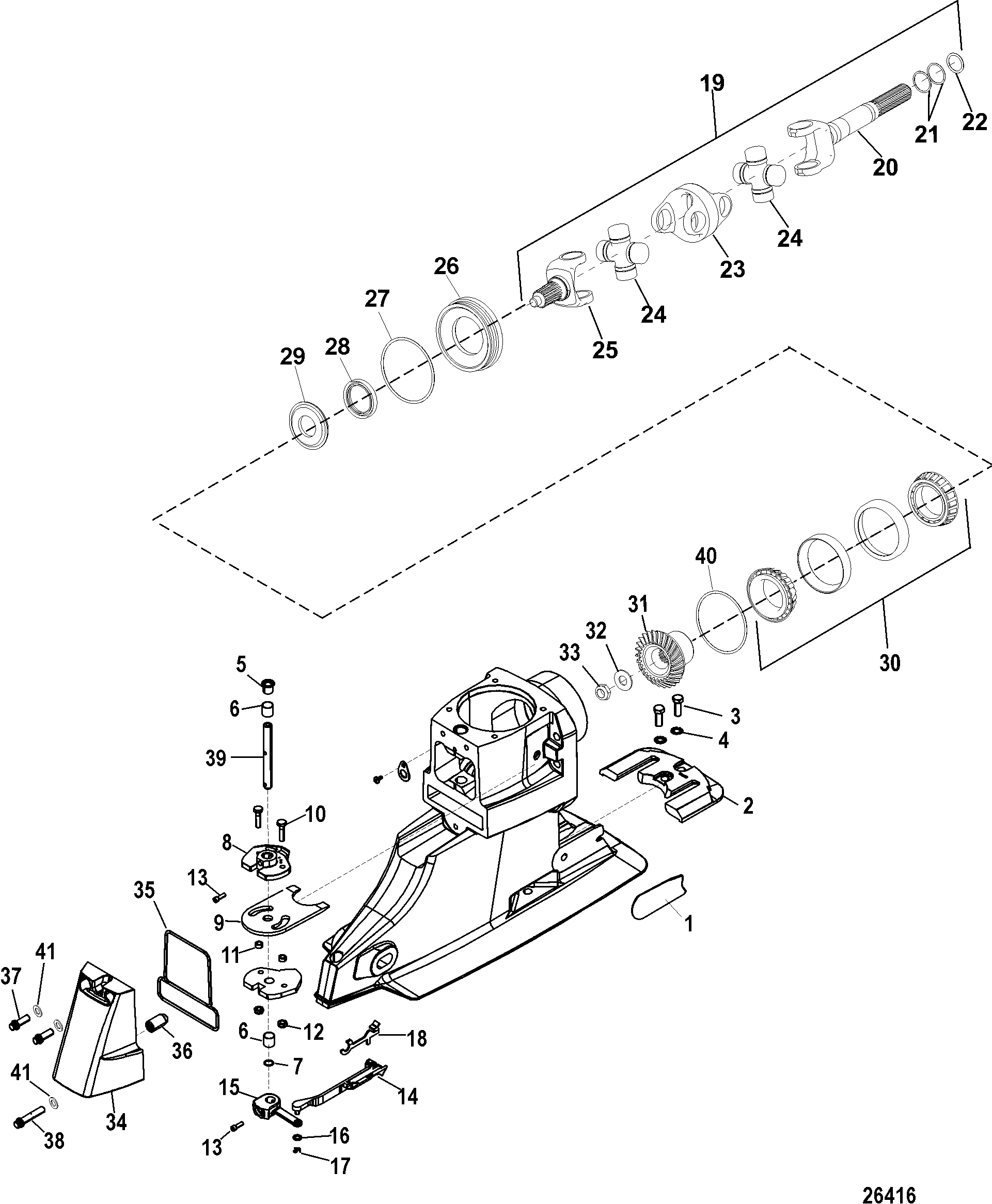

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
NS 1589-865440H66



HOUSING ASSEMBLY, Driveshaft - Complete 1
(Bravo-I 1.36:1 Ratio)(Bravo-II 1.50:1 and 1.81:1 Ratio)(Bravo-III 1.36:1 and 1.81:1 Ratio)
NS 1500-866459J01



HOUSING ASSEMBLY, Driveshaft - Complete 1
(SEACORE)(Bravo-I 1.36:1 Ratio)(Bravo-II 1.50:1 and 1.81:1 Ratio)(Bravo-III 1.36:1 and 1.81:1 Ratio)
NS 1589-865440H67



HOUSING ASSEMBLY, Driveshaft - Complete 1
(Bravo-I 1.50:1 Ratio)(Bravo-II 1.65:1 and 2.0:1 Ratio)
NS 1500-866459J02



HOUSING ASSEMBLY, Driveshaft - Complete 1
(SEACORE)(Bravo-I 1.50:1 Ratio)(Bravo-II 1.65:1 and 2.0:1 Ratio)
NS 1589-865440H68



HOUSING ASSEMBLY, Driveshaft - Complete 1
(Bravo-I 1.65:1 Ratio)(Bravo-II 2.20:1 Ratio)(Bravo-III 2.20:1 and 2.43:1 Ratio)
NS 1500-866459J03



HOUSING ASSEMBLY, Driveshaft - Complete 1
(SEACORE)(Bravo-I 1.65:1 Ratio)(Bravo-II 2.20:1 Ratio)(Bravo-III 2.20:1 and 2.43:1 Ratio)
- 1589-865440H70



HOUSING, Driveshaft - Basic, Basic 1

- 1500-866459J00



HOUSING, Driveshaft - Basic 1

1 805261A1


525-805261A1 WEAR PAD KIT 1

2 821630Q1

700-12712 525-821630Q1 ANODE ASSEMBLY 1

3 10-65210


525-10-65210 SCREW, (.375-16 x 1.00) 2

4 13-35479


525-13-35479 LOCKWASHER, (.375) 2

5 19-865866



PLUG, Shift Shaft Oil Seal 1

6 23-861209A1

700-87563 525-23-861209A1 BUSHING KIT 1

7 26-127091


525-26-127091 SEAL 1

8 806552A1


525-806552A1 YOKE AND CAM ASSEMBLY 1

9 806552


525-806552 YOKE, Shifter 1

10 10-805733



SCREW, (.250-28 x 1.00) 2

11 23-12706


525-23-12706 SPACER, (.194 x .375) 2

12 11-8267139



NUT, (.250-28) 2

13 10-865900



SCREW, (.250-28 x .930) 2 10-865712
14 861175A2


525-861175A2 SHIFT LINKAGE ASSEMBLY, High Bump Shift Lever 1

15 NSS



NOT SOLD SEPARATE, Shift Lever 1
This Part is not sold separately
16 12-20583


525-12-20583 WASHER 1

17 18-26953


525-18-26953 COTTER PIN 1

18 86776


525-86776 LATCH 1

19 865425A03


525-865425A03 UNIVERSAL JOINT ASSEMBLY 1

20 866133A01



YOKE, Splined, Coupler End 1

21 25-29845


525-25-29845 O-RING, (.924 x .103) 2
17
22 25-35027
676-9-76507 700-81180 525-25-35027 O-RING, (1.046) 1
17
23 866137T



SOCKET, Center, Center 1

24 866136A01



CROSS AND BEARING 2

25 866134T



YOKE, Gear End 1

26 11-862118A2



RETAINER/SEAL KIT 1

27 25-861844


525-25-861844 O-RING 1

28 26-807006

700-86730 525-26-807006 SEAL, Oil 1

29 12-862134


525-12-862134 WASHER 1

30 31-86763A04


525-31-86763A04 BEARING ASSEMBLY, Tapered Roller 1

31 43-887906A1


525-43-887906A1 GEAR SET, (29/27) 1

31 43-887903A1


525-43-887903A1 GEAR SET, (32/27) 1

31 43-887909A1



GEAR SET, (30/23) 1

32 12-44539



WASHER 1

33 11-22339

700-28360 525-11-22339 NUT, (.625-18) 1 11-97522
34 865441A02



COVER ASSEMBLY, Back 1

34 866463A02



COVER ASSEMBLY 1
(SEACORE)
35 12708



SEAL 1
17
36 865711A02


525-865711A02 DETENT ASSEMBLY 1 14497A2
37 10-98794
676-9-78129 700-28300 525-10-98794 SCREW, (.375-16 x 1.00) 2
38 10-87158



SCREW, (.375-16 x 1.875) 1

39 12711

700-21418 525-12711 SHAFT 1
40 15-888927028


525-15-888927028 SHIM, (.028) AR
40 15-888927029


525-15-888927029 SHIM, (.029) AR
40 15-888927030


525-15-888927030 SHIM, (.030) AR
40 15-888927031


525-15-888927031 SHIM, (.031) AR
40 15-888927032


525-15-888927032 SHIM, (.032) AR
40 15-888927033


525-15-888927033 SHIM, (.033) AR
40 15-888927034


525-15-888927034 SHIM, (.034) AR
40 15-888927035


525-15-888927035 SHIM, (.035) AR
40 15-888927036


525-15-888927036 SHIM, (.036) AR
40 15-888927037


525-15-888927037 SHIM, (.037) AR
40 15-888927038


525-15-888927038 SHIM, (.038) AR
40 15-888927039


525-15-888927039 SHIM, (.039) AR
40 15-888927040


525-15-888927040 SHIM, (.040) AR
41 12-37828


525-12-37828 WASHER, (.390 x .625 x .062) Stainless Steel 3
- 26-16709A2

700-87480 525-26-16709A2 SEAL KIT, Driveshaft Housing 1
