NXT1 Drive - Serial 0M954569 and Up - Gear Housing Assembly

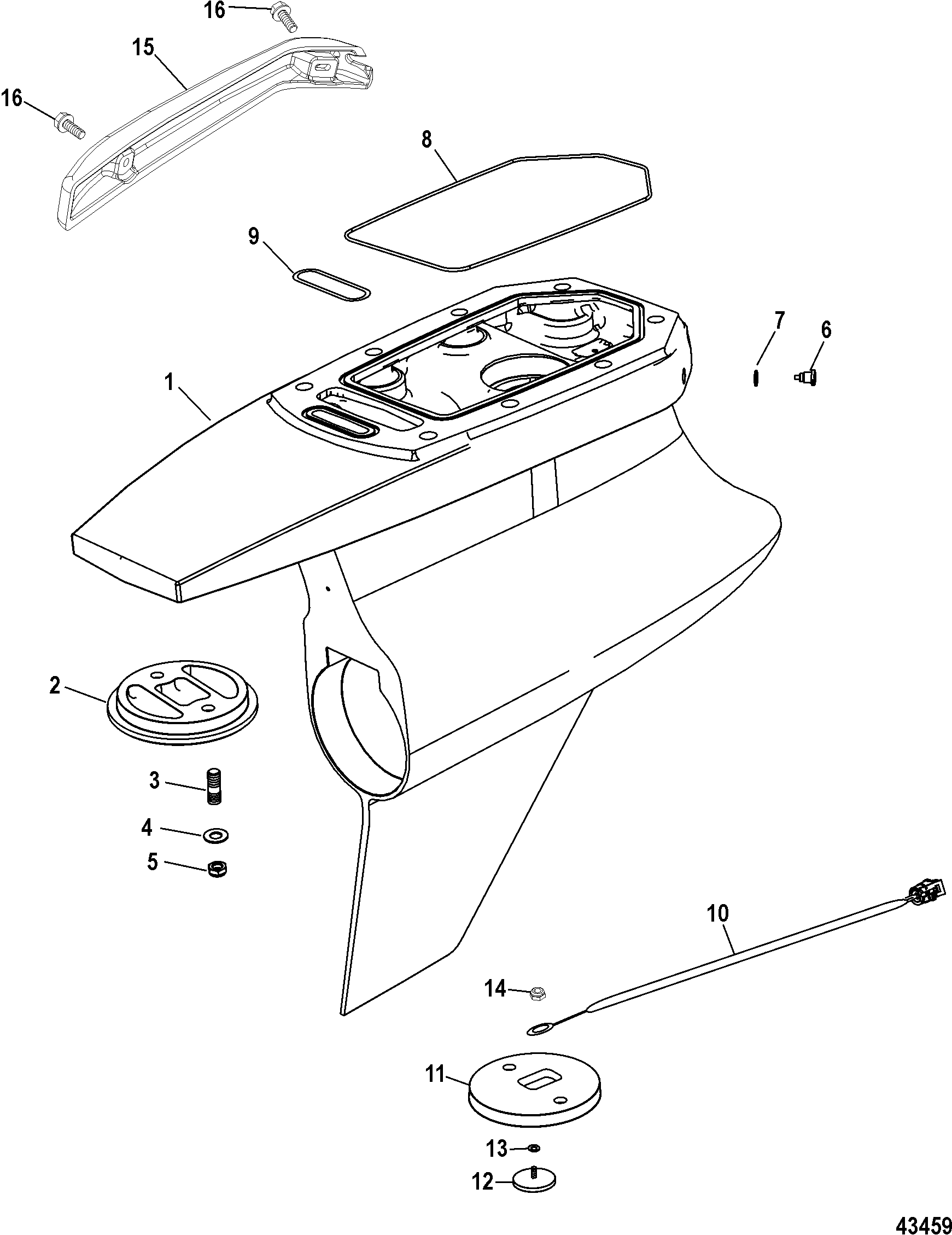

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing Assembly
- Connector Blocks And Hydraulic Hoses
- Drive Spacer Kit
- Driveline Kit (NXT1)
- Driveline-NXT
- Gear Housing Assembly
- Gear Housing Assembly (Driveshaft)
- Gear Housing Assembly (Propshaft)
- Gimbal Ring Components
- Mercathode
- Outer Transom Assembly
- Steering Cylinder Components
- Steering Indicator Kit
- Support Housing(Driveline)
- Tool List (NXT1 Drive - Lower)
- Tool List (NXT1 Drive - Transom)
- Tool List (NXT1 Drive - Upper)
- Trim And Steering Cylinders
- Trim Cylinder Components
- Trim Pump Assembly
- U Joint Assembly
- Upper Housing Assembly
| Note 1: Propshaft Centerline To Bottom Of Skeg 11.00 Inches Note 2: Water Pickup Assembly Required. Order Individually Per Application. Note 3: Do Not Inter Mix Skeg Models On Dual Engine Applications. |
|||||||||
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 1600-842992T04 | GEAR HOUSING ASSEMBLY, Complete - Standard Skeg | 1 | This Part is No Longer Available NOTE 1, NOTE 2, NOTE 3 |
|||||
| - | 1600-8M0046173 | GEAR HOUSING ASSEMBLY, Complete - Standard Skeg-Anodized | 1 | NOTE 1, NOTE 2, NOTE 3 | |||||
| - | 1600-842992T05 | GEAR HOUSING ASSEMBLY, Complete - X Long Skeg | 1 | NOTE 1, NOTE 2, NOTE 3 | |||||
| - | 1600-8M8023416 | GEAR HOUSING ASSEMBLY, Complete - Cambered Skeg | 1 | NOTE 1, NOTE 2, NOTE 3 | |||||
| 1 | 1600-842992T02 | GEAR HOUSING ASSEMBLY, Basic - Standard Skeg | 1 | NOTE 1, NOTE 2, NOTE 3 4 | |||||
| 1 | 1600-8M0046174 | GEAR HOUSING ASSEMBLY, Basic - Standard Skeg-Anodized | 1 | 3 | |||||
| 1 | 1600-842992T06 | GEAR HOUSING ASSEMBLY, Basic - X Long Skeg | 1 | NOTE 1, NOTE 2, NOTE 3 4 | |||||
| 1 | 1600-8M8023418 | GEAR HOUSING ASSEMBLY, Basic - Cambered Skeg | 1 | NOTE 1, NOTE 2, NOTE 3 4 | |||||
| 2 | 847635001 | ANODE | 1 | 4 | |||||
| 3 | 8M0034448 | STUD, (.375-16/.375-24 x 1.13) | 2 | 16-8M0000192 | 3,4 | ||||
| 4 | 12-841388 | WASHER, (.410 x .810 x .050) Stainless Steel | 2 | 3,4 | |||||
| 5 | 11-826709113 | NUT, (.375-24) Stainless Steel | 2 | 3,4 | |||||
| 6 | 22-8M0058389 | PLUG KIT, Drain - Magnetic | 1 | 22-67892A06 | 3,4 | ||||
| 7 | 26-830749 | SEAL | 1 | 3,4 | |||||
| 8 | 25-8M0001554 | O-RING, (Special x .103) | 1 | 3,4 | |||||
| 9 | 25-822370 | O-RING, (2.362 x .103) | 1 | 3,4 | |||||
| 10 | 8M0041213 | ACTIVE ANODE ASSEMBLY | 1 | 3 | |||||
| 11 | NSS | NOT SOLD SEPARATE, Anode Housing | 1 | This Part is not sold separately 3 | |||||
| 12 | 8M0021534 | ANODE, Ceramic | 1 | 3 | |||||
| 13 | 12-98572 | WASHER | 1 | 3 | |||||
| 14 | 11-401386 | NUT, (M6) Stainless Steel | 1 | 3 | |||||
| 15 | 8M8027307 | ANODE | 1 | 8M0038238 | 3 | ||||
| 16 | 10-8M0038440 | SCREW, (.25-28X.875) | 2 | 3 | |||||
