NXT1 Drive - Serial 0M954569 and Up - Tool List (NXT1 Drive - Transom)

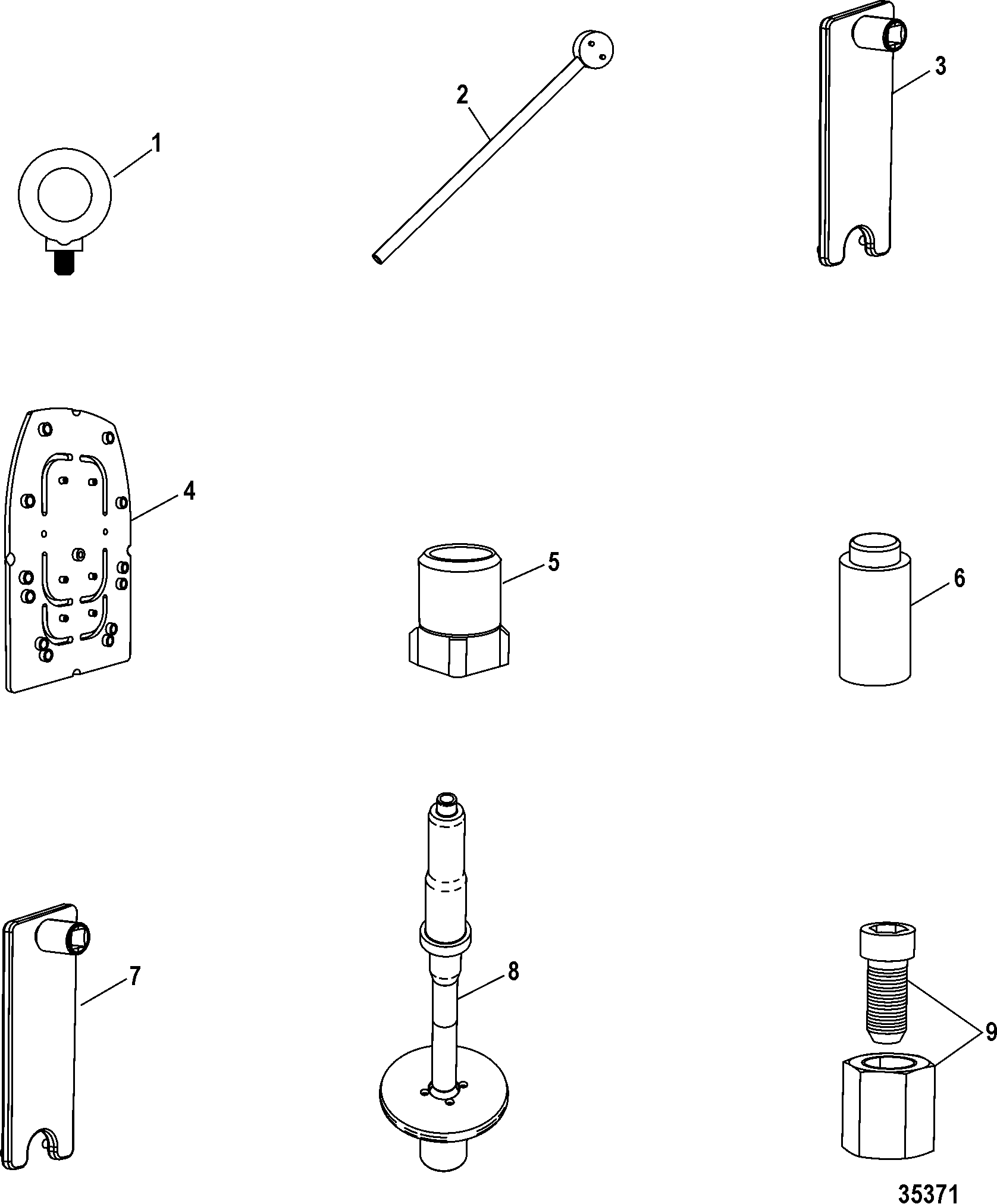

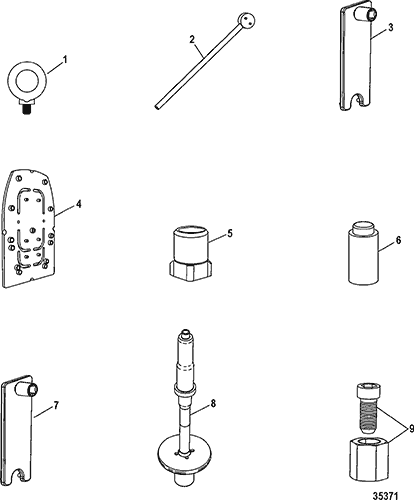

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing Assembly
- Connector Blocks And Hydraulic Hoses
- Drive Spacer Kit
- Driveline Kit (NXT1)
- Driveline-NXT
- Gear Housing Assembly
- Gear Housing Assembly (Driveshaft)
- Gear Housing Assembly (Propshaft)
- Gimbal Ring Components
- Mercathode
- Outer Transom Assembly
- Steering Cylinder Components
- Steering Indicator Kit
- Support Housing(Driveline)
- Tool List (NXT1 Drive - Lower)
- Tool List (NXT1 Drive - Transom)
- Tool List (NXT1 Drive - Upper)
- Trim And Steering Cylinders
- Trim Cylinder Components
- Trim Pump Assembly
- U Joint Assembly
- Upper Housing Assembly
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 846682 | EYE BOLT | 1 | ||||||
| 2 | 8M0050921 | SPANNER WRENCH TOOL, Gimbal Ring | 1 | 91-847457 | |||||
| 3 | 8M0050782 | SPANNER WRENCH TOOL, Steering Cylinder End Cap | 1 | 91-847458 | |||||
| 4 | 91-899728T | DRILLING FIXTURE, Transom | 1 | ||||||
| 5 | 91-43579 | INSERT TOOL, Tapered | 1 | ||||||
| 6 | 8M0053741 | INSTALLER TOOL, Flanged Bushing | 1 | 91-847447 | |||||
| 7 | 8M0050762 | SPANNER WRENCH TOOL, Trim Cylinder End Cap | 1 | 91-847459 | |||||
| 8 | 91-899898T05 | ALIGNMENT TOOL, Engine, Close Couple | 1 | ||||||
| 9 | 91-847442A01 | REMOVAL TOOL, Pivot Pin, Use With Slide hammer | 1 |
