500 EFI - Serial 0L001496 Thru 0L306499 - Sea Water Pump Assembly

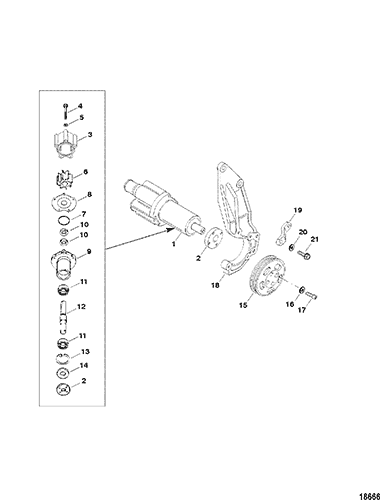

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Circulating Water Pump And Front Cover
- Crankshaft And Piston Assembly
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Bravo)
- Electrical Components
- Exhaust Header And Tailpipe Assembly
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)
- Fuel Pump And Fuel Cooler
- Fuel Rails And Injectors
- Harness Assembly-EFI Wiring
- Intake Manifold And Intake Plenum
- Mount Plate-Engine
- Oil Cooler And Oil Filter (Engine)
- Oil Pan And Oil Pump
- Oil Reservoir Bottle
- Power-Assisted Steering Components
- Pump-Motor (Bottom Mt Reservoir) (Design I - 14336A8)
- Pump-Motor (Top Mt Reservoir) (Design I - 14336A20)
- Pump-Motor (Top Mt Reservoir) (Design II - 14336A25)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket (Bravo)
- Starter And Alternator Mount
- Starter Assembly (50-8M8021116)
- Thermostat Housing
- Trim Pump Assembly
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 46-807151A22 | PUMP ASSEMBLY, Sea Water | 1 | ||||||
| 2 | 47530 | HUB, Sea Water Pump Pulley | 1 | ||||||
| 3 | 46-807151A14 | BODY/IMPELLER KIT, Sea Water Pump | 1 | ||||||
| 4 | 10-807356 | SCREW, (.312-18 x 2.680) | 2 | ||||||
| 4 | 10-74822 | SCREW, (.312-18 x 3.500) | 3 | ||||||
| 5 | 12-814806 | 700-21662 | WASHER, (.344 x .688 x .065) Stainless Steel | 5 | |||||
| 6 | 47-59362T1 | 625-4011 | 676-9-45375 | 700-89740 | IMPELLER | 1 | |||
| 7 | 25-94288 | QUAD RING | 1 | ||||||
| 8 | 94576 | WEAR PLATE | 1 | ||||||
| 9 | 46-94913T2 | HOUSING, Sea Water Pump | 1 | ||||||
| 10 | 26-90562 | 676-9-76107 | 700-85080 | SEAL, (1.254 x .312) | 2 | ||||
| 11 | 30-72961 | BEARING, Ball | 2 | ||||||
| 12 | 59501A1 | SHAFT | 1 | ||||||
| 13 | 53-23720 | RING, Retaining | 1 | ||||||
| 14 | 26-72785 | SEAL | 1 | ||||||
| 15 | 899743T | PULLEY, Blue | 1 | 849046T | |||||
| 16 | 12-70132 | WASHER, (.323 x .563 x .063) Stainless Steel | 4 | ||||||
| 17 | 10-849377 | SCREW, (.312-24 x .750) Stainless Steel | 4 | ||||||
| 18 | 818368T1 | BRACKET, Sea Water Pump | 1 | ||||||
| 19 | 849981 | BRACKET, Sea Water Pump | 1 | ||||||
| 20 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 1 | ||||||
| 21 | 10-805559 | SCREW, (.375-16 x .875) Stainless Steel | 1 |
