| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

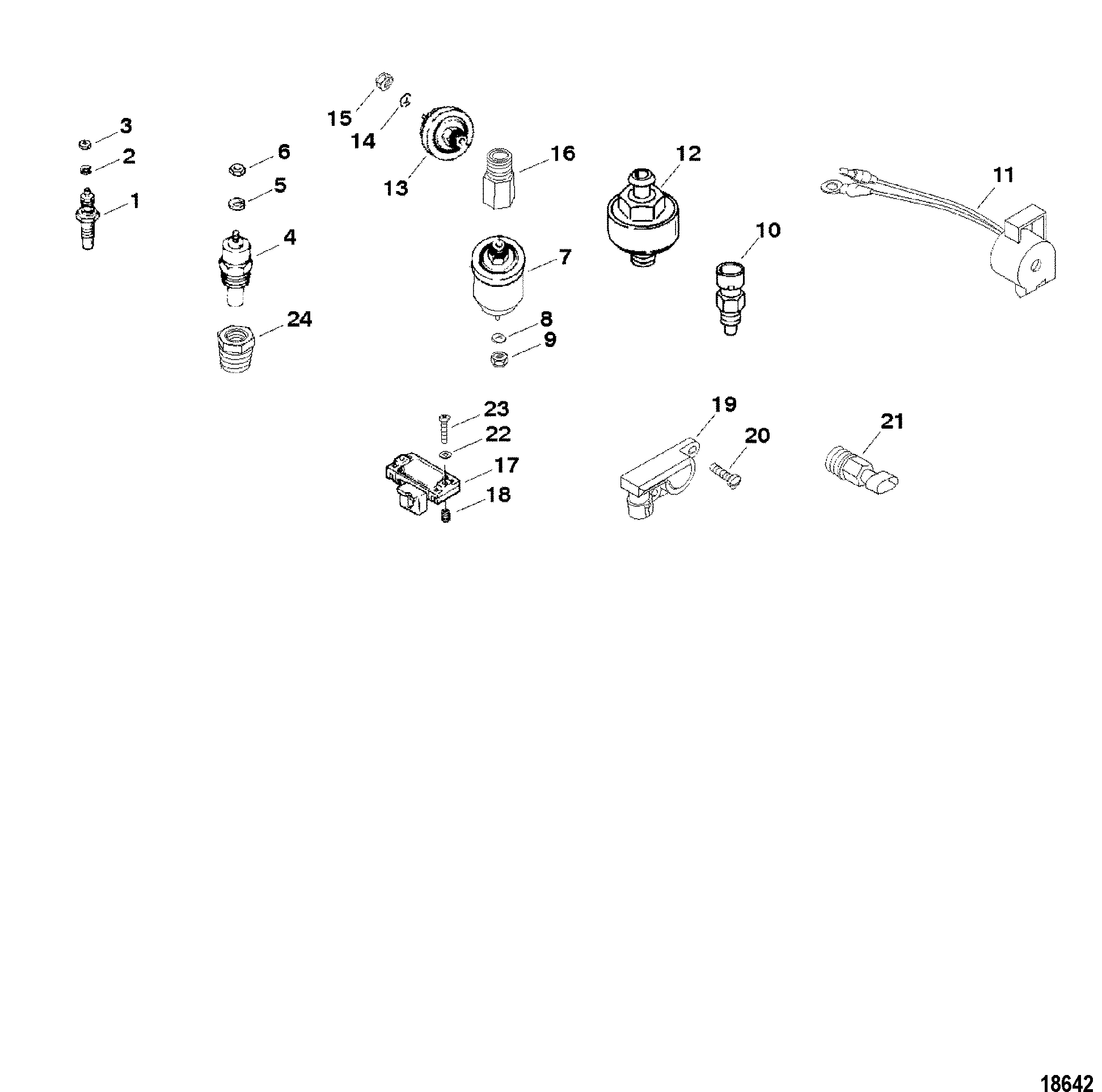

| 1 |
8493631 |
|
|
|
|
SENDER ASSEMBLY, Oil Temperature |
1 |
|
|
| 2 |
13-26996 |
|
|
|
|
LOCKWASHER, (#10) Stainless Steel |
1 |
|
|
| 3 |
11-45076 |
|
|
|
|
NUT, (#10-32) Brass |
1 |
|
|
| 4 |
806490T |
|
|
|
|
SENDER ASSEMBLY, Water Temperature |
1 |
97257A1 |
|
| 5 |
13-26996 |
|
|
|
|
LOCKWASHER, (#10) Stainless Steel |
1 |
|
|
| 6 |
11-45076 |
|
|
|
|
NUT, (#10-32) Brass |
1 |
|
|
| 7 |
8M0068784 |
|
|
|
|
SENDER ASSEMBLY, Oil Pressure |
1 |
87-815425T |
|
| 8 |
13-26996 |
|
|
|
|
LOCKWASHER, (#10) Stainless Steel |
1 |
|
|
| 9 |
11-45076 |
|
|
|
|
NUT, (#10-32) Brass |
1 |
|
|
| 10 |
805218T |
|
676-9-42402 |
|
|
SENSOR, Coolant Temperature |
1 |
|
|
| 11 |
816492A6 |
|
|
|
|
ALARM KIT, Audio Warning |
1 |
|
|
| 12 |
805544T |
|
|
|
|
SENSOR ASSEMBLY, Knock |
1 |
|
|
| 13 |
87-805605A1 |
|
|
|
|
SWITCH ASSEMBLY, Pressure - Engine Block |
1 |
|
|
| 14 |
13-26996 |
|
|
|
|
LOCKWASHER, (#10) Stainless Steel |
1 |
|
|
| 15 |
11-68219 |
|
|
|
|
NUT, (#10-32) Stainless Steel |
1 |
|
|
| 16 |
22-843300 |
|
|
|
|
FITTING, Street Tee |
1 |
|
|
| 17 |
864856A1 |
|
|
|
|
SENSOR ASSEMBLY, MAP |
1 |
805217A1 |
|
| 18 |
26-805412 |
|
|
|
|
SEAL |
1 |
|
|
| 19 |
849903 |
|
|
|
|
SENSOR, Throttle Position |
1 |
|
|
| 20 |
10-805400 |
|
|
|
|
SCREW, (#8-32 x .500) Stainless Steel |
2 |
|
|
| 21 |
805223T |
|
|
|
|
SENSOR, MAT |
1 |
|
|
| 22 |
12-30164 |
|
|
|
|
WASHER, (.192 x .375 x .0312) Stainless Steel |
2 |
|
|
| 23 |
10-66686 |
|
|
|
|
SCREW, (#10-32 x 1.00) |
2 |
|
|
| 24 |
23-848552 |
|
|
|
|
BUSHING, Coolant Sensor To Plenum |
1 |
|
|
