500 EFI - Serial 0M052001 Thru 0M053628 - Electrical Components

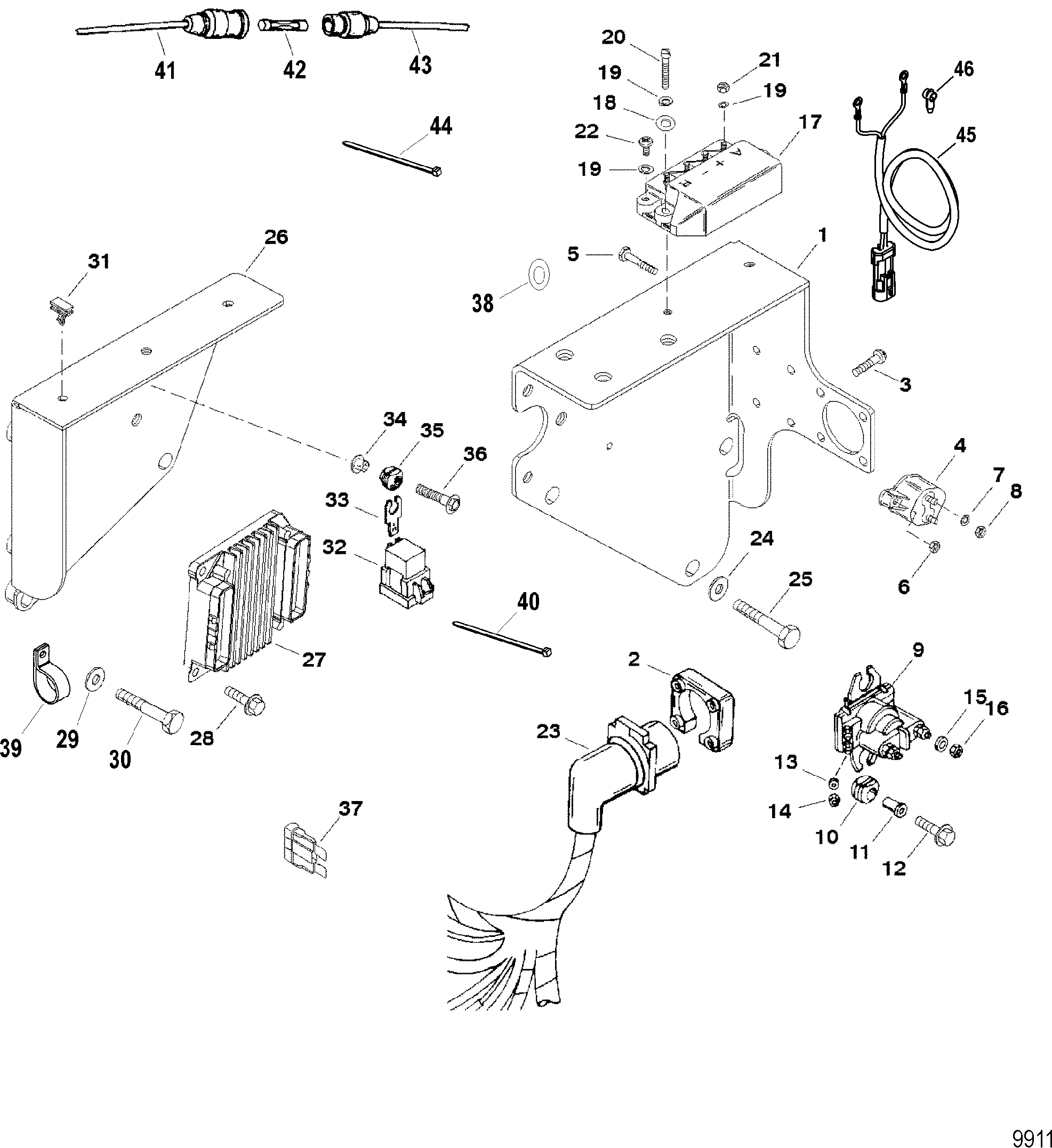

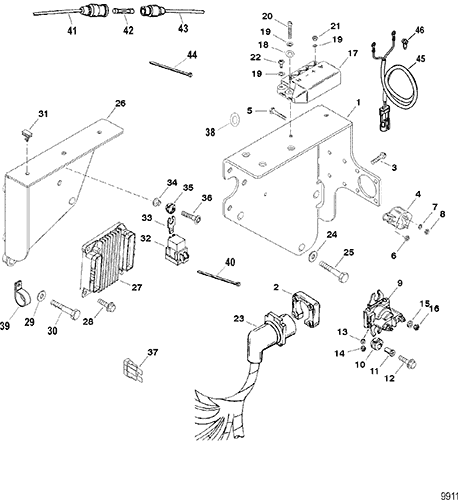

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 849915T1



BRACKET, Electrical Components 1

2 26079A2



PLATE KIT, Wire Harness Mount 1

3 10-15001



SCREW, (#8-16 x .875) 4

4 88-11178A01



BREAKER, Circuit - 50 Ampere 1 88-11178 This part is the replacement for 11178A01 however the mounting hole will need to be enlarged to make it work.
5 10-45862



SCREW, (#10-32 x .875) 2

6 11-61356



NUT, (#10-32) Reduced Hex 2

7 13-26996



LOCKWASHER, (#10) Stainless Steel 2

8 11-68219



NUT, (#10-32) Stainless Steel 2

9 89-818999A2

700-72380
SOLENOID ASSEMBLY, Starter 1

10 25-818967



GROMMET 2

11 23-818968



BUSHING 2

12 10-828478



SCREW, (.250-20 x 1.00) Stainless Steel 2

13 13-26995



LOCKWASHER, (#8) Stainless Steel 2

14 11-26419



NUT, (#8-32) Brass 2

15 13-26992



LOCKWASHER, (.250) Stainless Steel 2

16 11-94330



NUT, (.250-20) Brass 2

17 42600A09



CONTROLLER ASSEMBLY 1 42600A3
18 12-30164



WASHER, (.192 x .375 x .0312) Stainless Steel 2

19 13-26996



LOCKWASHER, (#10) Stainless Steel 7

20 10-41771



SCREW, (#10-24 x .875) 2

21 11-68219



NUT, (#10-32) Stainless Steel 4

22 10-62568



SCREW, (#10-16 x .375) 1

23 84-849909T1



HARNESS ASSEMBLY, Engine 1
SN# 0L600008 THRU 0L602036
23 84-8M0050123



HARNESS ASSEMBLY, Engine 1 84-842420T1 SN# 0L306500 THRU 0L307029
23 84-8M0050123



HARNESS ASSEMBLY, Engine 1 84-842420T1 SN# 0M050001 THRU 0M907127
24 12-45176

700-28420
WASHER, (.453 x .812 x .105) Stainless Steel 3

25 10-825427



SCREW, (.437-14 x 1.250) Stainless Steel 3

26 849910T1



BRACKET, EFI Module Mount 1

27 840136A03



ECM, Engine Control Module 1 840136T2
28 10-90192



SCREW, (.250-20 x .750) Stainless Steel 3

29 12-45176

700-28420
WASHER, (.453 x .812 x .105) Stainless Steel 2

30 10-825427



SCREW, (.437-14 x 1.250) Stainless Steel 2

31 54-804352



CLIP, Fuse Case Hold Down 2

32 86-865202T



RELAY, Ignition And Fuel Pump 2 807057T
33 828102



BRACKET, Relay Mount 2

34 23-818968



BUSHING 2

35 25-818967



GROMMET 2

36 10-828478



SCREW, (.250-20 x 1.00) Stainless Steel 2

37 88-83296910



FUSE, Red - 10 Ampere 1 88-804638
37 88-83296915



FUSE, Mini - Blue - 15 Ampere 2

38 37-72554



DECAL, Circuit Breaker 1

39 54-848183



J CLIP, Wire Harness Support 1

40 54-816311T

700-21465
TIE STRAP, (8.00 Inches) 1

41 84-95084A9



CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip, Fuse 1

42 88-79091



FUSE, 20 Ampere 1

43 84-95084A10



CABLE ASSEMBLY, (5.00 Inches) Red, Fuse 1

44 69355



TIE STRAP, (5.50 Inches) 4

45 84-865181A01



HARNESS ASSEMBLY, Mercathode 1
No longer made, limited availability
46 85-65208



BOOT, Insulator - Black 2
