525 EFI - Serial 0M956327 Thru 0M962885 - Oil Cooler (Transmission)(Bravo)
Other Sub-Sections:
- Closed Cooling System Components
- Driveshaft And Tailstock (Driveline)
- Driveshaft Extension Components (Bravo)
- Electrical Components (Ignition)
- Electrical Components (Starter And Alternator)
- Electrical Components (Wiring)
- Engine Components (Crankshaft - Piston - Connecting Rods)
- Engine Components (Cylinder Block And Camshaft)
- Engine Components (Cylinder Head)
- Engine Components (Water Pump And Front Cover)
- Exhaust Header - Tailpipe Assembly
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)(Bravo)
- Flywheel Housing (Driveline)(NXT1)
- Flywheel Housing (Transmission Models)
- Fuel Pump And Fuel Cooler
- Fuel Rails And Injectors
- Fuse Harness Kit (879365A20)
- Gasket-Seal Set - Engine Overhaul(27-843073A06)
- Intake Manifold And Components
- Intake Plenum And Components
- Mount Plates (Engine)
- Oil Cooler (Transmission)(Bravo)
- Oil Cooler (Transmission)(NXT1)
- Oil Cooler And Oil Filter(Engine)
- Oil Pan And Oil Pump
- Paint Color Chart
- Power-Assisted Steering Components
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket Components (Bravo)
- Shift Plate Components (NXT1)
- Tool List (NXT1 Transmission)
- Tool List (Special - Engine)
- Transmission (Reservoir-Pump)(NXT1)
- Transmission (Shaft And Gears)(NXT1)
- Transmission (Shift Cover)(NXT1)
- Transmission (Tailstock)(NXT1)
- Transmission And Components (Driveline)
- Transmission And Components (Six Drive - Bravo)
- Trim Pump Assembly
- Trim Pump-Motor Assembly (865380A13)
- Water Hoses (Closed Cooling)
- Water Hoses (Sea Water)

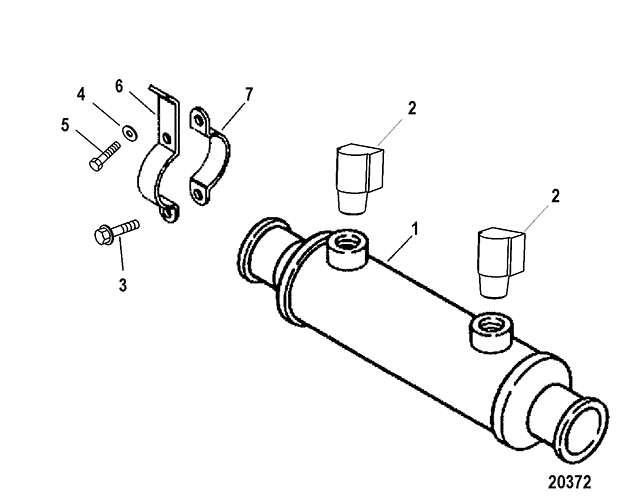

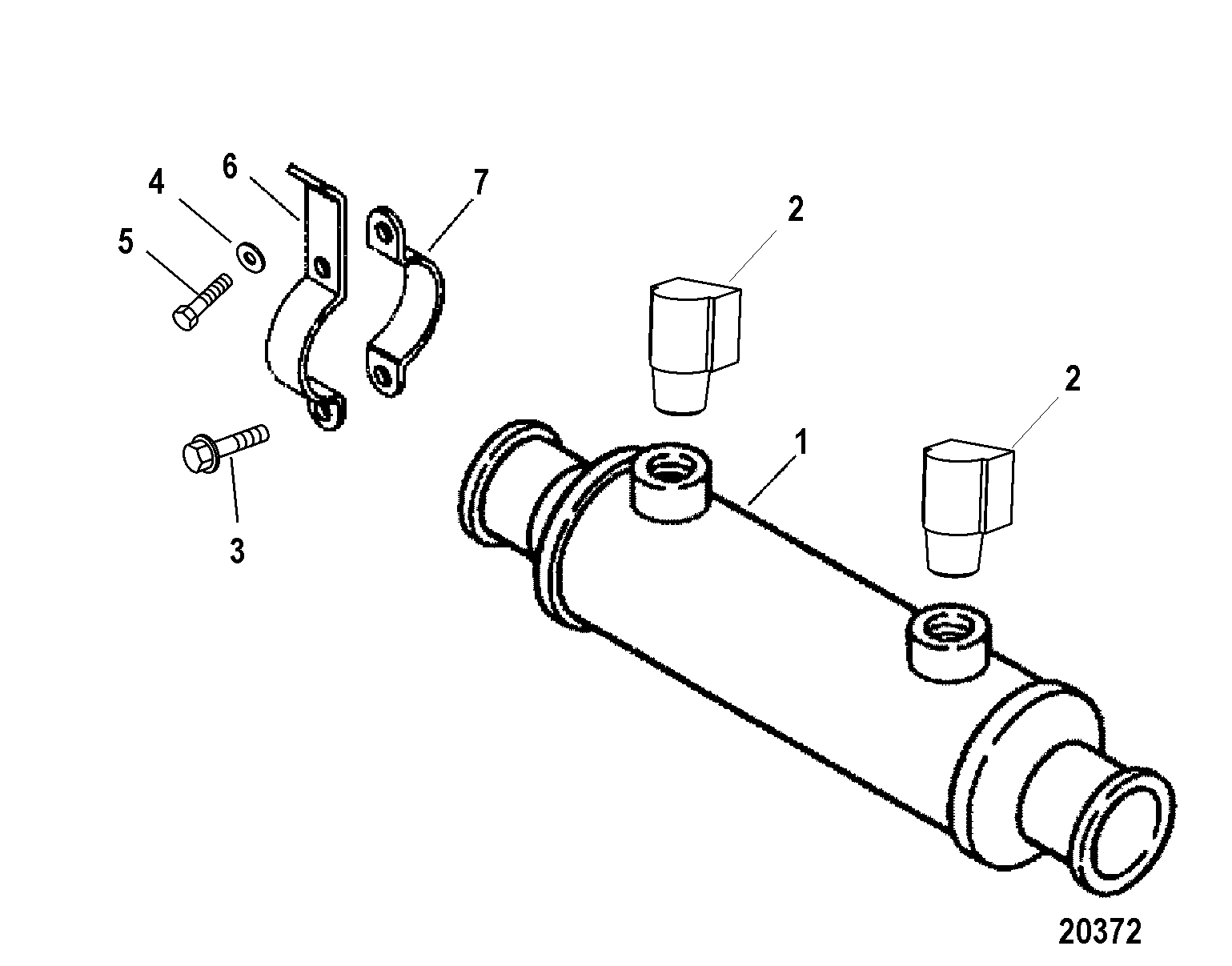

Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
1 | 63832A1 | COOLER, Transmission Oil | 1 | ||||||
2 | 22-47629 | ELBOW, 90 Degree | 2 | ||||||
3 | 10-817505 | SCREW, (.250-20 x .620) Stainless Steel | 2 | ||||||
4 | 12-814806 | 700-21662 | WASHER, (.344 x .688 x .065) Stainless Steel | 1 | |||||
5 | 10-90285 | SCREW, (.312-18 x .625) | 1 | ||||||
6 | 63820F3 | BRACKET, Oil Cooler Support - Long Style | 1 | ||||||
7 | 563281 | BRACKET, Oil Cooler Support - Short Style With Weldnut | 1 |
