525 EFI - Serial 0M956327 Thru 0M962885 - Closed Cooling System Components

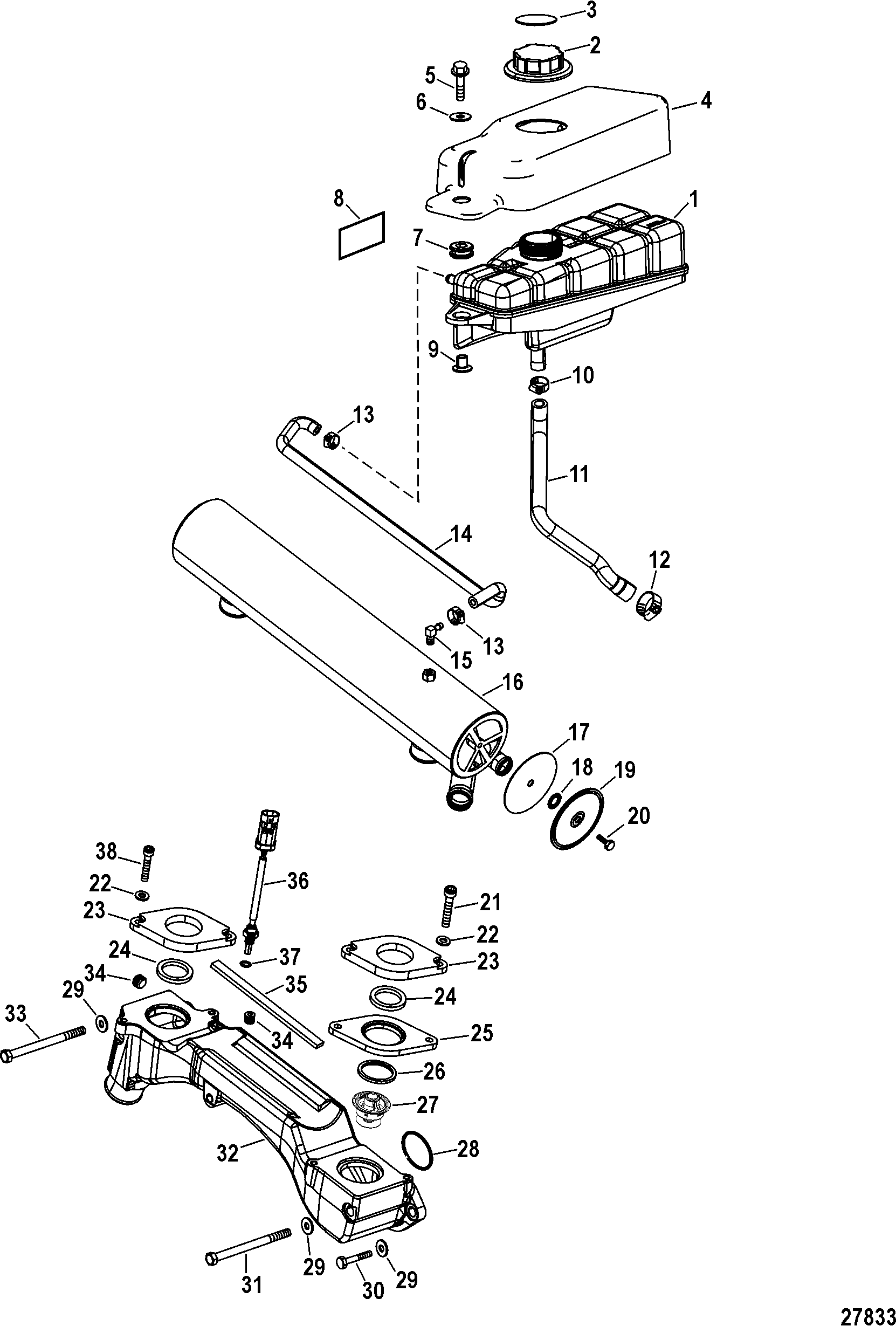

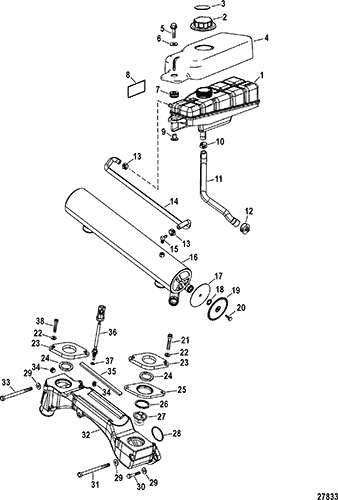

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 841065T01



RESERVOIR ASSEMBLY, Coolant 1

2 862863



CAP, Coolant Reservoir 1

3 37-8M0006044



DECAL, Warning - Do Not Open Hot 1

4 8M0001413



COVER, Coolant Reservoir 1
Special Models
5 10-F430732



SCREW, (.312-18 x 1.250) Stainless Steel 3

6 12-817274



WASHER, (.344 x 1.00 x .063) Stainless Steel 3

7 25-855362001



GROMMET 3
2
8 37-843133



DECAL, Coolant Level 1

9 23-855364



BUSHING 3

10 54-815504210



CLAMP, Worm Gear 1

11 32-841207



HOSE, Molded, Reservoir To Circular Pump 1

12 54-180763



CLAMP, Worm Gear 1

13 54-815504406



CLAMP, Worm Gear 2

14 32-842455



HOSE, Molded, Heat Exchanger To Reservoir 1

15 22-629101



FITTING, Elbow - 90 Degree (.125-27) 1

16 879330T35



EXCHANGER ASSEMBLY, Heat - Black 1 841059T04 NOTE: For Non Standard Paint Color - See Paint Color Chart For PPG Number
17 8M0036987



GASKET, Heat Exchanger End 2 27-803644 2
18 8M0039163



O-RING, Special 2 25-814878 2
19 8M0036623



COVER, Heat Exchanger End 2 814875
20 10-814877



BOLT 2

21 10-841222



SCREW, (.312-18 x 1.250) 2

22 12-70132



WASHER, (.323 x .563 x .063) Stainless Steel 4

23 842450



PLATE 2

24 25-20295



QUAD RING (1.725 x .210) 2
2
25 842448



PLATE 1

26 25-8071341



SEAL, Thermostat 1
2
27 8M0076464



THERMOSTAT, 71°C (160°F) 1 863358T
28 25-30529



O-RING, (1.925 x .103) 2
2
29 12-45176



WASHER, (.453 x .812 x .105) Stainless Steel 6

30 10-825427



SCREW, (.437-14 x 1.250) Stainless Steel 4

31 10-841118



SCREW, (.437-14 x 5.50) Stainless Steel 1

32 841058T01



CROSSOVER, Black 1

33 10-841114



SCREW, (.437-14 x 4.500) Stainless Steel 1

34 22-36373



PLUG, (.375-18) Hex - Steel 2

35 843155001



FOAM STRIP (6.500 Inches) 2

36 885342002



SENSOR ASSEMBLY, Water Temperature 1

37 25-896699



O-RING, (1.78 mm x .08 mm) 1
2
38 10-841221



SCREW, (.312-18 x 1.00) Stainless Steel 2

- 27-843073A06



GASKET/SEAL SET, Engine Overhaul 1
NOTE See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing
