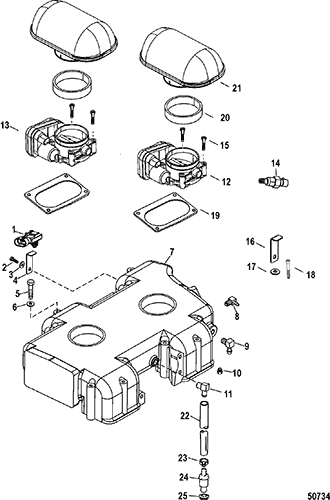

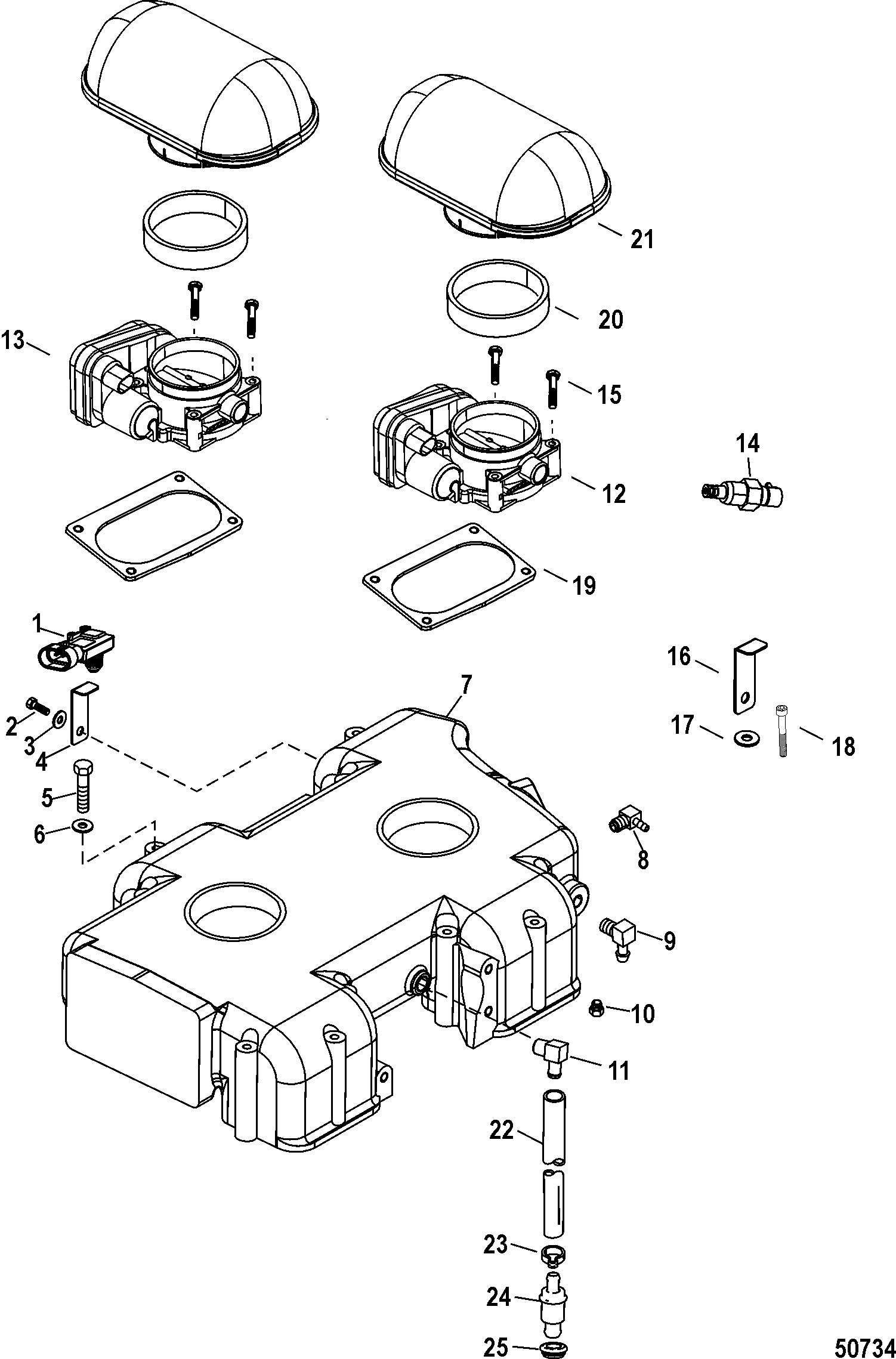

| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| 1 |
854445 |
|
|
|
|
SENSOR, MAP, Manifold Absolute Pressure |
1 |
|
|
| 2 |
10-847401 |
|
|
|
|
SCREW, (#10-24 x .380) |
1 |
|
|
| 3 |
12-30164 |
|
|
|
|
WASHER, (.192 x .375 x .0312) Stainless Steel |
1 |
|
|
| 4 |
8M0061478 |
|
|
|
|
BRACKET, MAP Sensor Mount |
1 |
840981 |
|
| 5 |
10-71319 |
|
|
|
|
SCREW, (.250-20 x 3.750) |
12 |
|
|
| 6 |
12-846673 |
|
|
|
|
WASHER, (.265 x .500 x .060) Stainless Steel |
12 |
|
|
| 7 |
8M0064682 |
|
|
|
|
PLENUM ASSEMBLY, Black |
1 |
|
|
| 8 |
22-196881 |
|
|
|
|
FITTING, (90 Degree) |
1 |
|
|
| 9 |
22-73817 |
|
|
|
|
CONNECTOR, (90 Degree) |
1 |
|
|
| 10 |
22-328022 |
|
|
|
|
PLUG, Pipe (.125-27) Brass |
1 |
|
|
| 11 |
22-687271 |
|
|
|
|
FITTING, (.250-18) 90 Degree - Brass |
1 |
|
|
| 12 |
866592A04 |
|
|
|
|
THROTTLE BODY ASSEMBLY, w/ Air Foil |
1 |
|
|
| 13 |
877828T02 |
|
|
|
|
CONTROL, Throttle - Electronic |
1 |
|
|
| 14 |
891663001 |
|
|
|
|
SENSOR ASSEMBLY, Temperature |
1 |
|
|
| 15 |
10-88552550 |
|
|
|
|
SCREW, (M6 x 50 MM) Stainless Steel |
8 |
|
|
| 16 |
884353 |
|
|
|
|
BRACKET |
2 |
|
|
| 17 |
12-30164 |
|
|
|
|
WASHER, (.192 x .375 x .0312) Stainless Steel |
2 |
|
|
| 18 |
10-90188 |
|
|
|
|
SCREW, (#10-24 x .500) Stainless Steel |
2 |
|
|
| 19 |
27-841156 |
|
|
|
|
GASKET, Throttle Body To Plenum |
2 |
|
|
| 20 |
54-863393 |
|
|
|
|
CLAMP |
2 |
|
|
| 21 |
862537T |
|
|
|
|
FLAME ARRESTOR |
2 |
|
|
| 22 |
32-844172019 |
|
|
|
|
HOSE, (7.00 Inches) |
1 |
|
|
| 23 |
54-848764 |
|
|
|
|
CLAMP, (21 mm) |
1 |
|
|
| 24 |
848578 |
|
|
|
|
VALVE ASSEMBLY, Crankcase Vent |
1 |
|
|
| 25 |
25-811553 |
|
|
|
|
GROMMET, Intake Manifold |
1 |
|
5 |
| - |
8M0065565 |
|
|
|
|
PARTIAL ENGINE ASSEMBLY |
1 |
|
|
