565 EFI - Serial 0M967821 and Up - Shift Actuator, Digital Throttle and Shift

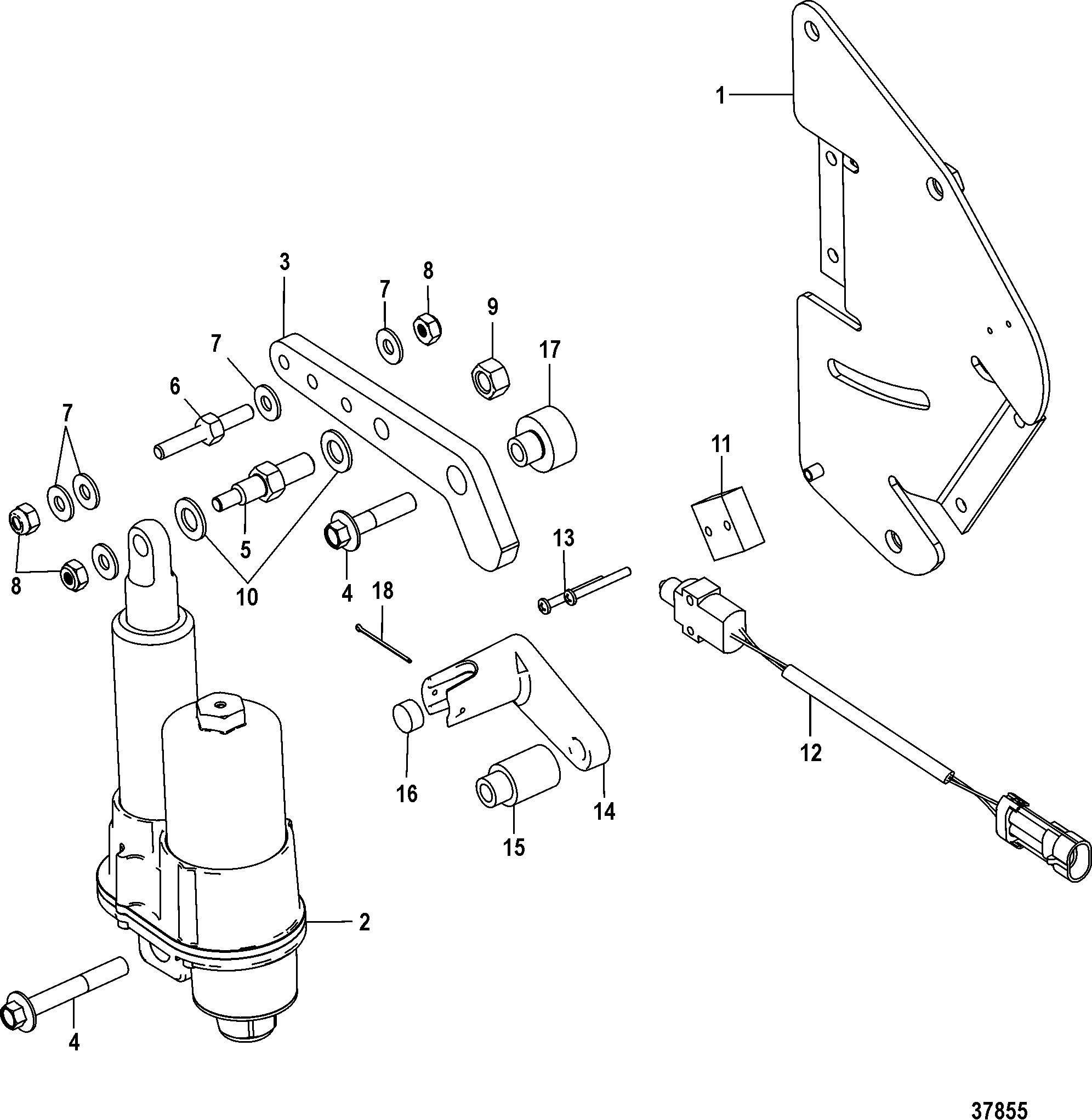

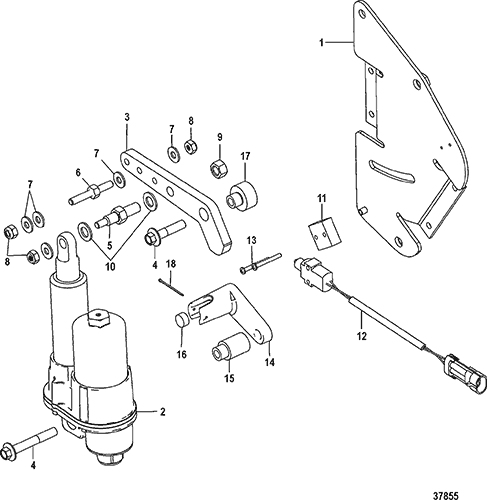

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Closed Cooling System Components
- Driveshaft Extension Components (Bravo)
- Electrical Accessories
- Electrical Components (Starter And Alternator)
- Electrical Components (Wiring)
- Electrical Plate Assembly
- Engine Components (Crankshaft - Piston - Connecting Rods)
- Engine Components (Cylinder Block And Camshaft)
- Engine Components (Cylinder Head)
- Engine Components (Water Pump And Front Cover)
- Engine Cover
- Exhaust Header - Tailpipe Assembly
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)(Bravo)
- Fuel Pump And Fuel Cooler
- Fuel Rails And Injectors
- Intake Manifold And Components
- Intake Plenum And Components
- Mount Plates (Engine)
- Oil Cooler And Oil Filter (Engine)
- Oil Pan And Oil Pump
- Power-Assisted Steering Components
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Actuator, Digital Throttle and Shift
- Trim Pump Assembly
- Trim Pump-Motor Assembly (865380A13)
- Water Hoses (Closed Cooling)
- Water Hoses (Sea Water)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 8M2010067 | SHIFT ACTUATOR ASSEMBLY | 1 | ||||||
| 1 | 879312T27 | BRACKET, Shift | 1 | ||||||
| 2 | 879194T46 | SHIFT ACTUATOR | 1 | ||||||
| 3 | 8631341 | LEVER | 1 | ||||||
| 4 | 10-4010735 | SCREW, (M8 x 35) | 1 | ||||||
| 4 | 10-40011155 | SCREW, (M8 x 55) Stainless Steel | 1 | ||||||
| 5 | 16-864361 | STUD | 1 | ||||||
| 6 | 16-96112 | STUD, (.250-28 x 2.00) | 1 | ||||||
| 7 | 12-35462 | WASHER, (.2656 x .625 x .0625) Stainless Steel | 5 | ||||||
| 8 | 11-8267119 | NUT, (.250-28) | 3 | ||||||
| 9 | 11-46335 | NUT, (.375-24) | 1 | ||||||
| 10 | 12-34931 | WASHER, (.406 x .734 x .063) Stainless Steel | 2 | ||||||
| 11 | 23-864386 | SPACER | 1 | ||||||
| 12 | 87-8M0052939 | SWITCH | 1 | 87-889514A01 | |||||
| 13 | 10-865076 | SCREW, (6-32 x 1.25) | 2 | ||||||
| 14 | 864616 | RETAINER | 1 | ||||||
| 15 | 23-863133 | SPACER | 1 | ||||||
| 16 | 23-98828 | SPACER | 1 | ||||||
| 17 | 23-863132 | SPACER | 1 | ||||||
| 18 | 18-36002 | COTTER PIN | 1 | ||||||
| - | 92-86166Q1 | GLUE | AR |
