700 SCi - Serial 0M954560 Thru 0M962885 - Electrical Components (Engine Harness)

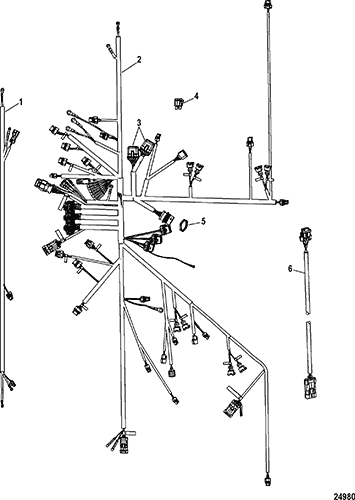

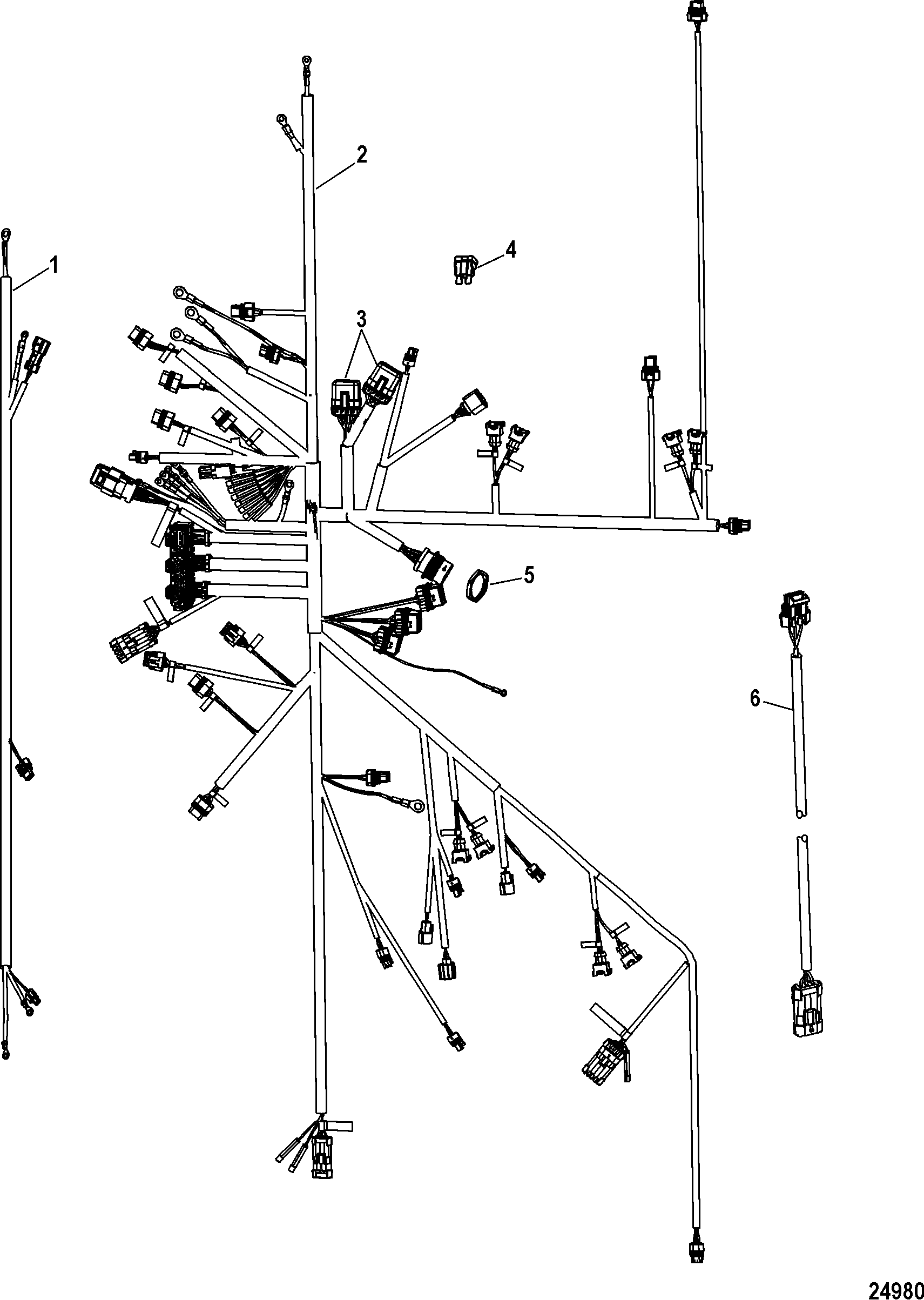

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 84-895341A03



HARNESS ASSEMBLY, Fuel Pump 1 84-895341A02
2 8M0050828



HARNESS ASSEMBLY, Engine 1 84-846201A02
3 858754



COVER, Fuse 2

4 88-832969T05



FUSE, Mini - Tan - 5 Ampere 2 88-8329695
4 88-83296915



FUSE, Mini - Blue - 15 Ampere 2

4 88-832969T20



FUSE, Mini - Yellow - 20 Ampere 3 88-83296920
4 88-832969T25



FUSE, Mini - Clear - 25 Ampere 1 88-83296925
5 11-889664



NUT, (1.500-18) Black Nylon 1

6 84-843203A04



HARNESS ASSEMBLY, Extension 1
