| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

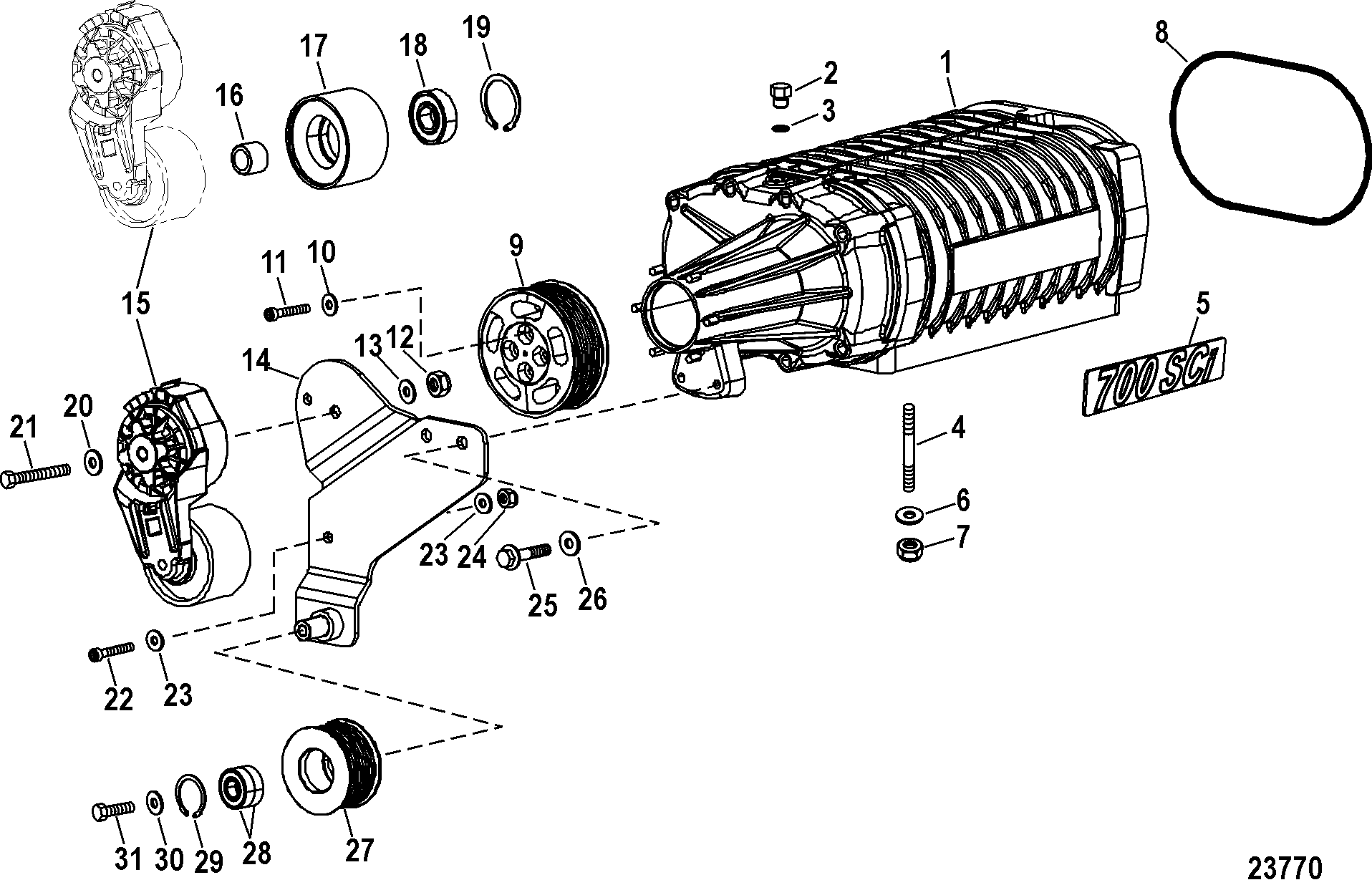

| 1 |
843082A09 |
|
|
|
|
SUPERCHARGER ASSEMBLY, Blue |
1 |
|
NOTE: For Non Standard Paint Color - See Paint Color Chart For PPG Number |
| 2 |
22-842487A01 |
|
|
|
|
PLUG ASSEMBLY |
2 |
|
|
| 3 |
25-841913 |
|
|
|
|
O-RING, (.352 x .072) |
2 |
|
|
| 4 |
16-8M0034449 |
|
|
|
|
STUD, (.312-18/.312-24 x 1.690) |
6 |
16-69058 |
|
| 5 |
8M0050744 |
|
|
|
|
NAMEPLATE, 700 SCi |
2 |
38-846207 |
|
| 6 |
12-70132 |
|
|
|
|
WASHER, (.323 x .563 x .063) Stainless Steel |
6 |
|
|
| 7 |
11-82670911 |
|
|
|
|
NUT, (.312-24) Stainless Steel |
6 |
|
|
| 8 |
25-843920 |
|
|
|
|
O-RING, (7.052 x .103), Supercharger To Throttle Body |
1 |
|
2 |
| 9 |
8M0050808 |
|
|
|
|
PULLEY, Supercharger - Polished/Clear Coat |
1 |
846219 |
|
| 10 |
12-70132 |
|
|
|
|
WASHER, (.323 x .563 x .063) Stainless Steel |
4 |
|
|
| 11 |
10-849377 |
|
|
|
|
SCREW, (.312-24 x .750) Stainless Steel |
4 |
|
|
| 12 |
11-82670912 |
|
|
|
|
NUT, (.375-16) Stainless Steel |
1 |
|
|
| 13 |
12-856774 |
|
|
|
|
WASHER, (.406 x .750 x .105) Stainless Steel |
1 |
|
|
| 14 |
842508 |
|
|
|
|
BRACKET |
1 |
|
|
| 15 |
8M0050917 |
|
|
|
|
TENSIONER ASSEMBLY, Black With Polished/Clear Coat Pulley |
1 |
8M0006950 |
NOTE: For Non Standard Paint Color - See Paint Color Chart For PPG Number |
| 16 |
8M8020335 |
|
|
|
|
SPACER |
1 |
|
|
| 17 |
8M0050125 |
|
|
|
|
PULLEY, Supercharger Belt Tensioner - Polished/Clear Coat |
1 |
8M0009161 |
|
| 18 |
30-33451 |
|
|
|
|
BEARING, Ball |
1 |
|
|
| 19 |
53-18917 |
|
|
|
|
RING, Retaining |
1 |
|
|
| 20 |
12-856774 |
|
|
|
|
WASHER, (.406 x .750 x .105) Stainless Steel |
1 |
|
|
| 21 |
10-840244 |
|
|
|
|
SCREW, (.375-16 x 3.375) Stainless Steel |
1 |
|
|
| 22 |
10-843144 |
|
|
|
|
SCREW, (.312-24 x .880) Stainless Steel |
1 |
|
|
| 23 |
12-70132 |
|
|
|
|
WASHER, (.323 x .563 x .063) Stainless Steel |
2 |
|
|
| 24 |
11-82670911 |
|
|
|
|
NUT, (.312-24) Stainless Steel |
1 |
|
|
| 25 |
10-40011149 |
|
|
|
|
SCREW, (M8 x 25) Stainless Steel |
2 |
|
|
| 26 |
12-814806 |
|
|
700-21662 |
|
WASHER, (.344 x .688 x .065) Stainless Steel |
2 |
|
|
| 27 |
8M0050741 |
|
|
|
|
PULLEY ASSEMBLY, Idler - Polished/Clear Coat |
1 |
843093A02 |
|
| 28 |
30-33451 |
|
|
|
|
BEARING, Ball |
2 |
|
|
| 29 |
53-18917 |
|
|
|
|
RING, Retaining |
1 |
|
|
| 30 |
12-74759 |
|
|
|
|
WASHER, (.391 x .880 x .125) Stainless Steel |
1 |
|
|
| 31 |
10-94247 |
|
|
|
|
SCREW, (.375-16 x .750) Stainless Steel |
1 |
|
|
| - |
27-843073A05 |
|
|
|
|
GASKET/SEAL SET, Engine Overhaul |
1 |
|
NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing |
