700 SCi - Serial 0M962886 and Up - Engine Components (Cylinder Block And Camshaft)

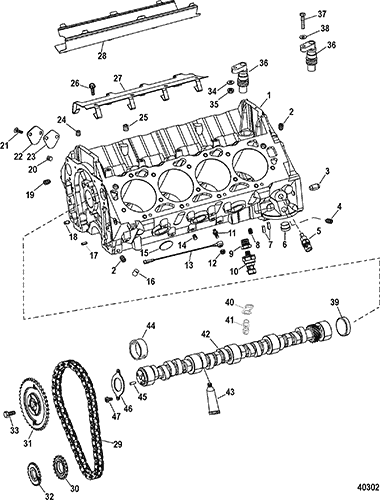

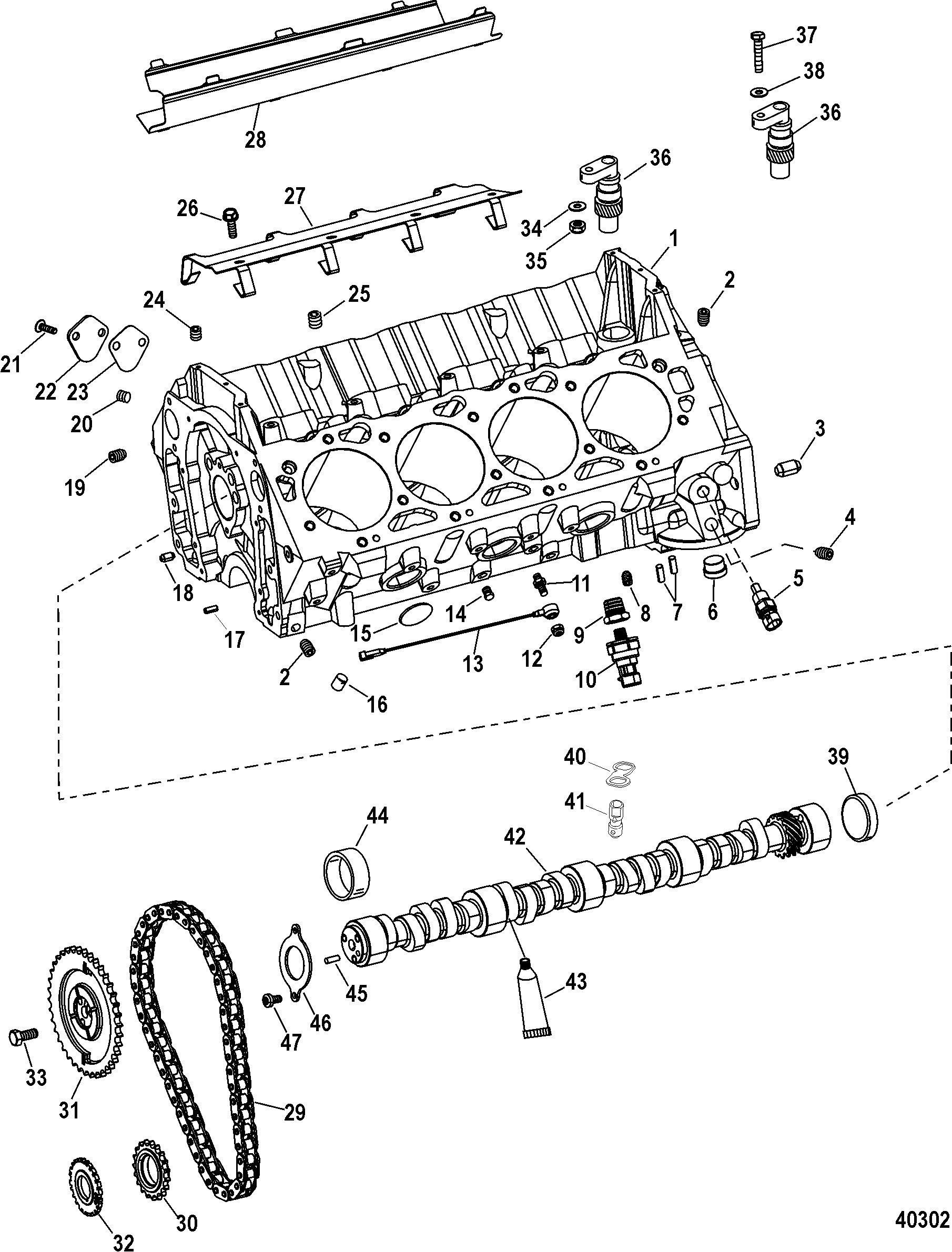

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 844200A08



PARTIAL ENGINE ASSEMBLY 1
600 SCi
1 8M8022100



PARTIAL ENGINE ASSEMBLY 1
662 SCi
1 844330A07



PARTIAL ENGINE ASSEMBLY 1
700 SCi
2 22-32561



PLUG, Pipe - Allen Head (.250-18), Oil Gallery Rear Cam Plugs 3
5
3 17-846256



PIN, Dowel (.623 x 1.450), Flywheel Housing 2
5
4 22-328022



PLUG, Pipe (.125-27) Brass 1
5
5 805218T
676-9-42402

SENSOR, Oil Temperature 1

6 19-8M0007929



PLUG, Block Off 1
5
7 17-843378



PIN, Dowel (.250) Bottom Of Block 2
5
8 22-36373



PLUG, (.375-18) Hex - Steel 1
NOTE: Bottom Of Block Oil Plug 5
8 22-36373



PLUG, (.375-18) Hex - Steel 2
NOTE: Rear Of Block Oil Plugs 5
9 22-64013



FITTING, (.375 Male To .125 Female) 1

10 881879T11



SENSOR, Pressure (0 - 100 PSI), Oil 1 881879011
11 16-862915



STUD, (.250-18/M10 Special), Knock Sensor Assembly Mount 2

12 11-826292



NUT, (M10) Brass/Nickel Plated 2

13 878187



SENSOR ASSEMBLY, Knock 2

14 22-36382

700-21887
FITTING, (.250-18 x .62) Brass, Lower Side Of Block 2
5
15 19-34270



EXPANSION PLUG, (1.625) 6
5
16 17-52190



PIN, Dowel 4
600 SCi 5
16 17-843378



PIN, Dowel (.250) 4
662/700 SCi 5
17 17-843143



PIN, Spring 1
600 SCi 5
17 17-843378



PIN, Dowel (.250) Timing Cover 1
662/700 SCi 5
18 17-843378



PIN, Dowel (.250) Timing Cover 1
5
19 845606



PLUG, (.250-18 x .410) Allen Head With Hole, Oil Gallery 2
5
20 22-36373



PLUG, (.375-18) Hex - Steel 1
5
21 10-16498



SCREW, (.375-16 x .750) Button Head - Stainless Steel 2
5
22 8M0001406



PLATE, Block Off - Fuel Pump 1
5
23 27-34213
676-9-61041 700-31360
GASKET 1
5
24 22-390721



PLUG, Pipe (.125-27) Brass 1
5
25 22-328022



PLUG, Pipe (.125-27) Brass, Oil Gallery 3
5
26 10-841389



SCREW, (.312-18 x .620) 4
5
27 8M0050807



RETAINER, Lifter Guide 1 845755 5
28 845756T



SHEILD, Oil Intake 1
5
29 8M8023355



TIMING SET KIT 1
5
30 NSS



NOT SOLD SEPARATE, Crankshaft Sprocket 1
This Part is not sold separately 5
31 NSS



NOT SOLD SEPARATE, Camshaft Sprocket 1
This Part is not sold separately 5
32 8M0050760



WHEEL, Sensor Target 1 8M0000102 5
33 10-845942



SCREW, (.312-18 x .750) 3
5
34 12-56720



WASHER, (.330 x .750 x .060) Stainless Steel 1
5
35 11-82670910



NUT, (.312-18) Stainless Steel 1
5
36 8M0045287



DRIVE, Oil Pump 1
5
37 10-35386



SCREW, (.312-18 x 1.00) 1
5
38 12-56720



WASHER, (.330 x .750 x .060) Stainless Steel 1
5
39 19-94140



EXPANSION PLUG 1
5
40 849947T01



LIFTER 16 849947T 5
41 845754



GUIDE, Lifter 8
5
42 8M0043066



CAMSHAFT 1 2409-842264T 600SCi, 662 SCi 5
42 849945T01



CAMSHAFT 1 2409-849945T 700 SCi 5
43 92-15875



LUBE, Camshaft (8 Ounces) AR

44 23-85684



BEARING SET 1
5
45 17-843378



PIN, Dowel 1
5
46 845941



RETAINER, Gear Thrust 1
5
47 10-845943



SCREW, (.250-20 x .500) 2
5
- 27-843073A05



GASKET/SEAL SET, Engine Overhaul 1
NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing
