700 SCi - Serial 0M962886 and Up - Tool List (Special - Engine)

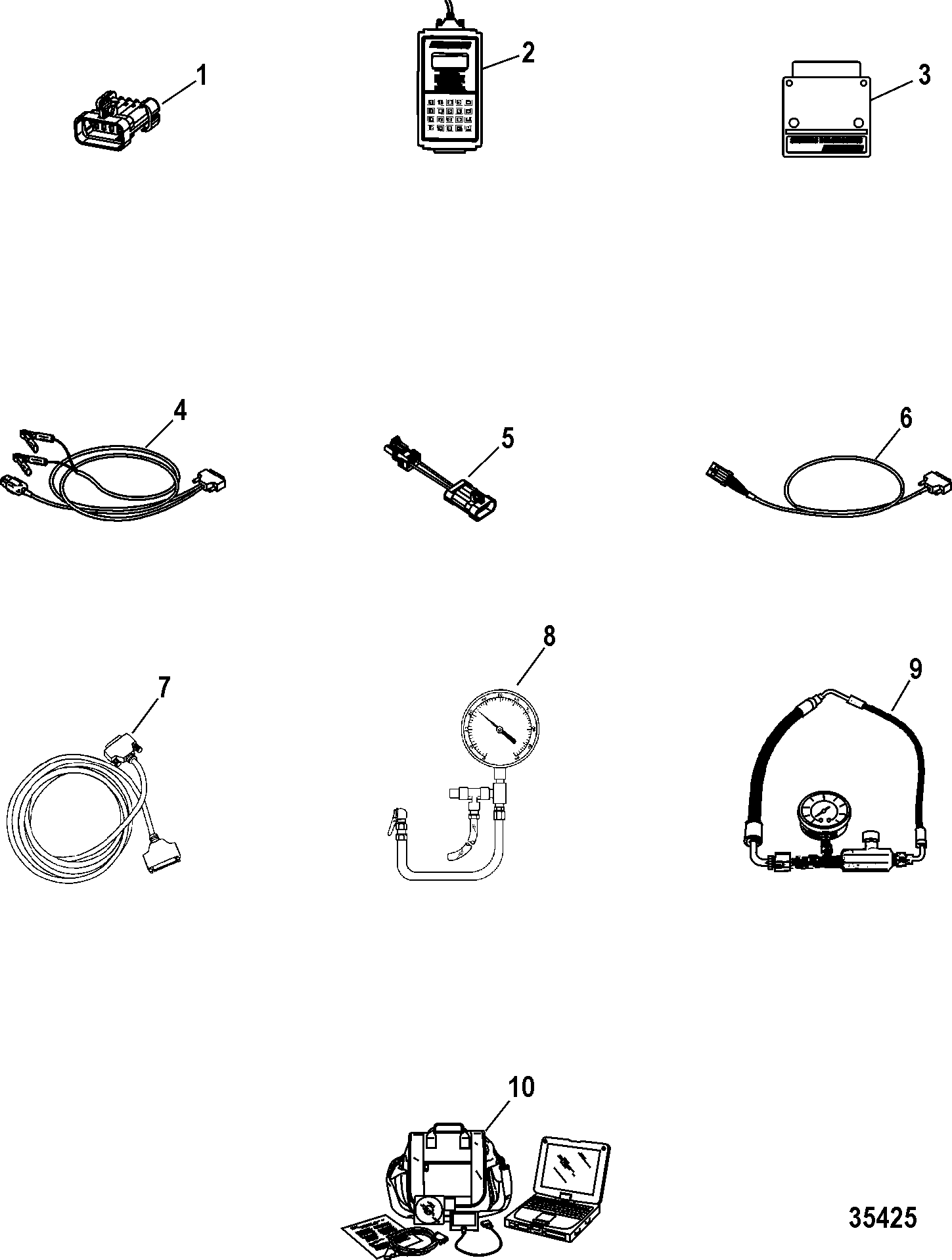

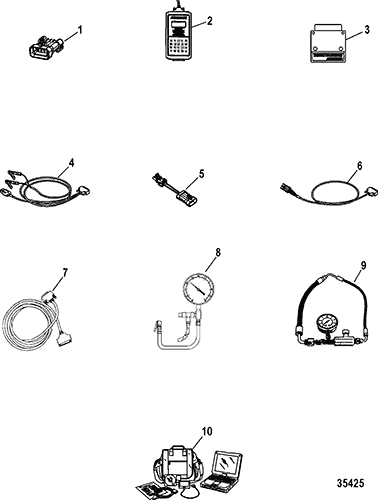

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 91-805747A2         JUMPER PLUG TOOL, Testing Circuits 1

2 CDS         DIGITAL DIAGNOSTIC TESTER 1 91-823686A2
3 91-880118A04         DDT CARTRIDGE, Version 1.31 1   This Part is No Longer Available
4 84-822560A5         HARNESS ASSEMBLY, DDT Adaptor 1

5 84-822560T12         HARNESS ASSEMBLY, 2 Pin To 4 Pin Adapter - Diagnostic Tester 1

6 84-822560A13         HARNESS ASSEMBLY, Diagnostic Tester 1

7 84-825003A1         CABLE ASSEMBLY, DDT, 10.00 Feet 1

8 91-881833A03         GAUGE KIT, Air/Fuel Pressure 1

9 91-38053A05         TEST GAUGE KIT, Power Steering 1

10 ORDLOCAL         ORDER PART LOCAL, Computer Diagnostic System (CDS) 1
