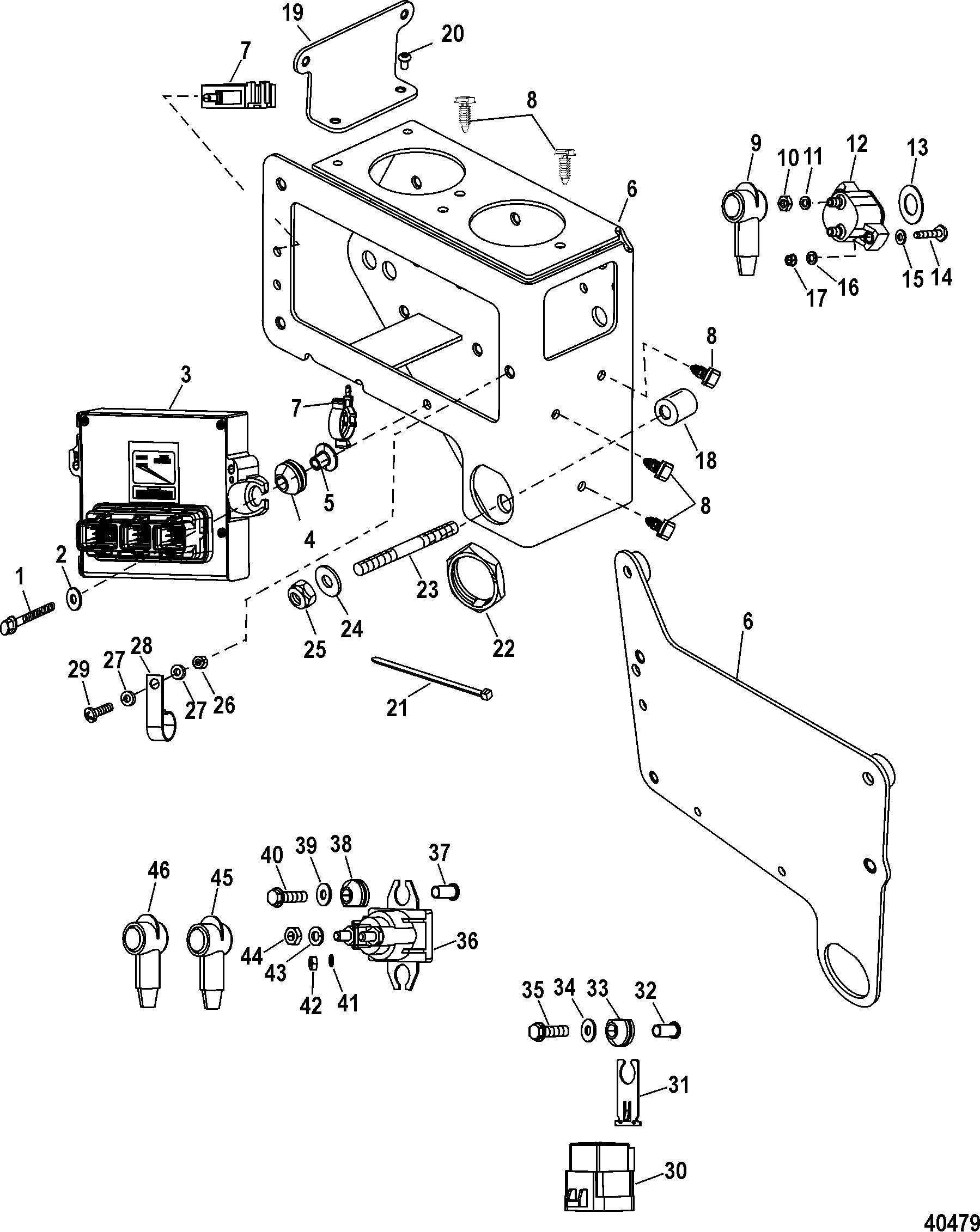

Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superseded From |
Special Notes |
1 |
10-828478 |
|
|
|
|
SCREW, (.250-20 x 1.00) Stainless Steel |
3 |
|
|
2 |
12-65567 |
|
|
|
|
WASHER, (.265 x .750 x .048) Stainless Steel |
3 |
|
|
3 |
840947T18 |
|
|
|
|
PCM, Propulsion Control Module |
1 |
|
850 |
3 |
8M0046380 |
|
|
|
|
PCM, Propulsion Control Module |
1 |
840947T21 |
1025 |
3 |
8M0046379 |
|
|
|
|
PCM, Propulsion Control Module |
1 |
840947T19 |
1075 |
3 |
8M0046378 |
|
|
|
|
PCM, Propulsion Control Module |
1 |
840947T20 |
1200 |
4 |
25-834985 |
|
|
|
|
GROMMET |
3 |
|
|
5 |
23-856954 |
|
|
|
|
BUSHING |
3 |
|
|
6 |
8M8023431 |
|
|
|
|
BRACKET |
1 |
|
|
6 |
8M8024731 |
|
|
|
|
BRACKET, Dual, 1200 SCi |
1 |
|
SN# 8M962886 & Up |
7 |
54-858755 |
|
|
|
|
CLIP, (1.00), Wire Harness Mount |
2 |
|
|
8 |
54-828991T |
|
|
|
|
CLIP |
5 |
|
|
9 |
85-880786 |
|
|
|
|
BOOT, Insulator - Red |
2 |
|
|
10 |
11-68219 |
|
|
|
|
NUT, (#10-32) Stainless Steel |
4 |
|
|
11 |
13-26996 |
|
|
|
|
LOCKWASHER, (#10) Stainless Steel |
4 |
|
|
12 |
88-11178A01 |
|
|
|
|
BREAKER, Circuit - 50 Ampere |
1 |
|
This part is the replacement for 11178A01 however the mounting hole will need to be enlarged to make it work. |
12 |
88-8M0021530 |
|
|
|
|
BREAKER, Circuit - 25 Ampere |
1 |
|
|
13 |
37-72554 |
|
|
|
|
DECAL, Circuit Breaker, Push To Reset |
2 |
|
|
14 |
10-34994 |
|
|
|
|
SCREW, (#10-32 x 1.00) Stainless Steel |
4 |
|
|
15 |
12-30164 |
|
|
|
|
WASHER, (.192 x .375 x .0312) Stainless Steel |
4 |
|
|
16 |
12-30164 |
|
|
|
|
WASHER, (.192 x .375 x .0312) Stainless Steel |
4 |
|
|
17 |
11-61356 |
|
|
|
|
NUT, (#10-32) Reduced Hex |
4 |
|
|
18 |
23-669954 |
|
|
|
|
SPACER, (.410 x 1.00 x .750) Aluminum - Black |
3 |
|
|
19 |
8M0039427 |
|
|
|
|
BRACKET |
1 |
|
|
20 |
10-842275 |
|
|
|
|
SCREW, (#10-32 x .380) Stainless Steel |
2 |
|
|
21 |
54-816311T |
|
|
700-21465 |
|
TIE STRAP, (8.00 Inches) |
AR |
|
|
21 |
54-847509 |
|
|
|
|
TIE STRAP, (7.50 Inches) |
AR |
|
|
22 |
11-889664 |
|
|
|
|
NUT, (1.500-18) Black Nylon |
1 |
|
|
23 |
16-8M0034438 |
|
|
|
|
STUD, (.375-24/.375-16 x 2.250) |
3 |
16-87163 |
|
24 |
12-856774 |
|
|
|
|
WASHER, (.406 x .750 x .105) Stainless Steel |
3 |
|
|
25 |
11-82671013 |
|
|
|
|
NUT, (.375-24) Stainless Steel |
3 |
|
|
26 |
11-859124 |
|
|
700-21161 |
|
NUT, (#10-32) Stainless Steel |
1 |
|
|
27 |
12-73288 |
|
|
|
|
WASHER, (.220 x .500 x .030) Stainless Steel |
2 |
|
|
28 |
54-65292 |
|
|
|
|
J CLIP |
1 |
|
|
29 |
10-87926 |
|
|
|
|
SCREW, (#10-32 x .500) |
1 |
|
|
30 |
882751A1 |
|
|
700-73040 |
|
RELAY ASSEMBLY |
5 |
|
|
31 |
828102 |
|
|
|
|
BRACKET |
5 |
|
|
32 |
23-818968 |
|
|
|
|
BUSHING |
5 |
|
|
33 |
25-818967 |
|
|
|
|
GROMMET |
5 |
|
|
34 |
12-29245 |
|
|
700-21490 |
|
WASHER, (.281 x .500 x .060) Stainless Steel |
5 |
|
|
35 |
10-28667 |
|
|
|
|
SCREW, (.250-20 x 1.00) Stainless Steel |
5 |
|
|
36 |
89-850187T1 |
|
|
700-72401 |
|
SOLENOID ASSEMBLY |
1 |
|
|
37 |
23-818968 |
|
|
|
|
BUSHING |
2 |
|
|
38 |
25-818967 |
|
|
|
|
GROMMET |
2 |
|
|
39 |
12-29245 |
|
|
700-21490 |
|
WASHER, (.281 x .500 x .060) Stainless Steel |
2 |
|
|
40 |
10-28667 |
|
|
|
|
SCREW, (.250-20 x 1.00) Stainless Steel |
2 |
|
|
41 |
13-26995 |
|
|
|
|
LOCKWASHER, (#8) Stainless Steel |
2 |
|
|
42 |
11-26419 |
|
|
|
|
NUT, (#8-32) Brass |
2 |
|
|
43 |
13-26992 |
|
|
|
|
LOCKWASHER, (.250) Stainless Steel |
2 |
|
|
44 |
11-94330 |
|
|
|
|
NUT, (.250-20) Brass |
2 |
|
|
45 |
85-880787 |
|
|
|
|
BOOT, Insulator - Yellow |
1 |
|
|
46 |
85-880786 |
|
|
|
|
BOOT, Insulator - Red |
1 |
|
|
