850 SCi - Serial 0M962886 and Up - Gasket-Seal Set - Engine Overhaul (27-842593A01)

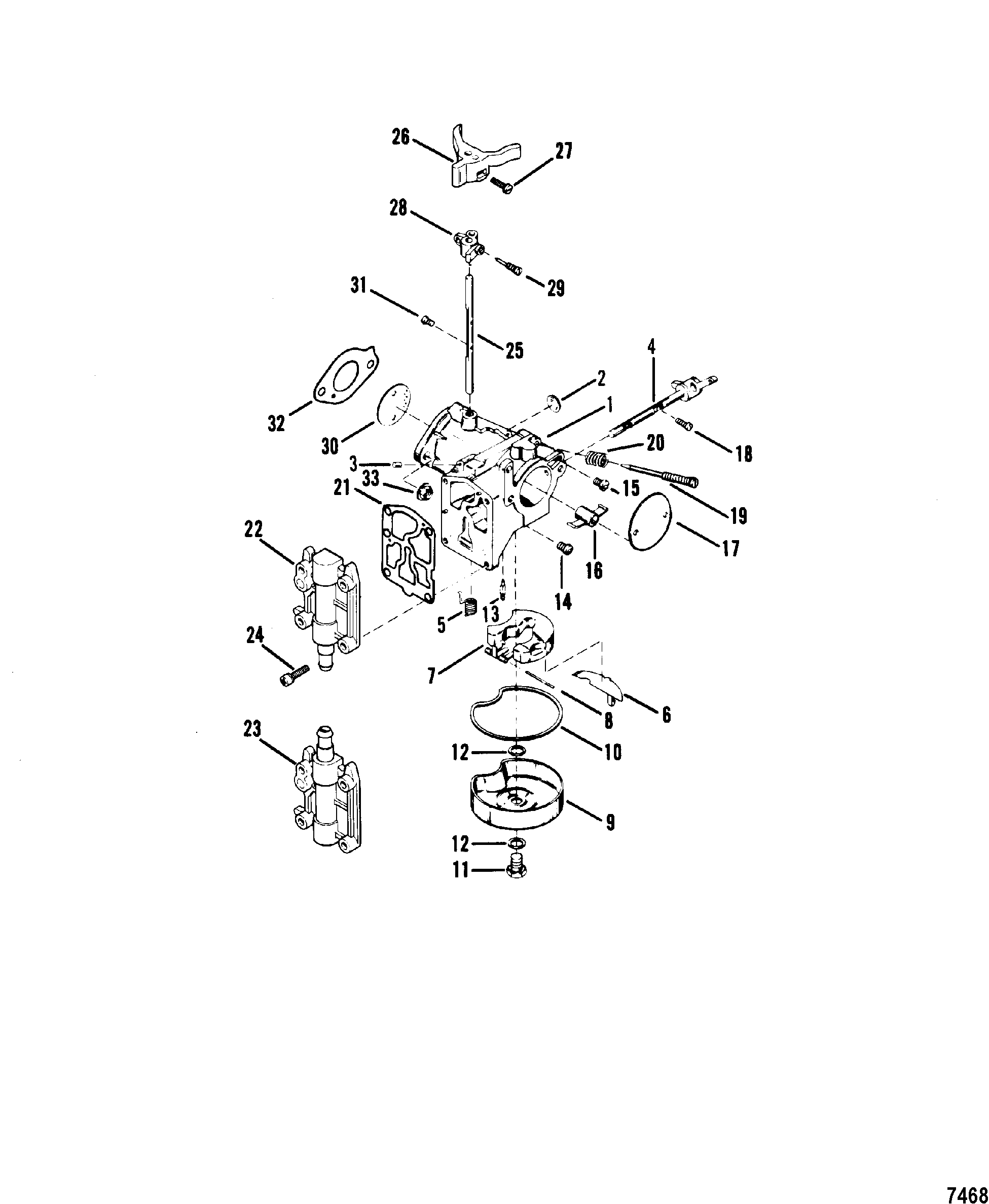

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator And Sea Water Pump Mounting
- Cooling (Water Hoses And Fittings - Port)
- Cooling (Water Hoses And Fittings - Starboard)
- Cooling Components (Sea Water Pump)
- Cooling Components (Water Thermostat Housing)
- Electrical Components (Ignition Coils)
- Electrical Components (Mounting Box)
- Electrical Components (Starter Motor)
- Electrical Components (Wiring)
- Engine Components (Crankshaft - Pistons - Connecting Rods)
- Engine Components (Cylinder Block)
- Engine Components (Cylinder Head)
- Engine Components (Drive Belt)
- Engine Components (Front Cover And Camshaft)
- Engine Components (Water Pump)
- Filter Kit (Remote) (Water - Fuel Separating)
- Flywheel Housing And Components
- Fuel Line Components
- Fuel Pump (Remote)
- Fuse Harness Kit (879365A20)
- Gasket-Seal Set - Engine Overhaul (27-842593A01)
- Intake Components (Air Plenum And Flame Arrestor)
- Intake Components (Boost Valve)
- Intake Components (Manifold)
- Intake Components (Supercharger) (1200)
- Intake Components (Supercharger) (850-1075)
- Intake Components (Water Intercooler)
- Mount Plates (Engine)
- Oil Cooler - Transmission
- Oil Filter Adaptor And Components
- Oil Hoses And Fittings (Port Side View)
- Oil Hoses And Fittings (Starboard Side View)
- Oil Pan And Oil Pump
- Oil Tank And Breather Assembly (Remote)
- Power-Assisted Steering Components
- Reservoir Bottle (Transmission Fluid)
- Rigging Kit (Dual Engines)
- Rigging Kit (Quad Engines)
- Rigging Kit (Single Engine)
- Rigging Kit (Triple Engines)
- Tool List (Special - Engine)
- Transmission (Driveline Models)
- Transmission (Plug In Models)
- Transmission Components (Plug In Models)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 27-842593A01 | GASKET/SEAL SET, Engine Overhaul | 1 | ||||||
| - | 840816 | SEAL, Valve | 8 | ||||||
| - | 12-33181 | WASHER, (.375 x .812 x .062) Copper | 4 | ||||||
| - | 12-36533 | WASHER, (.328 x .562 x .0312) Copper | 4 | ||||||
| - | 25-20826 | 700-82280 | 525-25-20826 | O-RING, (2.230 x .139) | 1 | ||||
| - | 25-21836 | 676-9-76565 | O-RING, (.796 x .139) | 8 | |||||
| - | 25-26855 | 676-9-76541 | O-RING, (1.609 x .139) | 1 | |||||
| - | 25-32507 | O-RING, (3.359 x .139) | 1 | ||||||
| - | 25-33145 | 676-9-76547 | 700-82260 | O-RING, (1.984 x .139) | 1 | ||||
| - | 25-64945 | O-RING, (1.296 x .139) | 2 | ||||||
| - | 25-842375 | O-RING, (12.705 x .070) | 3 | ||||||
| - | 25-842390 | O-RING, (6.520 x .070) | 4 | ||||||
| - | 25-843863 | O-RING, (1.612 x .103) | 4 | ||||||
| - | 25-851889 | O-RING, Fuel Injectors | 32 | ||||||
| - | 25-892079 | O-RING, Orange - Boost Valve To Bracket | 1 | ||||||
| - | 26-69285 | SEAL, Valve | 8 | ||||||
| - | 26-822932 | SEAL, Camshaft Timing Cover | 1 | ||||||
| - | 26-822933 | SEAL, Camshaft Timing Cover | 1 | ||||||
| - | 26-841462 | SEAL SET, Rear Main (2 Per Set) | 1 | ||||||
| - | 27-54529 | 676-9-61601 | 700-30440 | GASKET, Timing Cover | 1 | ||||
| - | 27-818364 | GASKET, Thermostat | 1 | ||||||
| - | 27-842576 | GASKET, Exhaust | 2 | ||||||
| - | 27-842593 | GASKET, Cylinder Head | 2 | ||||||
| - | 27-842594 | GASKET, Intake | 2 | ||||||
| - | 27-848305 | GASKET SET, Oil Pan | 1 | ||||||
| - | 27-848382 | GASKET, Oil Cooler - Port | 1 | ||||||
| - | 27-848383 | GASKET, Oil Cooler - Starboard | 1 |
