Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superseded From |
Special Notes |

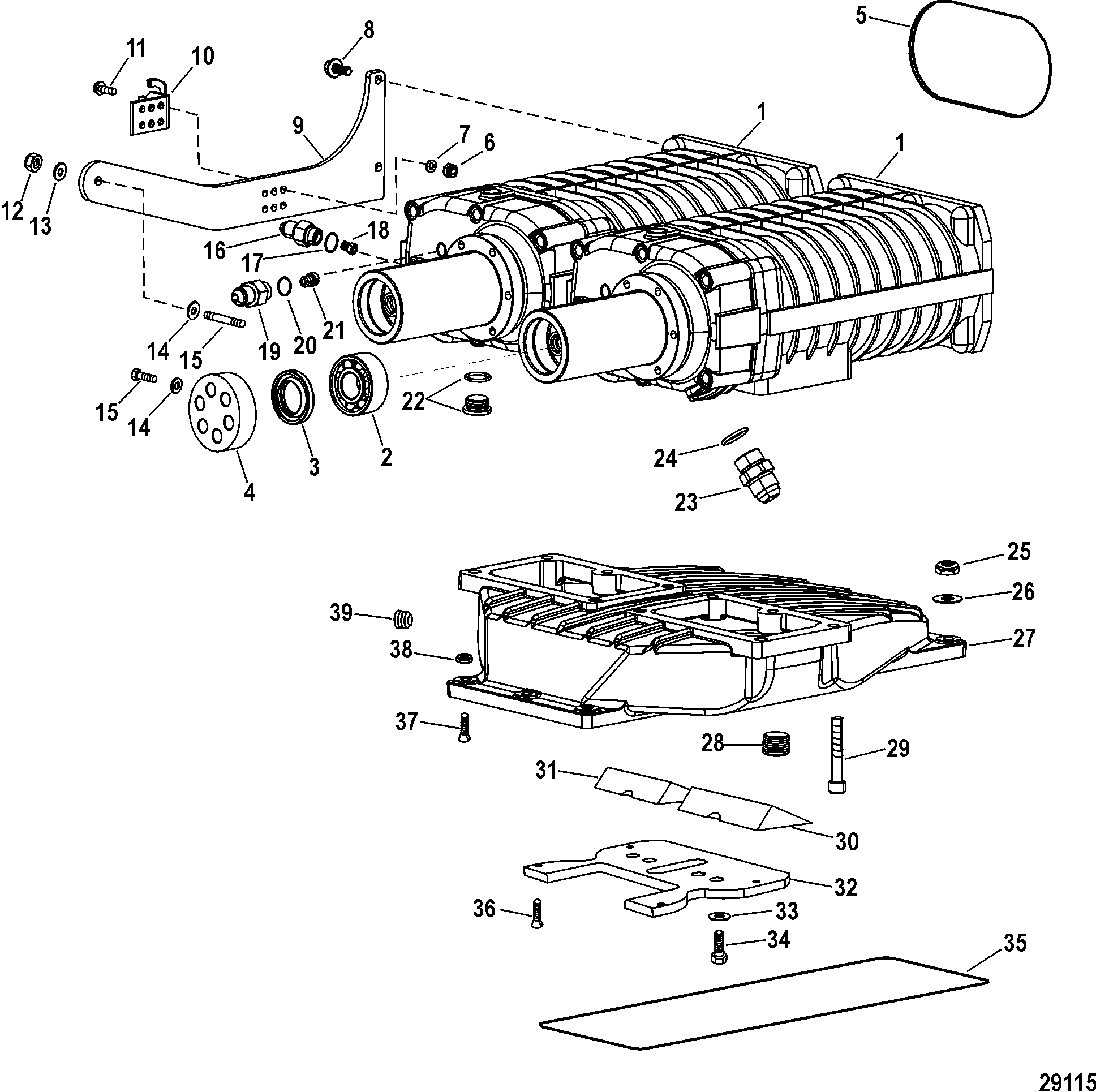

1 |
842867T05 |
|
|
|
|
SUPERCHARGER ASSEMBLY, Black |
2 |
|
NOTE: For Non Standard Paint Color - See Paint Color Chart For PPG Number |
2 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, Bearing |
4 |
|
This Part is not sold separately |
3 |
26-840013 |
|
|
|
|
SEAL, Supercharger Snout |
2 |
|
|
4 |
8M0029370 |
|
|
|
|
COUPLER |
2 |
|
|
5 |
25-842390 |
|
|
|
|
O-RING, (6.520 x .070) |
2 |
|
2 |
6 |
11-8267096 |
|
|
|
|
NUT, (#10-32) Stainless Steel |
2 |
|
|
7 |
12-30164 |
|
|
|
|
WASHER, (.192 x .375 x .0312) Stainless Steel |
2 |
|
|
8 |
10-817505 |
|
|
|
|
SCREW, (.250-20 x .620) Stainless Steel |
2 |
|
|
9 |
843508 |
|
|
|
|
PLATE, Throttle Cable |
1 |
|
|
10 |
807485T |
|
|
|
|
BRACKET ASSEMBLY |
1 |
|
|
11 |
10-89766 |
|
|
|
|
SCREW, (#10-32 x .620) Stainless Steel |
2 |
|
|
12 |
11-826709109 |
|
|
|
|
NUT, (.250-28) Stainless Steel |
1 |
|
|
13 |
12-35044 |
|
|
|
|
WASHER, (.281 x .625 x .065) Stainless Steel |
1 |
|
|
14 |
12-39143 |
|
|
|
|
WASHER, (.253 x .625 x .0937) |
1 |
|
Starboard Supercharger |
14 |
12-23243 |
|
|
|
|
WASHER, (.260 x .562 x .040) Brass |
1 |
|
Port Supercharger |
15 |
16-8M0034450 |
|
|
|
|
STUD, (.250-20/.250-28 x 1.01) |
1 |
16-12097 |
Starboard Supercharger |
15 |
10-805603 |
|
|
|
|
SCREW, (.250-20 x .500) |
1 |
|
Port Supercharger |
16 |
22-842350A03 |
|
|
|
|
FITTING ASSEMBLY, Oil Jet, On Side Of Snout |
2 |
|
|
17 |
25-805407 |
|
|
|
|
O-RING, (.346 x .075) |
2 |
|
|
18 |
841333 |
|
|
|
|
JET, (.023) |
2 |
|
|
19 |
22-842350A03 |
|
|
|
|
FITTING ASSEMBLY, Oil Jet, On Front Face Plate |
2 |
|
|
20 |
25-805407 |
|
|
|
|
O-RING, (.346 x .075) |
2 |
|
|
21 |
841334 |
|
|
|
|
JET, (.040) |
2 |
|
|
22 |
19-8M0000696 |
|
|
|
|
PLUG ASSEMBLY, Magnetic |
2 |
|
|
23 |
22-841826A01 |
|
|
|
|
FITTING ASSEMBLY, Fuel - Aluminum, Hose Assembly To Cylinder Head Fitting |
2 |
|
|
24 |
25-849088 |
|
|
|
|
O-RING, (.755 x .097) |
2 |
|
|
25 |
11-841810 |
|
|
|
|
NUT, (.312-24) 12 Point |
12 |
|
|
26 |
12-70132 |
|
|
|
|
WASHER, (.323 x .563 x .063) Stainless Steel |
12 |
|
|
27 |
842859001 |
|
|
|
|
MANIFOLD, Supercharger - Black |
1 |
|
NOTE: For Non Standard Paint Color - See Paint Color Chart For PPG Number |
28 |
22-845174 |
|
|
|
|
PLUG, (.500-14 x .610) Brass |
2 |
|
|
29 |
10-4008930 |
|
|
|
|
SCREW, (M8 x 30) Stainless Steel |
10 |
|
|
30 |
8M0012197 |
|
|
|
|
WEDGE BLOCK, Diffuser - Port |
1 |
|
|
31 |
8M0012189 |
|
|
|
|
WEDGE BLOCK, Diffuser - Starboard |
1 |
|
|
32 |
8M0012220 |
|
|
|
|
PLATE, Diffuser |
1 |
|
|
33 |
12-856774 |
|
|
|
|
WASHER, (.406 x .750 x .105) Stainless Steel |
4 |
|
|
34 |
10-96861 |
|
|
|
|
SCREW, (.375-16 x 1.125) |
4 |
|
|
35 |
25-842375 |
|
|
|
|
O-RING, (12.705 x .070) |
1 |
|
2 |
36 |
10-843820 |
|
|
|
|
SCREW, (.250-20 x 1.00) |
4 |
|
|
37 |
10-843820 |
|
|
|
|
SCREW, (.250-20 x 1.00) |
2 |
|
|
38 |
11-8267098 |
|
|
|
|
NUT, (.250-20) Stainless Steel |
2 |
|
|
39 |
22-12524 |
|
|
|
|
PLUG, (.375-18 x .475) Brass |
1 |
|
|
- |
27-842593A01 |
|
|
|
|
GASKET/SEAL SET, Engine Overhaul |
1 |
|
NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing |
