1075 SCi - Serial 0M962886 and Up - Intake Components (Water Intercooler)

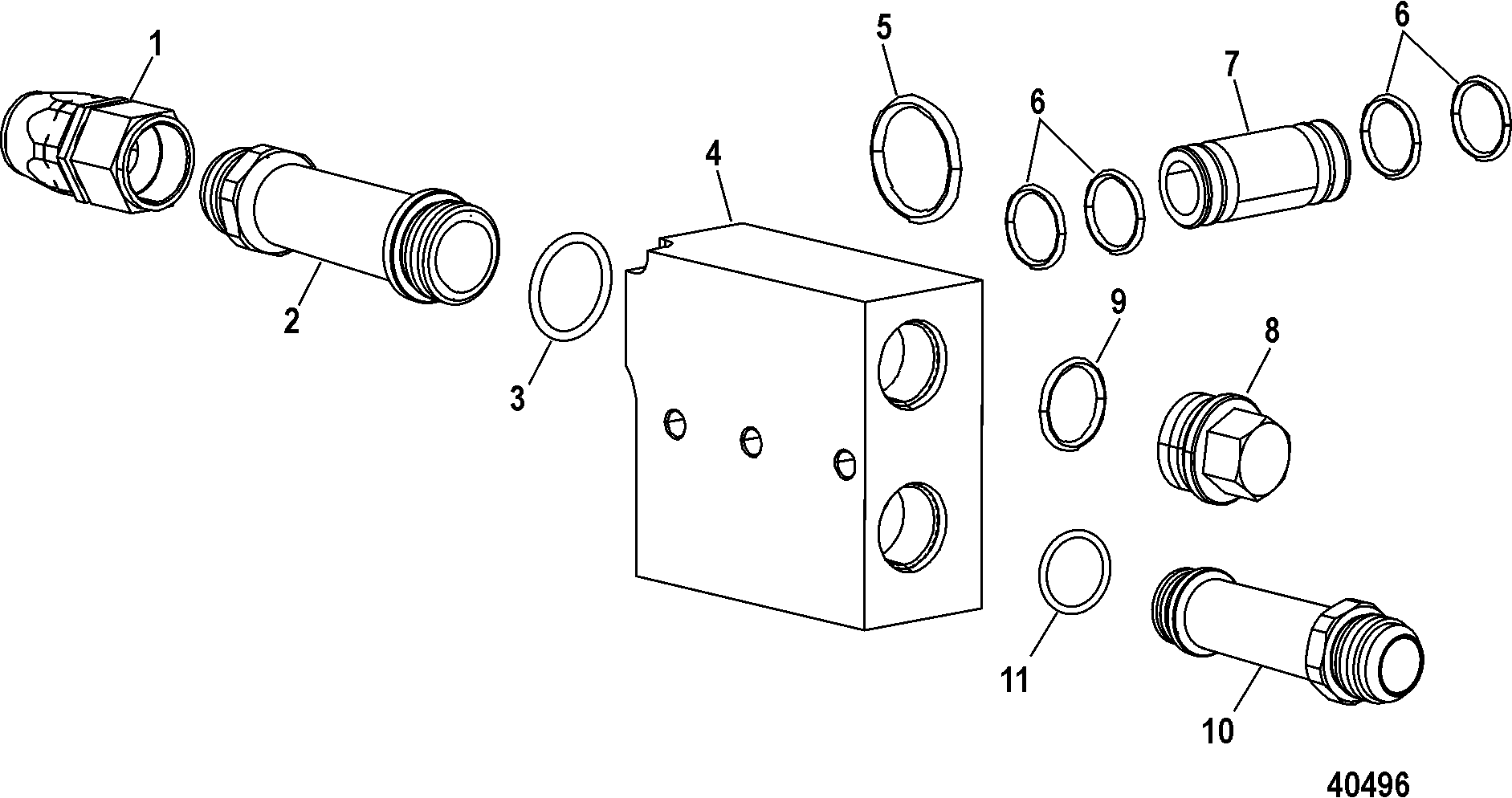

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator And Sea Water Pump Mounting
- Cooling (Water Hoses And Fittings - Port)
- Cooling (Water Hoses And Fittings - Starboard)
- Cooling Components (Sea Water Pump)
- Cooling Components (Water Thermostat Housing)
- Electrical Components (Ignition Coils)
- Electrical Components (Mounting Box)
- Electrical Components (Starter Motor)
- Electrical Components (Wiring)
- Engine Components (Crankshaft - Pistons - Connecting Rods)
- Engine Components (Cylinder Block)
- Engine Components (Cylinder Head)
- Engine Components (Drive Belt)
- Engine Components (Front Cover And Camshaft)
- Engine Components (Water Pump)
- Filter Kit (Remote) (Water - Fuel Separating)
- Flywheel Housing And Components
- Fuel Line Components
- Fuel Pump (Remote)
- Fuse Harness Kit (879365A20)
- Gasket -Seal Set - Engine Overhaul (27-842593A01)
- Intake Components (Air Plenum And Flame Arrestor)
- Intake Components (Boost Valve)
- Intake Components (Manifold)
- Intake Components (Supercharger) (1200)
- Intake Components (Supercharger) (850 -1075)
- Intake Components (Water Intercooler)
- Mount Plates (Engine)
- Oil Cooler - Transmission
- Oil Filter Adaptor And Components
- Oil Hoses And Fittings (Port Side View)
- Oil Hoses And Fittings (Starboard Side View)
- Oil Pan And Oil Pump
- Oil Tank And Breather Assembly (Remote)
- Paint Color Chart
- Power-Assisted Steering Components
- Reservoir Bottle (Transmission Fluid)
- Rigging Kit (Dual Engines)
- Rigging Kit (Quad Engines)
- Rigging Kit (Single Engine)
- Rigging Kit (Triple Engines)
- Tool List (Special - Engine)
- Transmission (Driveline Models)
- Transmission (Plug In Models)
- Transmission Components (Plug In Models)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superseded From | Special Notes |
| 1 | 22-84762816 | FITTING, Straight | 1 | ||||||
| 2 | 22-8M0032578 | FITTING ASSEMBLY, (5.290) Aluminum - Black | 1 | ||||||
| 3 | 25-843858 | O-RING, (1.188 x .125) | 1 | SN# 0M961118 & Up | |||||
| 4 | 8M0050841 | HOUSING, Water Intercooler | 1 | 842611 | |||||
| 5 | 25-64945 | O-RING, (1.296 x .139) | 2 | 2 | |||||
| 6 | 25-21836 | 676-9-76565 | O-RING, (.796 x .139) | 8 | 2 | ||||
| 7 | 22-842600 | FITTING | 2 | ||||||
| 8 | 22-840018A01 | PLUG ASSEMBLY | 1 | ||||||
| 9 | 25-843858 | O-RING, (1.188 x .125) | 1 | ||||||
| 10 | 22-8M0032578 | FITTING ASSEMBLY, (5.290) Aluminum - Black | 1 | ||||||
| 11 | 25-843858 | O-RING, (1.188 x .125) | 1 | ||||||
| - | 27-842593A01 | GASKET/SEAL SET, Engine Overhaul | 1 | NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing |
