1200 SCi - Serial 0M956534 Thru 0M962885 - Engine Components (Crankshaft - Pistons - Connecting Rods)

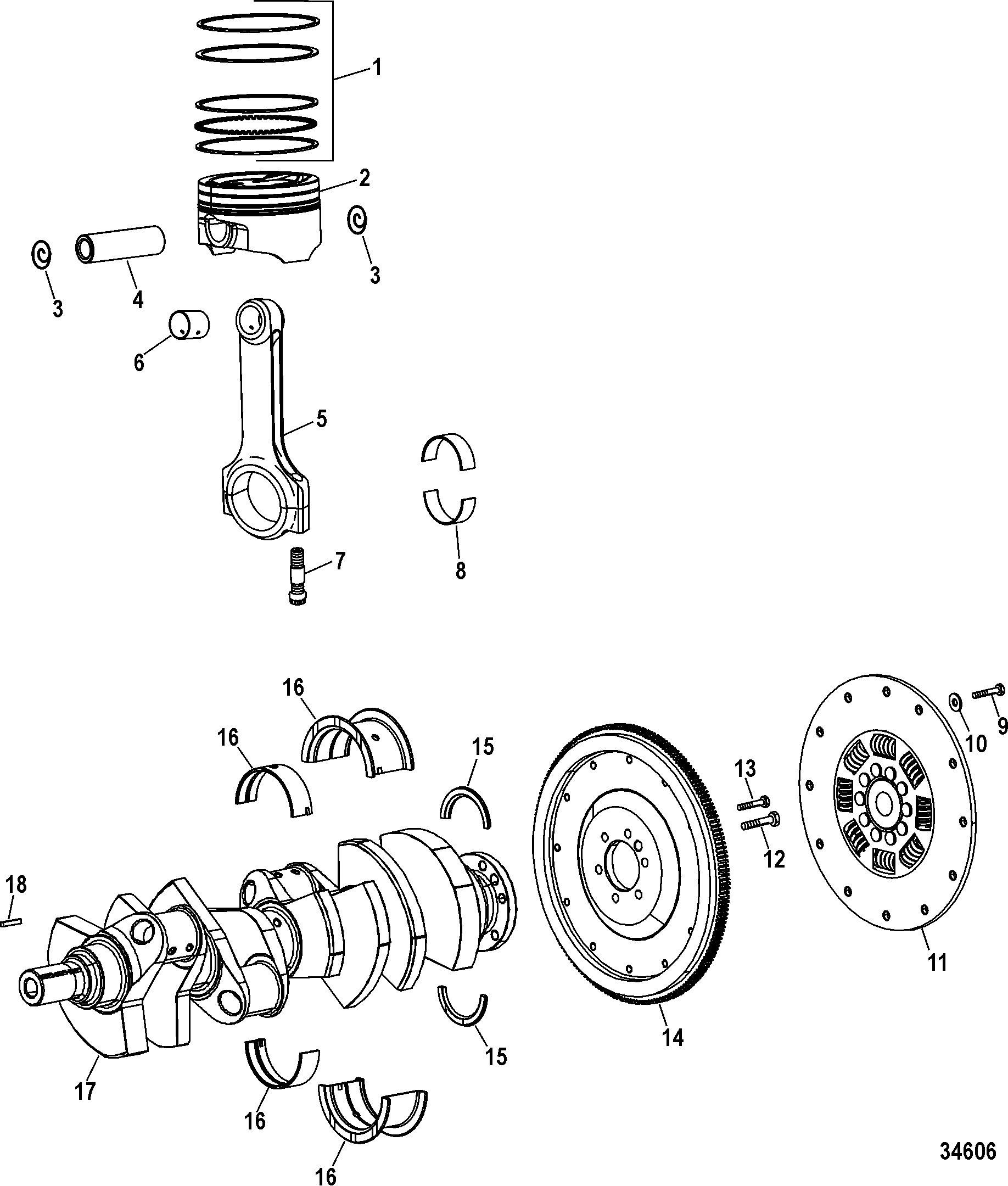

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator And Sea Water Pump Mounting
- Cooling (Water Hoses And Fittings - Port)
- Cooling (Water Hoses And Fittings - Starboard)
- Cooling Components (Sea Water Pump)
- Cooling Components (Water Thermostat Housing)
- Electrical Components (Ignition Coils)
- Electrical Components (Mounting Box)
- Electrical Components (Starter Motor)
- Electrical Components (Wiring)
- Engine Components (Crankshaft - Pistons - Connecting Rods)
- Engine Components (Cylinder Block)
- Engine Components (Cylinder Head)
- Engine Components (Drive Belt) (0M956534 Thru 0M958746)
- Engine Components (Drive Belt) (0M958747 And Up)
- Engine Components (Front Cover And Camshaft)
- Engine Components (Water Pump)
- Filter Kit (Remote) (Water - Fuel Separating)
- Flywheel Housing And Components
- Fuel Line Components
- Fuel Pump (Remote)
- Fuse Harness Kit (879365A20)
- Gasket-Seal Set - Engine Overhaul (27-842593A01)
- Intake Components (Air Plenum And Flame Arrestor)
- Intake Components (Boost Valve)
- Intake Components (Manifold)
- Intake Components (Supercharger)
- Intake Components (Water Intercooler)
- Mount Plates (Engine)
- Oil Cooler - Transmission
- Oil Filter Adaptor And Components
- Oil Hoses And Fittings (Port Side View)
- Oil Hoses And Fittings (Starboard Side View)
- Oil Pan And Oil Pump
- Oil Tank And Breather Assembly (Remote)
- Paint Color Chart
- Power-Assisted Steering Components (Design I)
- Power-Assisted Steering Components (Design II)
- Power-Assisted Steering Components (Design III)
- Reservoir Bottle (Transmission Fluid)
- Rigging Kit (Dual Engines)
- Rigging Kit (Quad Engines)
- Rigging Kit (Single Engine)
- Rigging Kit (Triple Engines)
- Tool List (Special - Engine)
- Transmission (Driveline Models)
- Transmission (Plug In Models)
- Transmission Components (Plug In Models)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superseded From | Special Notes |
| 1 | 39-847684T01 | RING KIT, Piston | 1 | 5 | |||||
| 2 | 2700-842604A06 | PISTON KIT, Standard | 8 | NOTE: Part Honed To Match Piston Pin 5 | |||||
| 2 | 2700-842604A01 | PISTON KIT, .001 Oversize | AR | ||||||
| 2 | 2700-842604A02 | PISTON KIT, .002 Oversize | AR | ||||||
| 2 | 2700-842604A03 | PISTON KIT, .003 Oversize | AR | ||||||
| 2 | 2700-842604A04 | PISTON KIT, .004 Oversize | AR | ||||||
| 2 | 2700-842604A05 | PISTON KIT, .005 Oversize | AR | ||||||
| 2 | 700-8M8027318 | PISTON ASSEMBLY, (.030 Oversize) | AR | ||||||
| 3 | 843377 | SPIRO LOCK | 16 | (Not Included with .030 Oversize) 5 | |||||
| 4 | 41-840620 | PIN, Piston | 8 | 5 | |||||
| 5 | 622-8M0008423 | CONNECTING ROD ASSEMBLY | 8 | 5 | |||||
| 6 | 622-8M0008423 | BUSHING | 8 | 841338 | 5 | ||||
| 7 | 10-843922 | SCREW, Special | 16 | 5 | |||||
| 8 | 23-8M0030217 | BEARING SET, Connecting Rod - Standard | 8 | 5 | |||||
| 8 | 23-8M0030218 | BEARING SET, Connecting Rod - .001 Oversize | AR | ||||||
| 8 | 23-8M0030216 | BEARING SET, Connecting Rod - .001 Undersize | AR | ||||||
| 8 | 23-8M0030982 | BEARING SET, Connecting Rod - .010 Undersize | AR | ||||||
| 9 | 10-35091 | SCREW, (.375-16 x 1.00) | 12 | ||||||
| 10 | 12-822838 | WASHER, (.401 x .745 x .097) | 12 | ||||||
| 11 | 8M0050119 | DRIVEPLATE ASSEMBLY | 1 | 842554A1 | |||||
| 12 | 10-848228 | SCREW, (.500-20 x 1.06) | 1 | 5 | |||||
| 13 | 10-8M0009552 | SCREW, (.437-20 x 1.00) 12 Point | 6 | 5 | |||||
| 14 | 230-8M0050926 | FLYWHEEL | 1 | 230-742414 | 5 | ||||
| 15 | 26-841462 | SEAL SET, Rear Main (2 Per Set) | 1 | 2,5 | |||||
| 16 | 8M0051198 | BEARING SET, Main - Standard | 1 | 23-842400 | 5 | ||||
| 16 | 8M0053743 | BEARING SET, Main - .001 Oversize | AR | 23-842401 | |||||
| 16 | 23-842402 | BEARING SET, Main - .001 Undersize | AR | ||||||
| 16 | 23-8M0053549 | BEARING SET, Main - .010 Undersize | AR | 23-842403 | |||||
| 17 | 8M0050398 | CRANKSHAFT | 1 | 484-840035 | 5 | ||||
| 18 | 28-34466 | KEY | 3 | 5 | |||||
| - | 27-842593A01 | GASKET/SEAL SET, Engine Overhaul | 1 | NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing | |||||
| - | 841350A07 | PARTIAL ENGINE ASSEMBLY | 1 | 850 | |||||
| - | 841000A17 | PARTIAL ENGINE ASSEMBLY | 1 | 1025/1075 | |||||
| - | 841950A07 | PARTIAL ENGINE ASSEMBLY | 1 | 1200 |
