1200 SCi - Serial 0M956534 Thru 0M962885 - Engine Components (Drive Belt) (0M956534 Thru 0M958746)

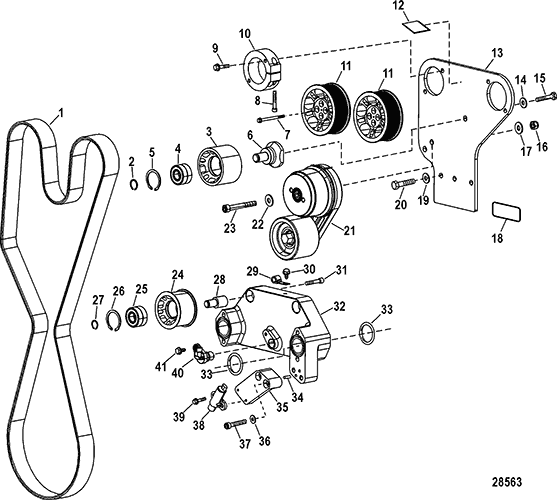

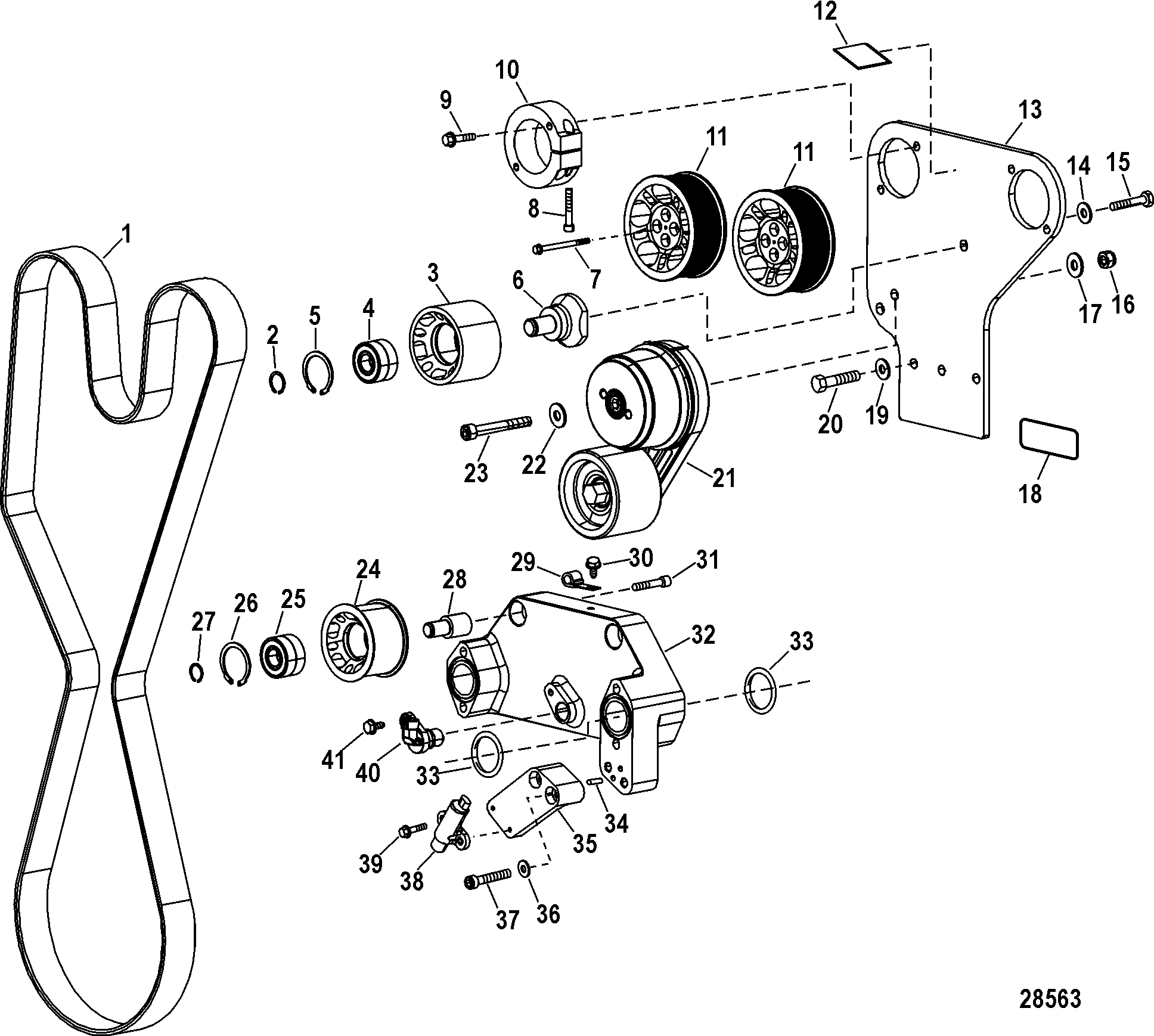

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superseded From Special Notes
1 57-842615



BELT, Serpentine 1
SN# 0M957032 THRU 0M960972
2 53-52562



RING, Retaining 1

3 899898T61



PULLEY ASSEMBLY, Idler - Polished/Clear Coat 1

4 30-33451



BEARING, Ball 2

5 53-18917



RING, Retaining 1

6 17-8M0051208



PIN, Idler 1 17-842873001
7 10-841339



SCREW, (M6 x 16) Stainless Steel 8

8 10-823029



SCREW, (.312-18 x 1.500) Stainless Steel 2

9 10-F430732



SCREW, (.312-18 x 1.250) Stainless Steel 4

10 843536002



CLAMP, Blower Snout 2

11 899898T64



PULLEY, Supercharger - Polished/Clear Coat 2

12 37-859271T05



EMBLEM, Smartcraft 1

13 842612



PLATE, Blower Drive 1

14 12-861854



WASHER, (.453 x .750 x .032) Stainless Steel 1

15 10-90042



SCREW, (.437-14 x 1.500) Stainless Steel 1
No longer made, limited availability
16 11-4013610



NUT, (M10) Stainless Steel 1

17 12-8M0027716



WASHER, (.390 x .600 x .032) Stainless Steel 1

18 8M0042973



DECAL, Engine Specifications 1 37-841369
19 12-37828



WASHER, (.390 x .625 x .062) Stainless Steel 3

20 10-849397



SCREW, (.375-16 x 3.250) Stainless Steel 3

21 8M0052633



TENSIONER ASSEMBLY, Serpentine Belt - Black 1 842602A02 SN# 0M957032 THRU 0M960972
22 12-326481



WASHER, (.450 x .690 x .090) 1

23 10-4009080



SCREW, (M10 x 80) Stainless Steel 1

24 899898T78



PULLEY ASSEMBLY, Polished/Clear Coat 2

25 30-33451



BEARING, Ball 4

26 53-18917



RING, Retaining 2

27 53-52562



RING, Retaining 2

28 17-842876



PIN, Idler 2

29 54-54457



J CLIP 1

30 10-817505



SCREW, (.250-20 x .620) Stainless Steel 1

31 10-79436



SCREW, (.312-18 x 1.250) Stainless Steel 2

32 899898T77



HOUSING, Water Inlet - Bronze - Black 1

33 25-843863



O-RING, (1.612 x .103) 4
2
34 17-48450



PIN, Dowel 2

35 843852001



BRACKET, Crankshaft Sensor 1

36 12-8M0027716



WASHER, (.390 x .600 x .032) Stainless Steel 2

37 10-822168



SCREW, (.375-16 x 1.750) Stainless Steel 2

38 8283582



SENSOR, Crankshaft 1

39 10-4010516



SCREW, (M5 x 16) Stainless Steel 2

40 8M0011986



SENSOR ASSEMBLY 1 880609001
41 10-817505



SCREW, (.250-20 x .620) Stainless Steel 1

- 27-842593A01



GASKET/SEAL SET, Engine Overhaul 1
NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing
