1200 SCi - Serial 0M962886 and Up - Oil Hoses And Fittings (Port Side View)

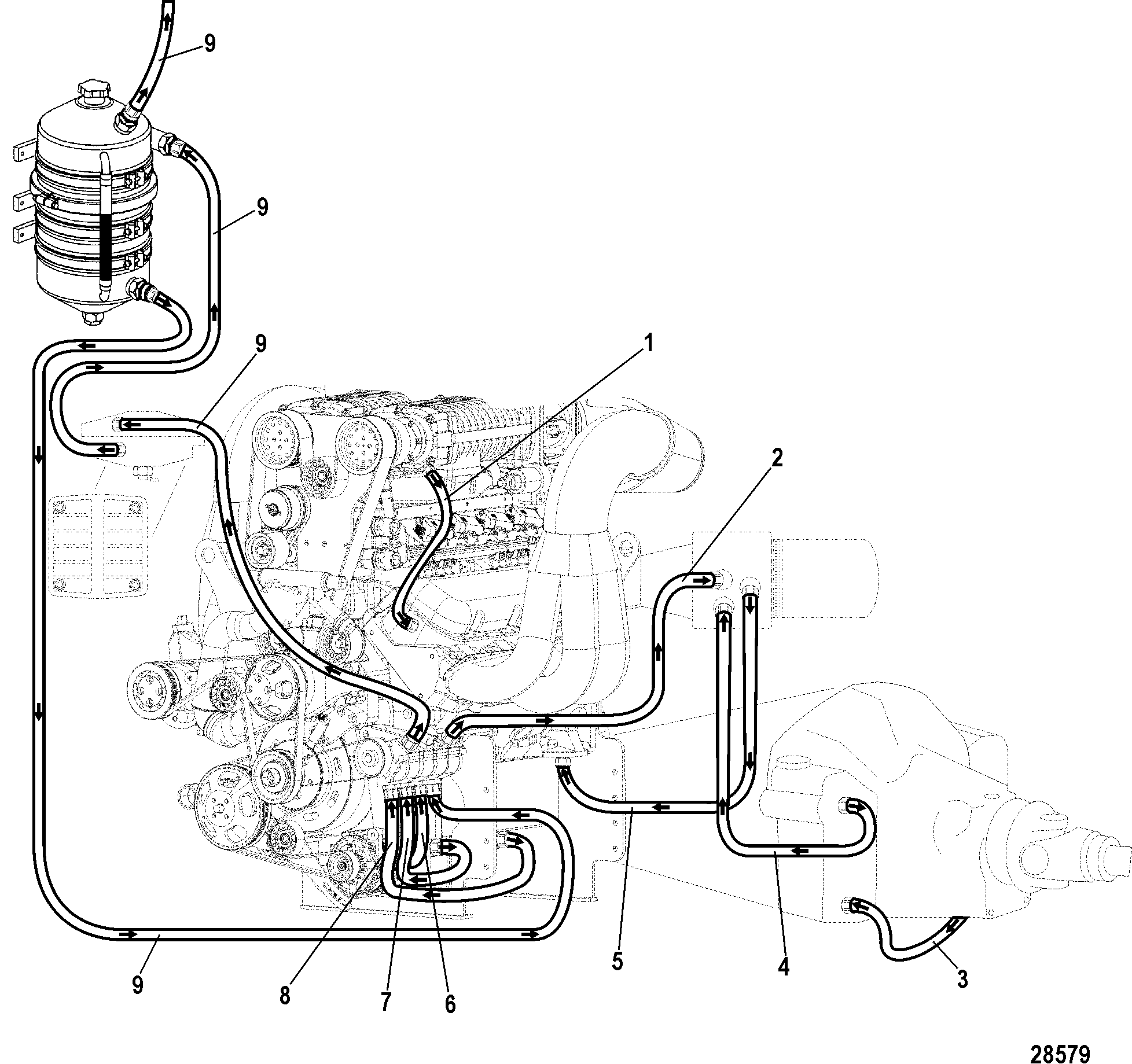

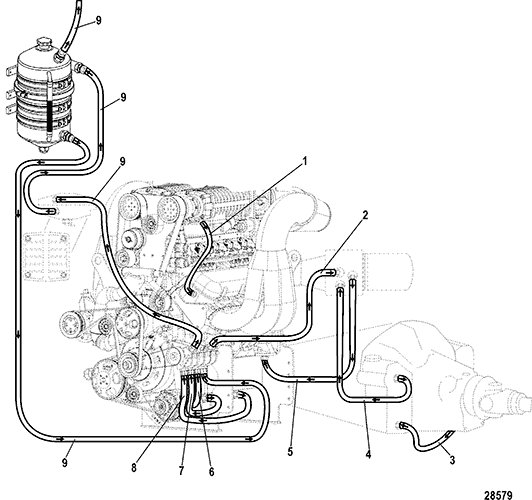

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superseded From Special Notes
1 32-8M0010771



HOSE ASSEMBLY, (10.75 Inches), Port And Starboard 2

2 8M0042172



HOSE ASSEMBLY, (27.38 Inches) 1 32-8M0010799
3 32-8M0042167



HOSE ASSEMBLY, (19.50 Inches) 1 32-8M0010794
4 8M0042168



HOSE ASSEMBLY, (13.00 Inches) 1 32-8M0010795
5 8M0042164



HOSE ASSEMBLY, (16.25 Inches) 1 32-8M0010791
6 8M0042169



HOSE ASSEMBLY, (11.00 Inches) 1 32-8M0010796
7 8M0042170



HOSE ASSEMBLY, (20.75 Inches) 1 32-8M0010797
8 8M0042171



HOSE ASSEMBLY, (30.00 Inches) 1 32-8M0010798
9 BOATPART



SEE BOAT MANUFACTURER, Hoses AR
