1200 SCi - Serial 0M962886 and Up - Transmission (Plug In Models)

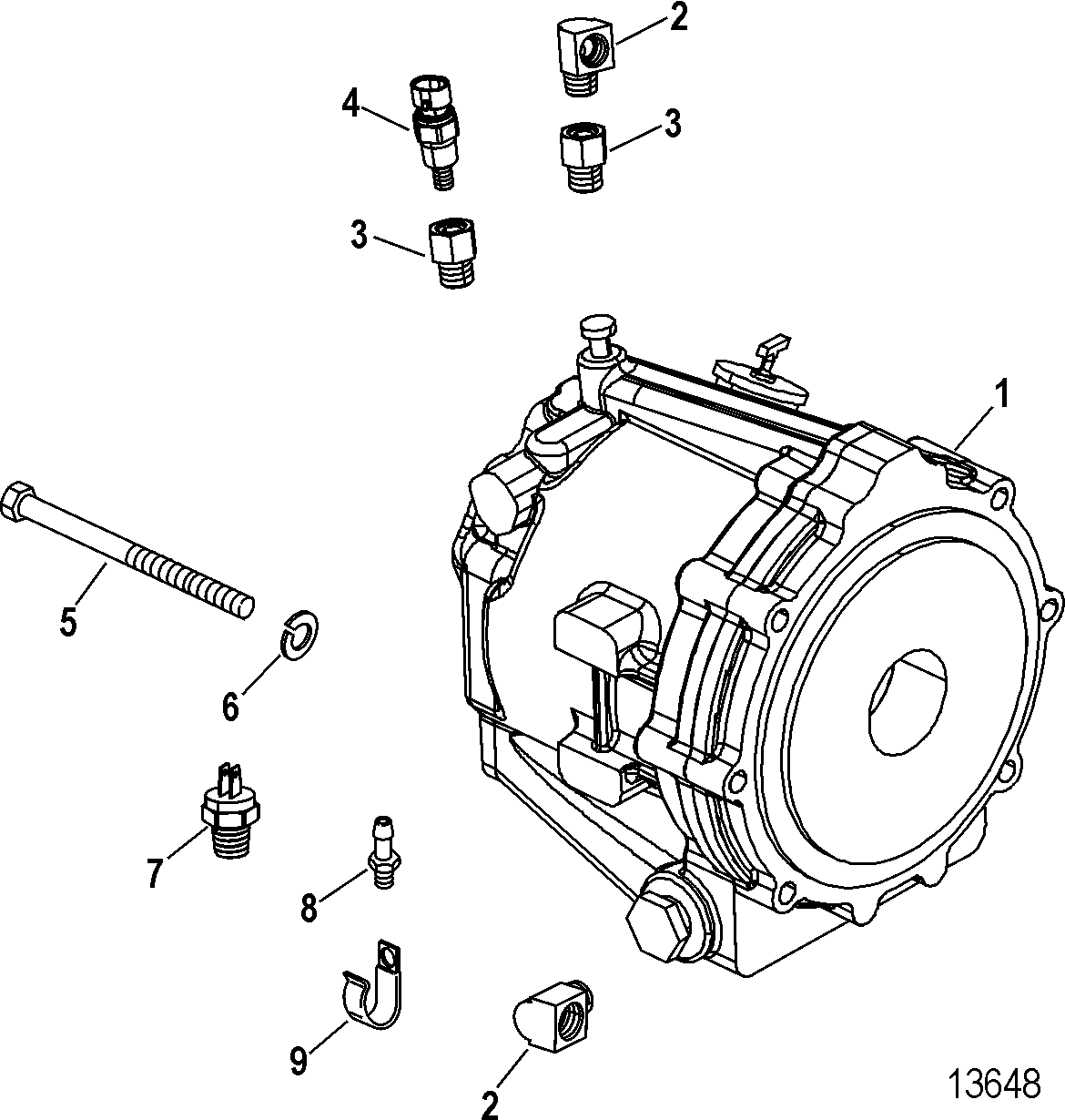

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 841919A05         TRANSMISSION ASSEMBLY, Complete 1
1 841919A03



TRANSMISSION ASSEMBLY 1
2 22-47629



ELBOW, 90 Degree, Transmission To Oil Hose 2
3 22-88517



FITTING, Reducing 2
4 805218T
676-9-42402

SENSOR, Temperature 1
5 10-60179



SCREW, (.437-14 x 3.500) 6
6 13-32993



LOCKWASHER, (.437) 6
7 47613



SWITCH, Neutral Safety 1
8 22-63186



FITTING, (.125-27) 1
9 54-47483



J CLIP 1
