| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

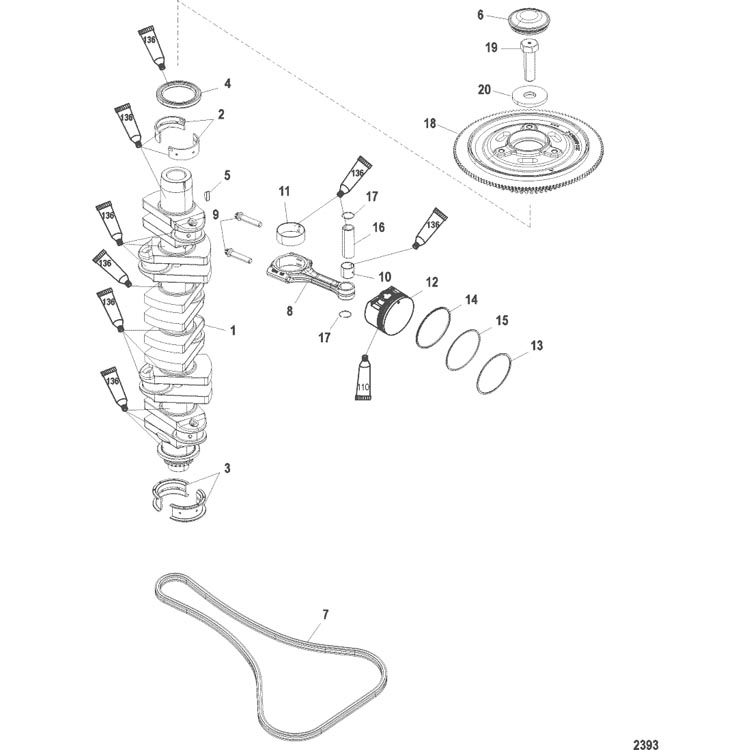

| 1 |
400-891644A04 |
|
|
|
|
CRANKSHAFT ASSEMBLY |
1 |
|
|
| 2 |
23-897498T01 |
|
|
|
|
BEARING, Green-Upper Crankshaft |
12/AR |
895715T01 |
|
| 2 |
23-897498T02 |
|
|
|
|
BEARING, Navy Blue-Upper Crankshaft |
12/AR |
895715T02 |
|
| 2 |
23-897498T03 |
|
|
|
|
BEARING, White-Upper Crankshaft |
12/AR |
895715T03 |
|
| 2 |
23-897498T04 |
|
|
|
|
BEARING, Orange-Upper Crankshaft |
12/AR |
895715T04 |
|
| 3 |
23-892309T01 |
|
|
|
|
BEARING, Thrust-Green-Lower Crankshaft |
2/AR |
895716T01 |
|
| 3 |
23-892309T02 |
|
|
|
|
BEARING, Thrust-Navy Blue-Lower Crankshaft |
2/AR |
895716T02 |
|
| 3 |
23-892309T03 |
|
|
|
|
BEARING, Thrust-White-Lower Crankshaft |
2/AR |
895716T03 |
|
| 3 |
23-895716T04 |
|
|
|
|
BEARING, Thrust-Orange-Lower Crankshaft |
2/AR |
|
|
| 4 |
26-8M0032912 |
|
|
|
|
SEAL, Top Main Bearing |
1 |
8805251 |
|
| 5 |
28-91800 |
|
|
|
|
KEY, Woodruff |
1 |
|
|
| 6 |
19-885348 |
|
|
|
|
CAP, Flywheel Bolt |
1 |
|
|
| 7 |
897797A02 |
|
|
|
|
CHAIN |
1 |
|
No Longer Available |
| 8 |
662-881210T02 |
|
|
|
|
CONNECTING ROD ASSEMBLY |
6 |
|
|
| 9 |
10-884441 |
|
|
|
|
BOLT |
12 |
|
|
| 10 |
23-881211 |
|
|
|
|
BUSHING |
6 |
|
|
| 11 |
23-892005A01 |
|
|
|
|
BEARING, Connecting Rod - Blue |
12/AR |
|
|
| 11 |
23-892005A02 |
|
|
|
|
BEARING, Connecting Rod - White |
12/AR |
|
|
| 11 |
23-892005A03 |
|
|
|
|
BEARING, Connecting Rod - Orange |
12/AR |
|
|
| 12 |
700-897737A04 |
|
|
|
|
PISTON ASSEMBLY |
6 |
896092T01 |
|
| 13 |
39-881180A02 |
|
|
|
|
RING SET, Piston |
1 |
881180A01 |
|
| 14 |
NSS |
|
|
|
|
Piston Ring-Oil |
6 |
|
No Sold Separate |
| 15 |
NSS |
|
|
|
|
Piston Ring-2nd |
6 |
|
No Sold Separate |
| 16 |
NSS |
|
|
|
|
Piston Pin |
6 |
|
No Sold Separate |
| 17 |
40-881184 |
|
|
|
|
CIRCLIP |
12 |
|
|
| 18 |
200-888983T03 |
|
|
|
|
FLYWHEEL |
1 |
888983T02 |
|
| 19 |
10-880515 |
|
|
|
|
BOLT, (M20 x 68 MM) |
1 |
|
|
| 20 |
12-880517 |
|
|
|
|
WASHER |
1 |
|
|
| - |
27-880552A07 |
|
|
|
|
GASKET SET, Powerhead |
1 |
880552A05 |
|
| - |
61-895247R06 |
|
|
|
|
POWERHEAD ASSEMBLY |
1 |
895247A05 |
|
