| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| - |
NSS |
|
|
|
|

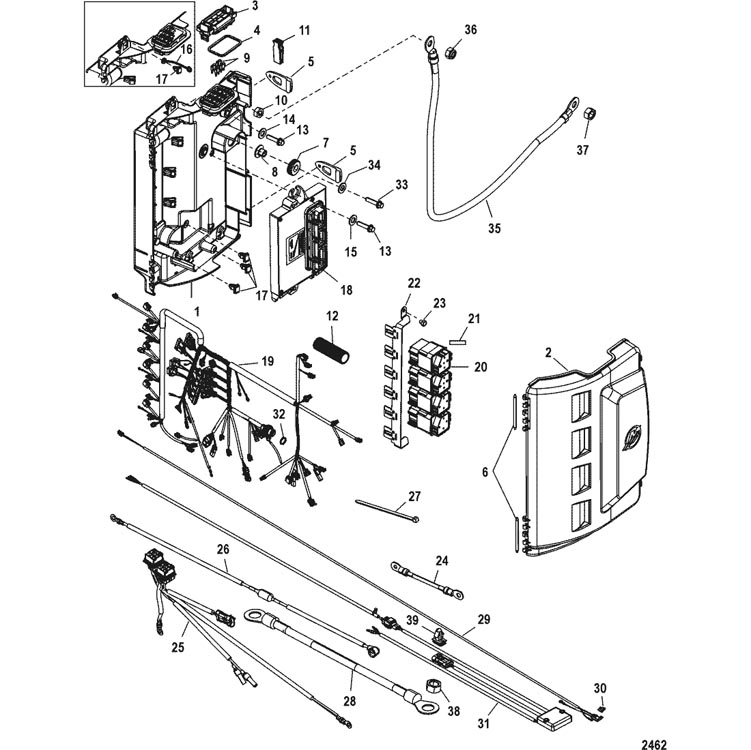

Electrical Box-Complete |
1 |
|
Not Sold Separate |
| - |
NSS |
|
|
|
|
Electrical Box |
1 |
|
Not Sold Separate |
| 1 |
885560T03 |
|
|
|
|
BASE, Electricl box |
1 |
885560T01 |
|
| 2 |
885561T |
|
|
|
|
COVER, Fuse Box |
1 |
|
|
| 3 |
888491 |
|
|
|
|
COVER |
1 |
|
|
| 4 |
25-885583 |
|
|
|
|
SEAL |
1 |
|
|
| 5 |
889531 |
|
|
|
|
STRAP |
2 |
|
|
| 6 |
885584 |
|
|
|
|
PIN, Hinge |
2 |
|
|
| 7 |
25-833155 |
|
|
|
|
GROMMET |
1 |
|
|
| 8 |
23-8502341 |
|
|
|
|
BUSHING |
1 |
|
|
| 9 |
88-832969T20 |
|
|
|
|
FUSE, Mini - Yellow - 20 Ampere |
7 |
83296920 |
|
| 10 |
11-400213 |
|
|
|
|
NUT, (M8) Stainless Steel |
1 |
|
|
| 11 |
895099 |
|
|
|
|
EXTRACTOR, Fuse |
1 |
|
|
| 12 |
32-828547753 |
|
|
|
|
CONDUIT, (.750 Inside Diameter x 3.00 Feet Bulk) |
1 |
|
|
| 13 |
10-40011146 |
|
|
|
|
SCREW, (M8 x 13) Stainless Steel |
2 |
|
|
| 14 |
12-843108 |
|
|
|
|
WASHER, (.330 x .560 x .060) Stainless Steel |
1 |
|
|
| 15 |
12-817274 |
|
|
|
|
WASHER, (.344 x 1.00 x .063) Stainless Steel |
1 |
|
|
| 16 |
892244 |
|
|
|
|
STRAP, Cover |
1 |
|
|
| 17 |
54-892448 |
|
|
|
|
CLIP |
5 |
|
|
| 18 |
89790717T |
|
|
|
|
PCM, Propulsion Control Module |
1 |
88555802T |
|
| 18 |
89790718T |
|
|
|
|
PCM, Propulsion Control Module |
1 |
88555803T |
|
| 18 |
89790719T |
|
|
|
|
PCM, Propulsion Control Module |
1 |
88555814T |
|
| 18 |
89790720T |
|
|
|
|
PCM, Propulsion Control Module |
1 |
88555815T |
|
| 19 |
84-880616T04 |
|
|
|
|
HARNESS ASSEMBLY, Engine |
1 |
|
|
| - |
NSS |
|
|
|
|
Relay Bracket Assembly |
1 |
|
Not Sold Separate |
| 20 |
882751A04 |
|
676-9-15213 |
|
|
RELAY ASSEMBLY |
4 |
|
|
| 21 |
NSS |
|
|
|
|
Decal |
4 |
|
Not Sold Separate |
| 22 |
889532 |
|
|
|
|
BRACKET |
1 |
|
|
| 23 |
10-40007103 |
|
|
|
|
SCREW, (M5 x 6) |
2 |
|
|
| 24 |
84-93388A17 |
|
|
|
|
CABLE ASSEMBLY, (8.50 Inches) |
1 |
|
|
| 25 |
84-879345T34 |
|
|
|
|
HARNESS ASSEMBLY, Trim |
1 |
819514A20 |
|
| 26 |
84-892137A02 |
|
|
|
|
HARNESS ASSEMBLY, Fuse |
1 |
892137A01 |
|
| 27 |
54-850181 |
|
|
|
|
TIE STRAP, (11.750 Inches) |
6 |
|
|
| 27 |
54-816311T |
|
|
|
|
TIE STRAP, (8.00 Inches) |
AR |
|
|
| 28 |
84-88439A26 |
|
|
|
|
CABLE ASSEMBLY, Battery - Negative |
1 |
|
|
| 29 |
84-888416T04 |
|
|
|
|
HARNESS ASSEMBLY, CHI Power |
1 |
888416A1 |
|
| 30 |
862646 |
|
|
|
|
FUSE, Tan - 5 Ampere |
1 |
|
|
| 31 |
84-883459T01 |
|
|
|
|
HARNESS ASSEMBLY, DBW Boat Adaptor |
1 |
883459A1 |
|
| 32 |
11-889664 |
|
|
|
|
NUT, (1.500-18) Black Nylon |
1 |
|
|
| 33 |
10-88552635 |
|
|
|
|
SCREW, (M8 x 35 MM) |
1 |
|
|
| 34 |
12-817274 |
|
|
|
|
WASHER, (.344 x 1.00 x .063) Stainless Steel |
1 |
|
|
| 35 |
84-88439A25 |
|
|
|
|
CABLE ASSEMBLY, Battery - Positive |
1 |
|
|
| 36 |
11-401388 |
|
|
|
|
NUT, (M8) Stainless Steel |
5 |
|
|
| 37 |
11-86226 |
|
|
|
|
NUT, (.375-16), Battery Cable-Positive |
1 |
|
|
| 38 |
11-68292 |
|
|
|
|
NUT, (.312-18), Battery Cable-Negative |
1 |
|
|
| 39 |
54-879962 |
|
|
|
|
CLIP |
1 |
|
|
