| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| - |
NSS |
|
|
|
|

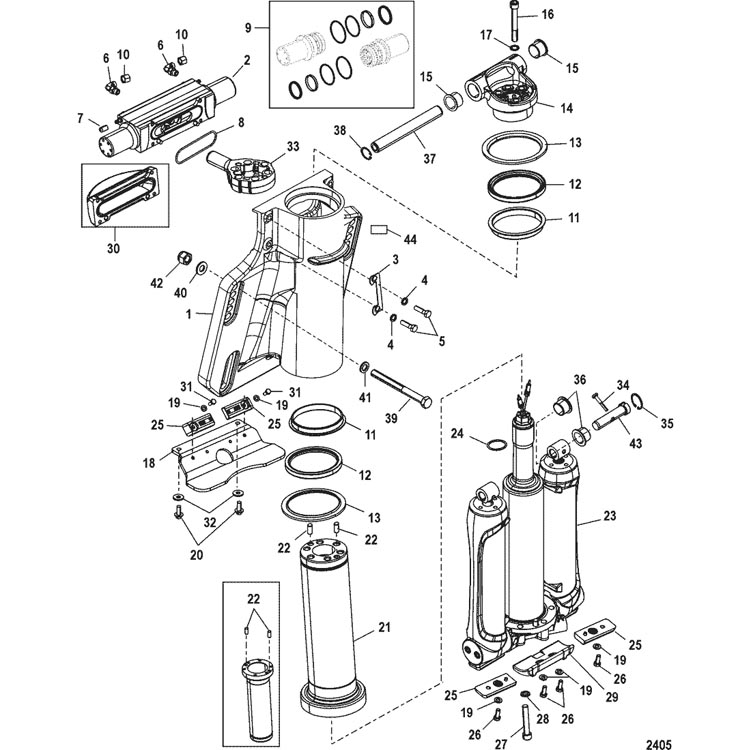

Transom Assembly |
1 |
|
Not Sold Separate |
| 1 |
880652T |
|
|
|
|
PEDESTAL |
1 |
|
No Longer Available |
| 2 |
896500A01 |
|
|
|
|
STEERING CYLINDER KIT |
1 |
|
|
| 3 |
893409 |
|
|
|
|
RETAINER |
2 |
|
|
| 4 |
12-895853 |
|
|
|
|
WASHER |
4 |
|
|
| 5 |
10-88509530 |
|
|
|
|
SCREW, (M8 x 30) |
4 |
|
|
| 6 |
22-889552 |
|
|
|
|
ELBOW |
1 |
|
|
| 7 |
889550 |
|
|
|
|
CAP, Bleeder - Vinyl |
2 |
|
|
| 8 |
26-880667 |
|
|
|
|
SEAL |
1 |
|
|
| 9 |
8M0045604 |
|
|
|
|
SEAL KIT, Steering Cylinder |
1 |
896173A01 |
|
| 10 |
22-892524 |
|
|
|
|
CAP, Fitting |
2 |
|
|
| 11 |
31-8806621 |
|
|
|
|
BEARING |
2 |
|
|
| 12 |
26-880661 |
|
|
|
|
SEAL |
2 |
|
|
| 13 |
31-8806561 |
|
|
|
|
BEARING |
2 |
|
|
| 14 |
880654T03 |
|
|
|
|
HEAD, Steering |
1 |
|
No Longer Available |
| 15 |
31-8806551 |
|
|
|
|
BEARING, (1.25 Inch) |
2 |
|
|
| 16 |
10-885094105 |
|
|
|
|
SCREW, (M14 x 105) |
6 |
|
|
| 17 |
12-885112 |
|
|
|
|
WASHER |
6 |
|
|
| 18 |
896120T |
|
|
|
|
PLATE, Deflector (Silver) |
1 |
|
|
| 19 |
12-889545 |
|
|
|
|
WASHER |
6 |
|
|
| 20 |
10-4010720 |
|
|
|
|
SCREW, (M8 x 20) |
2 |
|
|
| 21 |
880660T02 |
|
|
|
|
TUBE, Steering |
1 |
880660T01 |
|
| 22 |
17-885111 |
|
|
|
|
PIN, Dowel (.375 x .875) |
6/8 |
|
|
| 23 |
880658T03 |
|
|
|
|
POWER TRIM ASSEMBLY |
1 |
880658T |
|
| 23 |
880658T03 |
|
|
|
|
POWER TRIM ASSEMBLY |
1 |
880658T01 |
|
| 24 |
25-895854 |
|
|
|
|
O-RING |
1 |
|
|
| 25 |
97-893404 |
|
|
|
|
ANODE |
4 |
|
|
| 26 |
10-889543016 |
|
|
|
|
BOLT |
4 |
|
|
| 27 |
10-88510450 |
|
|
|
|
SCREW |
6 |
|
|
| 28 |
12-889549 |
|
|
|
|
WASHER |
6 |
|
|
| 29 |
97-880653 |
|
|
|
|
ANODE |
1 |
|
|
| 30 |
893405T |
|
|
|
|
COVER |
1 |
|
|
| 31 |
10-4000327 |
|
|
|
|
SCREW, (M6 x 14) |
2 |
|
|
| 32 |
12-72397 |
|
|
|
|
WASHER |
2 |
|
|
| 33 |
880665T01 |
|
|
|
|
ARM, Steering |
1 |
|
|
| 34 |
17-821539 |
|
|
|
|
PIN, Trilobe |
2 |
|
|
| 35 |
53-895304 |
|
|
|
|
RING, Retaining |
2 |
|
|
| 36 |
31-8806641 |
|
|
|
|
BEARING, (.625 Inch) |
4 |
|
|
| 37 |
17-895390 |
|
|
|
|
TILT PIN |
1 |
|
|
| 38 |
53-8M0038931 |
|
|
|
|
RING, Retaining |
1 |
885100 |
|
| 39 |
10-8M0038370 |
|
|
|
|
SCREW, (.500-20 x 5.500) |
4 |
67755003 |
|
| 40 |
12-28421 |
|
|
|
|
WASHER, (1.5 x 3.05 x 0.13) Stainless Steel |
4 |
|
|
| 41 |
12-895062 |
|
|
|
|
WASHER |
4 |
|
|
| 42 |
11-82671117 |
|
|
|
|
NUT, (.500-20) |
4 |
|
|
| 43 |
17-884889002 |
|
|
|
|
Pin |
2 |
|
|
| 44 |
NSS |
|
|
|
|
Decal-Serial Overlaminate |
1 |
|
Not Sold Separate |
