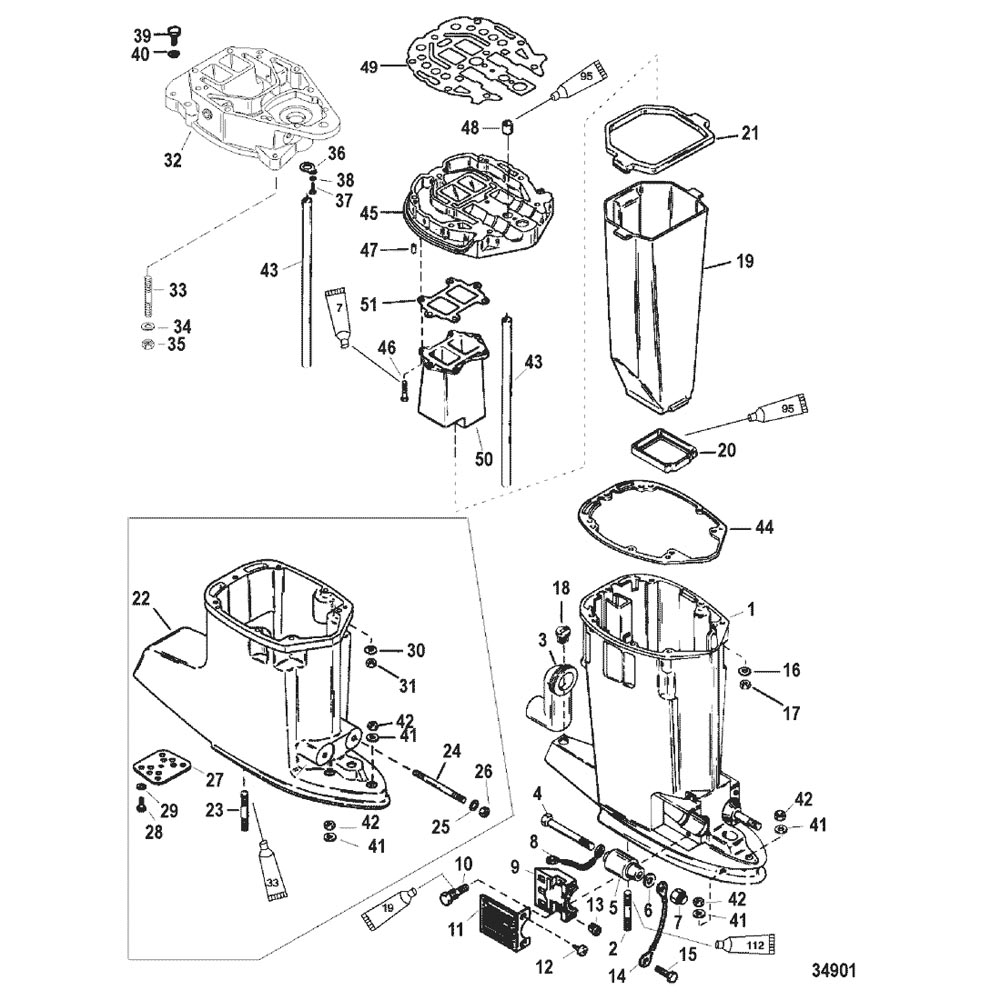

| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| 1 |
1590-8343T10 |
|
|
|
|
HOUSING ASSEMBLY, Driveshaft - Black - Long |
1 |
|
|
| 2 |
16-59579 |
|
|
|
|
STUD, (.437-14/.437-20 x 2.812) |
2 |
|
|
| 3 |
849330 |
|
|
|
|
BOOT, Idle Exhaust |
1 |
|
|
| 4 |
10-898831 |
|
|
|
|
SCREW, (.500-20 x 6.00) |
2 |
63474 |
|
| 5 |
816054T1 |
|
|
|
|
MOUNT, Lower |
2 |
8160541 |
|
| 6 |
12-816056 |
|
|
|
|
WASHER |
4 |
|
|
| 7 |
11-898832 |
|
|
|
|
NUT, (.500-20) |
2 |
28040 |
|
| 8 |
88238A10 |
|
|
|
|
CABLE ASSEMBLY, Ground |
1 |
|
|
| 9 |
54-8M0036782 |
|
|
|
|
CLAMP |
2 |
67076 |
|
| 10 |
10-66727 |
|
|
|
|
SCREW, (.312-18 x 1.250) |
4 |
|
|
| 11 |
8M4500752 |
|
|
|
|
COVER, Black |
2 |
67077T |
|
| 12 |
10-88417 |
|
|
|
|
SCREW, (#12-24 x .620) |
4 |
|
|
| 13 |
11-35521 |
|
|
|
|
NUT |
4 |
|
|
| 14 |
88238A10 |
|
|
|
|
CABLE ASSEMBLY, Ground |
1 |
|
|
| 15 |
10-41508 |
|
|
|
|
SCREW, (.250-20 x .500) Stainless Steel |
1 |
|
|
| 16 |
12-822838 |
|
|
|
|
WASHER, (.401 x .745 x .097) |
4 |
|
|
| 17 |
11-46335 |
|
|
|
|
NUT, (.375-24) |
4 |
|
|
| 18 |
19-64649 |
|
|
|
|
PLUG |
1 |
|
|
| 19 |
18276T |
|
|
|
|
TUBE, Exhaust |
1 |
18276 |
|
| 20 |
66350001 |
|
|
|
|
SEAL (LOWER) |
1 |
66350 |
|
| 21 |
8M0039076 |
|
|
|
|
SEAL (UPPER) |
1 |
177261 |
|
| 22 |
1581-818900T24 |
|
|
|
|
HOUSING, Driveshaft |
1 |
818900T8 |
|
| 23 |
16-59579 |
|
|
|
|
STUD, (.437-14/.437-20 x 2.812) |
2 |
|
|
| 24 |
16-818908 |
|
|
|
|
STUD, (.500-13/.500-20 x 4.120) |
2 |
|
|
| 25 |
12-816056 |
|
|
|
|
WASHER |
2 |
|
|
| 26 |
11-898832 |
|
|
|
|
NUT, (.500-20) |
2 |
28040 |
|
| 27 |
818909 |
|
|
|
|
PLATE, Exhaust Blockoff |
1 |
|
|
| 28 |
10-39349 |
|
|
|
|
SCREW, (.312-18 x .750) Stainless Steel |
1 |
|
|
| 29 |
12-847539 |
|
|
|
|
WASHER |
1 |
|
|
| 30 |
12-822838 |
|
|
|
|
WASHER, (.401 x .745 x .097) |
4 |
|
|
| 31 |
11-46335 |
|
|
|
|
NUT, (.375-24) |
4 |
|
|
| 32 |
817717T3 |
|
|
|
|
PLATE, Extension - Exhaust |
1 |
|
No Longer Available |
| 33 |
16-58893 |
|
|
|
|
STUD, (.250-28 x 1.310) |
6 |
|
No Longer Available |
| 34 |
12-20533 |
|
|
|
|
WASHER |
6 |
|
|
| 35 |
11-30506 |
|
|
|
|
NUT, (.250-28) |
6 |
|
|
| 36 |
44260 |
|
|
|
|
RETAINER |
1 |
|
|
| 37 |
10-28635 |
|
|
|
|
SCREW, (.250-20 x .620) Stainless Steel |
1 |
|
|
| 38 |
13-26992 |
|
|
|
|
LOCKWASHER, (.250) Stainless Steel |
1 |
|
|
| 39 |
10-91903 |
|
|
|
|
SCREW, (.437-14 x 1.750) |
3 |
|
|
| 40 |
12-822836 |
|
|
|
|
WASHER, (.445 x .805 x .108) |
3 |
|
|
| 41 |
12-822836 |
|
|
|
|
WASHER, (.445 x .805 x .108) |
3 |
|
|
| 42 |
11-859116 |
|
|
|
|
NUT, (.4375-20) |
3 |
134391 |
|
| 43 |
32-672951 |
|
|
|
|
TUBE, Water |
1 |
|
|
| 43 |
32-8M0042788 |
|
|
|
|
TUBE, Water |
1 |
67295 |
|
| 44 |
27-991734 |
|
|
|
|
GASKET |
1 |
991732 |
|
| 45 |
18233A4 |
|
|
|
|
PLATE ASSEMBLY |
1 |
|
No Longer Available |
| 46 |
10-90192 |
|
|
|
|
SCREW, (.250-20 x .750) Stainless Steel |
6 |
|
|
| 47 |
17-43044 |
|
|
|
|
PIN, Dowel - Without Hole (.375 x .625) |
2 |
|
|
| 47 |
17-8M0043826 |
|
|
|
|
PIN, Dowel (.875) |
2 |
823106 |
|
| 48 |
26-38970 |
|
|
|
|
SEAL |
1 |
|
|
| 49 |
27-183074 |
|
|
|
|
GASKET |
1 |
|
|
| 50 |
879288T71 |
|
|
|
|
EXTENSION, Exhaust |
1 |
41942F3 |
|
| 51 |
27-782461 |
|
|
|
|
GASKET |
1 |
78246 |
|
