200 EFI PRO MAX and SUPER MAG - Serial 0G857000 Thru 0G858150 - Reed Block and Cylinder Head

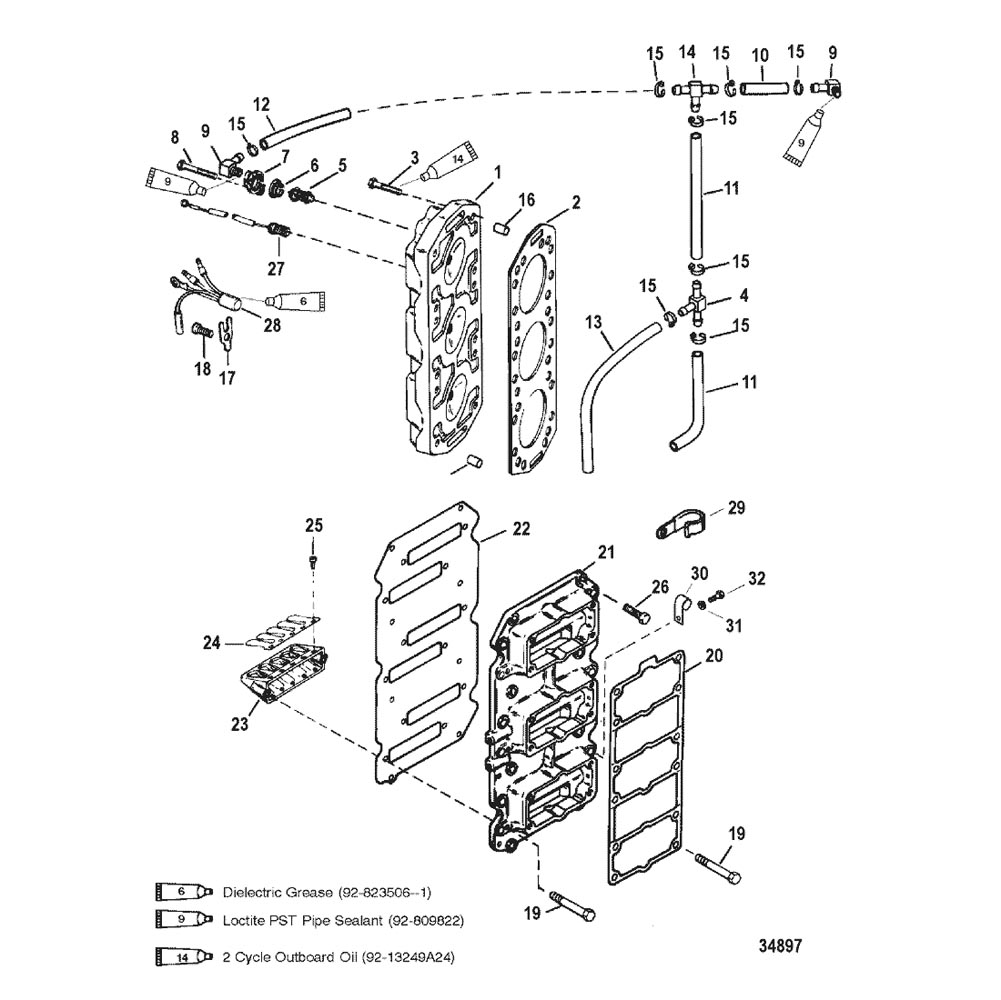

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 18488F1         CYLINDER HEAD 2
2 27-822844T05         GASKET 2 8228441
3 10-98534         SCREW, (.375-16 x 2.30) 24
4 22-815914         T-FITTING 1
5 75692         THERMOSTAT 2
6 27-62386001         GASKET 2 62386
7 90390A1         COVER KIT 2
8 10-35386         SCREW, (.312-18 x 1.00) 4
9 22-136071         ELBOW 2
10 32-8M0108349         TUBING, (.312) (70.00 Inches Bulk) (Cut to 2-1/2 Inches) 1 830757130
11 32-8M0108349         TUBING, (.312) (70.00 Inches Bulk) (Cut to 7-1/2 Inches) 2 830757130
12 32-77653101         HOSE, (48.00 Inches Bulk) (Cut to 10-1/2 Inches) 1
13 32-77653101         HOSE, (48.00 Inches Bulk) (Cut to 14-1/2 Inches) 1
14 22-90824001         TEE 1 90824
15 54-816311T         TIE STRAP, (8.00 Inches) AR 816311
16 17-63779         PIN, Dowel (.250 x .625) 4
17 137151         RETAINER 2
18 10-98257         SCREW, (.312-18 x .500) 2
19 10-55715         SCREW, (.250-20 x .880) 6
19 10-90197         SCREW, (.250-20 x 1.125) 6
20 27-167371         GASKET 1
21 17735A2         ADAPTOR PLATE ASSEMBLY 1 No Longer Available
22 27-146972         GASKET 1
23 11645A4         REED BLOCK 6 No Longer Available
24 34-14594A3         REED ASSEMBLY 6
25 10-849038         SCREW, (M3 x 5) 48
26 10-28668   676-9-78127 700-22440   SCREW, (.250-20 x .875) Stainless Steel 8
27 97465         SENDER, Temperature (STARBOARD) 1
28 13536A6         SENSOR ASSEMBLY, Temperature (PORT) 1
29 54-55098         J CLIP 1
30 54-23567         CLIP 1
31 8M0084613         C WASHER 1 69205
32 10-878608         SCREW, (#10-16 x .500) 1 812832
- 27-823142A98         GASKET SET, Engine 1
- 808603T94         POWERHEAD ASSEMBLY 1 No Longer Available
