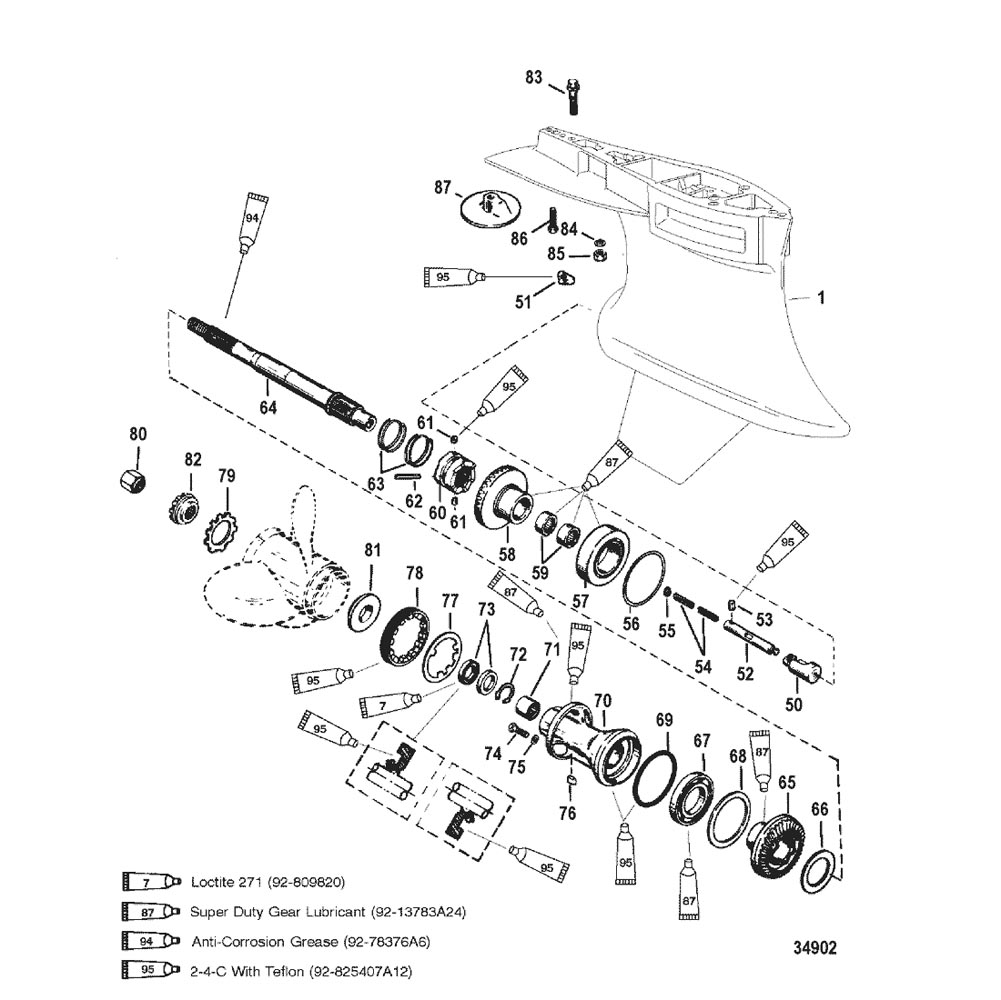

| Note: The Basic Gear Housing Listed is Generic. It Does Not Include Studs. |
| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| - |
1687-840560T33 |
|
|
|
|
GEAR HOUSING ASSEMBLY, Complete |
1 |
849780A33 |
|
| - |
1687-840560T34 |
|
|
|
|
GEAR HOUSING ASSEMBLY, Complete |
1 |
849780T34 |
|
| 1 |
1687-8M0083306 |
|
|
|
|
GEAR HOUSING ASSEMBLY, Basic |
1 |
849780A2 |
|
| 50 |
89594A1 |
|
|
|
|
FOLLOWER ASSEMBLY |
1 |
|
|
| 51 |
789562 |
|
|
|
|
SHIFT CAM |
1 |
|
|
| 52 |
79911A1 |
|
|
|
|
ROD |
1 |
|
|
| 53 |
17-8M0084245 |
|
|
|
|
PIN |
1 |
78906 |
|
| 54 |
24-79910 |
|
|
|
|
SPRING |
2 |
|
|
| 55 |
12-78910 |
|
|
|
|
WASHER |
2 |
|
|
| 56 |
15-47397A1 |
|
|
|
|
SHIM SET |
AR |
|
|
| 57 |
31-78172A1 |
|
|
|
|
BEARING ASSEMBLY, Tapered Roller |
1 |
|
|
| 58 |
43-44104A7 |
|
|
|
|
GEAR SET, Includes Pinion- 1.87:1 Gear Ratio |
1 |
|
|
| 59 |
31-549281 |
|
|
|
|
BEARING, Roller |
1 |
|
|
| 60 |
52-42672T |
|
|
|
|
RATCHET |
1 |
|
|
| 61 |
17-78909 |
|
|
|
|
PIN, Detent |
2 |
|
|
| 62 |
17-42671 |
|
|
|
|
PIN, Cross |
1 |
|
|
| 63 |
24-78962 |
|
|
|
|
SPRING |
2 |
|
|
| 64 |
44-822820F1 |
|
|
|
|
PROPELLER SHAFT |
1 |
|
No Longer Available |
| 65 |
43-822824A1 |
|
|
|
|
GEAR ASSEMBLY, Reverse, 1.87:1 Gear Ratio |
1 |
|
|
| 66 |
23-822823 |
|
|
|
|
THRUST RING |
1 |
|
|
| 67 |
30-88957T |
|
|
|
|
BEARING, Ball |
1 |
|
|
| 68 |
681001 |
|
|
|
|
RING, Thrust |
1 |
|
|
| 69 |
25-31534 |
|
|
|
|
O-RING |
1 |
|
|
| 70 |
848840A1 |
|
|
|
|
CARRIER ASSEMBLY, Bearing |
1 |
848840T1 |
|
| 71 |
31-817072 |
|
|
|
|
BEARING, Roller |
1 |
|
|
| 72 |
53-817071 |
|
|
|
|
RING, Snap |
1 |
|
|
| 73 |
26-815565 |
|
|
|
|
SEAL, Oil |
2 |
|
|
| 74 |
22-8M0058389 |
|
|
|
|
FITTING KIT, Magnetic, Plug Fill/Drain |
1 |
67892A1 |
|
| 75 |
12-191833 |
|
|
|
|
WASHER, Fiber |
1 |
19183 |
|
| 76 |
28-30281 |
|
|
|
|
KEY |
1 |
|
|
| 77 |
14-79447 |
|
|
|
|
TAB WASHER |
1 |
|
|
| 78 |
8M2011027 |
|
|
|
|
RETAINER |
1 |
79448 |
|
| 79 |
13-423511 |
|
|
|
|
LOCKWASHER, Toothed |
1 |
|
|
| 80 |
11-52707Q1 |
|
|
|
|
PROP NUT |
1 |
827614 |
|
| 81 |
13171T1 |
|
|
|
|
THRUST HUB |
1 |
|
No Longer Available |
| 82 |
12-31211Q03 |
|
|
|
|
WASHER, Splined |
1 |
31211A2 |
|
| 83 |
10-41350 |
|
|
|
|
SCREW, (.437-14 x 2.50) Stainless Steel |
1 |
|
|
| 83 |
10-66024 |
|
|
|
|
SCREW, (.437-14 x 1.75) |
1 |
|
|
| 84 |
12-822836 |
|
|
|
|
WASHER, (.445 x .805 x .108) |
2 |
|
|
| 85 |
11-859116 |
|
|
|
|
NUT, (.4375-20) |
2 |
134391 |
|
| 86 |
10-30206 |
|
|
|
|
SCREW, (.375-16 x 1.00) Stainless Steel |
1 |
|
|
| 87 |
76214T3 |
|
|
|
|
ANODE |
1 |
762143 |
|
| 87 |
76214Q5 |
|
|
|
|
ANODE KIT |
1 |
76214A5 |
|
| - |
26-89238A3 |
|
|
|
|
SEAL KIT, Gear Housing |
1 |
|
|
| - |
56-90415A24 |
|
|
|
|
STUD KIT |
1 |
|
No Longer Available |
