4.3L MPI ALPHA-BRAVO - 0W658583 THRU 0W658583 - Closed Cooling System

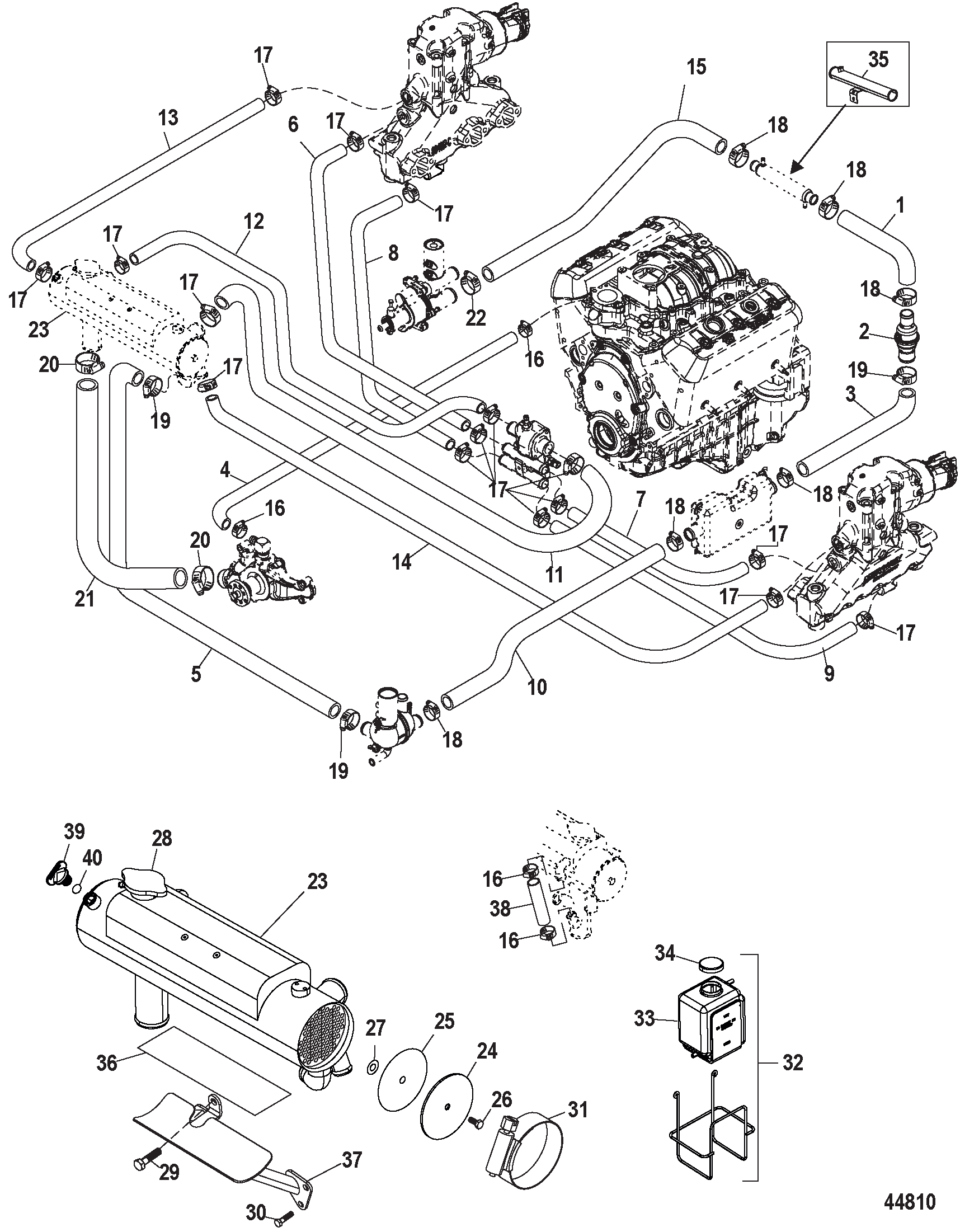

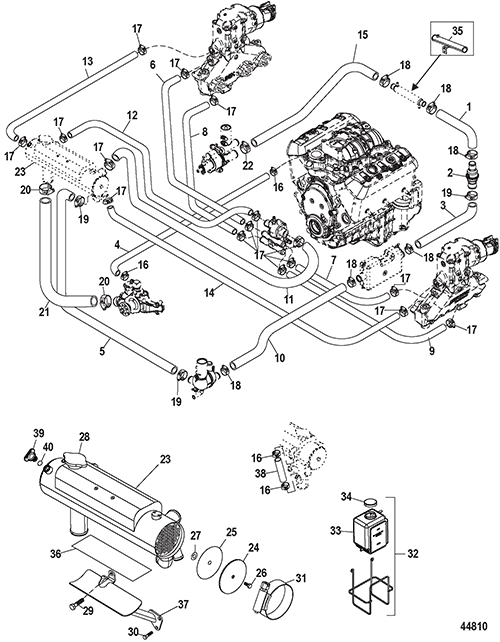

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Brackets
- Closed Cooling System
- Closed Cooling System (BRAVO) Sea Pump Hoses
- Closed Cooling System (BRAVO) Sea Pump Hoses (SeaCore)
- Cylinder Block Camshaft Crankshaft and Balanceshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components
- Engine Mounts
- Exhaust Manifold and Elbow
- Exhaust Risers
- Exhaust System
- Flywheel Coupler and Flywheel Housing
- Front Cover and Circulating Pump
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Gasket Set Components (27-807756A02) Engine Overhaul
- Gear Lube Monitor
- Intake Manifold and Fuel Rail
- Jackshaft Main Kit (98634A20)
- Maintenance Kits
- Mercathode Components
- Oil Pan Oil Pump and Rear Oil Seal
- Pistons and Connecting Rods
- Remote Oil Filter
- Sea Water Pump Assembly
- Service and Support Material
- Shift Bracket Alpha
- Shift Bracket Bravo
- Standard Cooling System Seven Point Drain
- Standard Cooling System Single and Three Point Drain
- Starter Motor
- Steering Components
- Thermostat and Housing 7 Point Drain
- Thermostat and Housing Single and 3 Point Drain
- Throttle Body
- Water Distribution Housing
- Water Drain Air Manifold and Pump
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0032 | OEM: 525-32-863489 | HOSE Power Steering Cooler to Check Valve | 1 | ||
| 2 | 0021 | OEM: 525-21-864206A1 | CHECK VALVE ASSEMBLY | 1 | ||
| 3 | 0032 | OEM: 525-32-863811 | HOSE Check Valve to Fuel Cooler | 1 | ||
| 4 | 0032 | OEM: 525-32-864551 | HOSE Intake Bypass to Circulating Pump | 1 | ||
| 5 | 0032 | OEM: 525-32-864431 | HOSE Distribution Housing to Heat Exchanger | 1 | ||
| 6 | 0032 | OEM: 525-32-864713 | HOSE Thermostat Housing to Upper Manifold (Starboard) | (Without Riser) | 1 | |
| 6 | 0032 | OEM: 525-32-864933 | HOSE Thermostat Housing to Upper Manifold (Starboard) | (1.7 inch and 3 Inch Riser) | 1 | |
| 6 | 0032 | OEM: 525-32-866081 | HOSE Thermostat Housing to Upper Manifold (Starboard) | (6 Inch Riser) | 1 | |
| 7 | 0032 | OEM: 525-32-864714 | HOSE Thermostat Housing to Upper Manifold (Port) | (Without Riser) | 1 | |
| 7 | 0032 | OEM: 525-32-864931 | HOSE Thermostat Housing to Upper Manifold (Port) | (1.7 inch and 3 Inch Riser) | 1 | |
| 7 | 0032 | OEM: 525-32-866080 | HOSE Thermostat Housing to Upper Manifold (Port) | (6 Inch Riser) | 1 | |
| 8 | 0032 | OEM: 525-32-864534 | HOSE Thermostat Housing to Lower Manifold | (Starboard) | 1 | |
| 9 | 0032 | OEM: 525-32-864575 | HOSE Thermostat Housing to Lower Manifold | (Port) | 1 | |
| 10 | 0032 | OEM: 525-32-863781 | HOSE Fuel Cooler to Accumulator Housing | 1 | ||
| 11 | 0032 | OEM: 525-32-864506 | HOSE Heat Exchanger to Thermostat Housing | 1 | ||
| 12 | 0032 | OEM: 525-32-864507 | HOSE Heat Exchanger to Thermostat Housing | 1 | ||
| 13 | 0032 | OEM: 525-32-864532 | HOSE Heat Exchanger to Elbow (Starboard) | (Without Riser) | 1 | |
| 13 | 0032 | OEM: 525-32-864934 | HOSE Heat Exchanger to Elbow (Starboard) | (1.7 inch and 3 Inch Riser) | 1 | |
| 13 | 0032 | OEM: 525-32-866079 | HOSE Heat Exchanger to Elbow (Starboard) | (6 Inch Riser) | 1 | |
| 14 | 0032 | OEM: 525-32-864726 | HOSE Heat Exchanger to Elbow (Port) | (Without Riser) | 1 | |
| 14 | 0032 | OEM: 525-32-864932 | HOSE Heat Exchanger to Elbow (Port) | (1.7 Inch and 3 Inch Riser) | 1 | |
| 14 | 0032 | OEM: 525-32-866078 | HOSE Heat Exchanger to Elbow (Port) | (6 Inch Riser) | 1 | |
| 15 | 0032 | OEM: 525-32-8636111 | HOSE Sea Pump to Power Steering Cooler | 1 | ||
| 16 | 0054 | OEM: 525-54-815504212 | CLAMP Worm Gear Hose | 1 | ||
| 17 | 0054 | OEM: 525-54-815504216 | CLAMP Worm Gear (1.56 Diameter) Hose | 1 | ||
| 18 | 0054 | OEM: 525-54-815504222 | CLAMP Worm Gear (1.98 DIameter) Hose | 1 | ||
| 19 | 0054 | OEM: 525-54-815504228 | CLAMP Worm Gear Hose | 1 | ||
| 20 | 0054 | OEM: 525-54-815504232 | CLAMP Worm Gear (2.50 Diameter) Hose | 1 | ||
| 21 | 0032 | OEM: 525-32-864886 | HOSE Heat Exchanger to Circulating Pump | 1 | ||
| 22 | 0054 | OEM: 525-54-815504224 | CLAMP Worm Gear Hose | 1 | ||
| 23 | 0000 | OEM: 525-864395T01 | HEAT EXCHANGER Closed Cooling | 1 | ||
| 24 | 0000 | OEM: 525-864708 | COVER | 2 | ||
| 25 | 0027 | OEM: 525-27-866152 | SEAL End Cover | 2 | ||
| 26 | 0010 | OEM: 525-10-814877 | BOLT | 2 | ||
| 27 | 0025 | 814878 | O-RING Special | 2 | ||
| 28 | 0036 | OEM: 525-36-8148791 | CAP Pressure | 1 | ||
| 29 | 0010 | OEM: 525-10-805559 | SCREW (.375-16 x .875) Stainless Steel | 1 | ||
| 30 | 0010 | OEM: 525-10-34353 | SCREW (.375-16 x 1.00) | 2 | ||
| 31 | 0054 | OEM: 525-54-815504396 | CLAMP Worm Gear Heat Exchanger | 1 | ||
| 32 | 0000 | OEM: 525-71587A10 | RECOVERY KIT Coolant | 1 | ||
| NS | 0032 | OEM: 525-32-774572 | HOSE (48.00 Inches Bulk) | 1 | ||
| 33 | 0000 | OEM: 525-71587A11 | BOTTLE Plastic Coolant Recovery Kit | 1 | ||
| 34 | 0000 | OEM: 525-72058 | CAP Coolant Recovery Bottle | 1 | ||
| 35 | 0000 | OEM: 525-863841T | TUBE Water Brass | (Compact Hydralic Steering) | 1 | |
| 36 | 0000 | OEM: 525-18431 | PAD Heat Exchanger | 1 | ||
| 37 | 0000 | OEM: 525-864494T | BRACKET Cooler | 1 | ||
| 38 | 0032 | 4285069 | HOSE (44.00 Inches Bulk) | (Cut to 6 Inch Length) | 1 | |
| 39 | 0022 | OEM: 525-22-806608A02, Sierra: 676-18-4226 | PLUG ASSEMBLY (.500-13) Blue | 1 | [1] | |
| 40 | 0025 | 8M2000926 | SEAL | 1 |
PART NOTES:
[1] - Alternate part numbers:
806608A02Service Part
806608Q01QS
