4.3L MPI ALPHA-BRAVO - 0W658583 THRU 0W658583 - Standard Cooling System Seven Point Drain

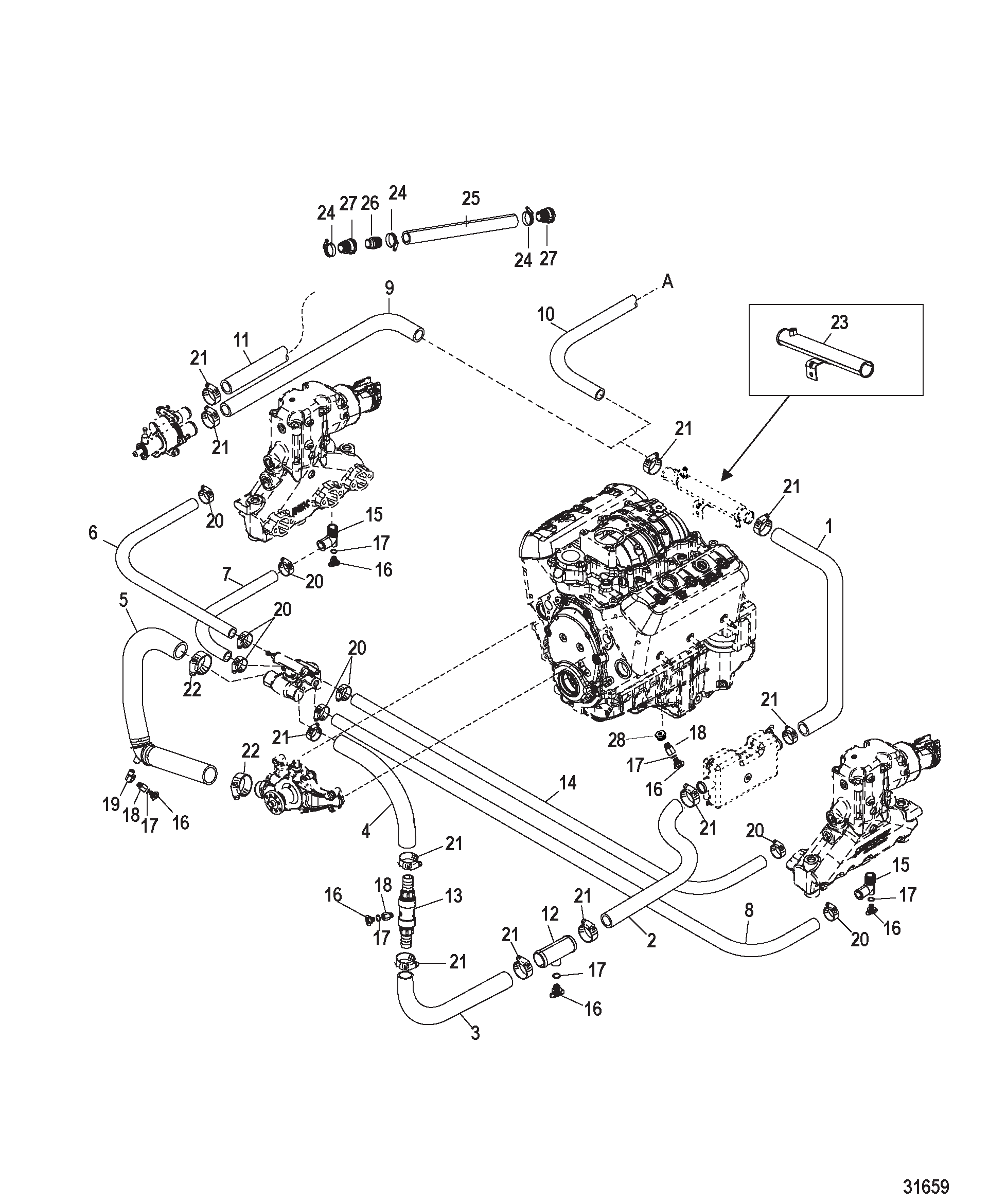

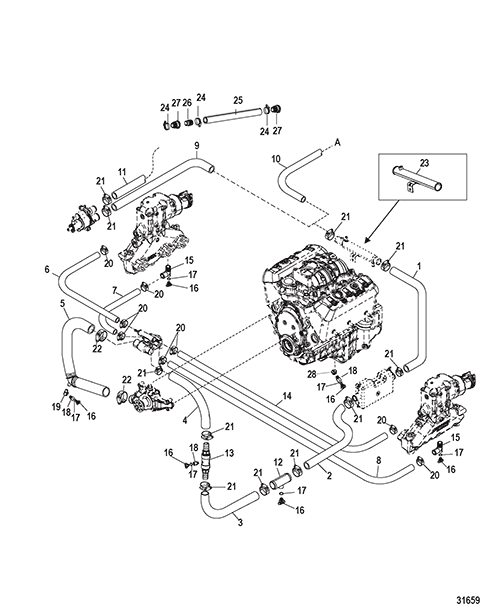

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Brackets
- Closed Cooling System
- Closed Cooling System (BRAVO) Sea Pump Hoses
- Closed Cooling System (BRAVO) Sea Pump Hoses (SeaCore)
- Cylinder Block Camshaft Crankshaft and Balanceshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components
- Engine Mounts
- Exhaust Manifold and Elbow
- Exhaust Risers
- Exhaust System
- Flywheel Coupler and Flywheel Housing
- Front Cover and Circulating Pump
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Gasket Set Components (27-807756A02) Engine Overhaul
- Gear Lube Monitor
- Intake Manifold and Fuel Rail
- Jackshaft Main Kit (98634A20)
- Maintenance Kits
- Mercathode Components
- Oil Pan Oil Pump and Rear Oil Seal
- Pistons and Connecting Rods
- Remote Oil Filter
- Sea Water Pump Assembly
- Service and Support Material
- Shift Bracket Alpha
- Shift Bracket Bravo
- Standard Cooling System Seven Point Drain
- Standard Cooling System Single and Three Point Drain
- Starter Motor
- Steering Components
- Thermostat and Housing 7 Point Drain
- Thermostat and Housing Single and 3 Point Drain
- Throttle Body
- Water Distribution Housing
- Water Drain Air Manifold and Pump
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0032 | OEM: 525-32-860206 | HOSE Fuel Cooler to Power Steering Cooler | 1 | ||
| 2 | 0032 | OEM: 525-32-866331 | HOSE Fuel Cooler to Drain Fitting | (Cut to Length) | 1 | |
| 3 | 0032 | OEM: 525-32-864578 | HOSE Drain Fitting to Check Valve | 1 | ||
| 4 | 0032 | OEM: 525-32-864579 | HOSE Check Valve to Thermo Housing | 1 | ||
| 5 | 0032 | OEM: 525-32-864703A1 | HOSE Circulating Pump to Thermostat Housing | 1 | ||
| 6 | 0032 | OEM: 525-32-864994 | HOSE Thermostat Housing to Starboard Elbow | 1 | ||
| 7 | 0032 | OEM: 525-32-863858 | HOSE Thermo Housing to Starbd Manifold | 1 | ||
| 8 | 0032 | OEM: 525-32-863458 | HOSE Thermo Housing to Port Manifold | 1 | ||
| 9 | 0032 | OEM: 525-32-8636111 | HOSE Sea Pump To Power Steering Cooler (Bravo) | 1 | ||
| 10 | 0032 | OEM: 525-32-807661 | HOSE Transom to Power Steering Cooler (Alpha) | 1 | ||
| 11 | 0032 | 865672079 | HOSE (96.00 Inches Bulk) Sea Water Pump to Drive | (Bravo) | 1 | |
| 12 | 0000 | OEM: 525-861505 | FITTING Drain Tee | 1 | ||
| 13 | 0021 | OEM: 525-21-862271A1 | CHECK VALVE | 1 | ||
| 14 | 0032 | OEM: 525-32-864993 | HOSE Thermostat Housing to Port Elbow | 1 | ||
| 15 | 0022 | OEM: 530-862210A01, Sierra: 676-18-4224, GLM: 700-13990 | ELBOW KIT Drain | 2 | ||
| 16 | 0022 | OEM: 525-22-806608A02, Sierra: 676-18-4226 | PLUG ASSEMBLY (.500-13) Blue Drain Fitting | AR | [1] | |
| 17 | 0025 | 8M2000926 | SEAL | AR | ||
| 18 | 0022 | OEM: 525-22-860088 | BUSHING | 4 | ||
| 19 | 0022 | OEM: 525-22-46982 | FITTING (90 Degree) | 1 | ||
| 20 | 0054 | OEM: 525-54-815504216 | CLAMP Worm Gear (1.56 Diameter) Hose | 4 | ||
| 21 | 0054 | OEM: 525-54-815504222 | CLAMP Worm Gear (1.98 DIameter) Hose | 11 | ||
| 22 | 0054 | OEM: 525-54-815504228 | CLAMP Worm Gear Hose | 4 | ||
| 23 | 0000 | OEM: 525-863841T | TUBE Water Brass | (Compact Hydralic Steering) | 1 | |
| 24 | 0054 | OEM: 525-54-815504220 | CLAMP Worm Gear | 3 | ||
| 25 | 0032 | OEM: 525-32-865672013 | HOSE (4.00 Inches) | 1 | ||
| 26 | 0022 | OEM: 525-22-865362 | QUICK CONNECT | 1 | ||
| 27 | 0022 | OEM: 525-22-865324 | QUICK CONNECT | 2 | ||
| 28 | 0022 | OEM: 525-22-8M2005622 | FITTING Reducer (M28 x .250) | 1 |
PART NOTES:
[1] - Alternate part numbers:
806608A02Service Part
806608Q01QS
