4.3L MPI ALPHA-BRAVO - 0W658583 THRU 0W658583 - Front Cover and Circulating Pump

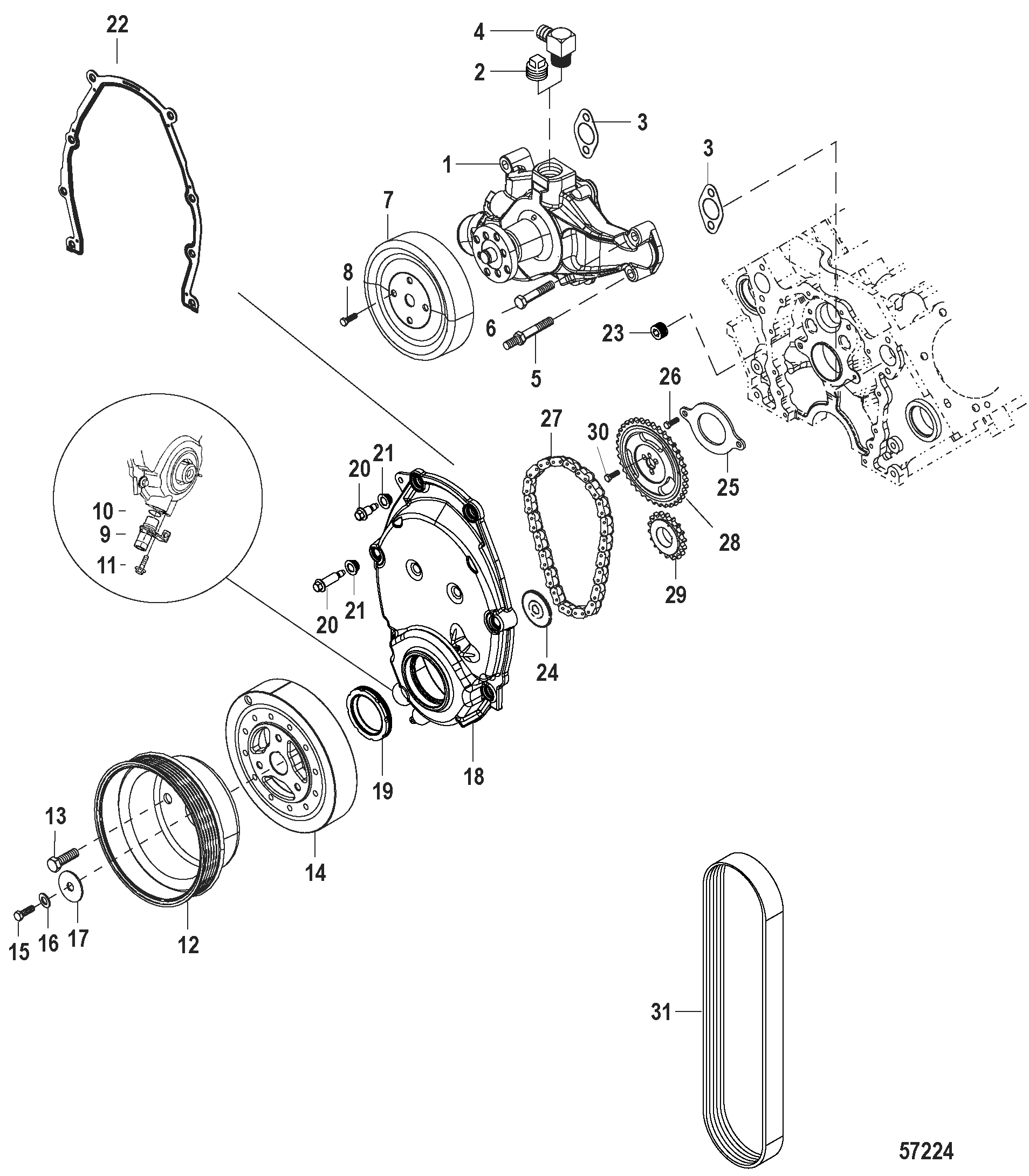

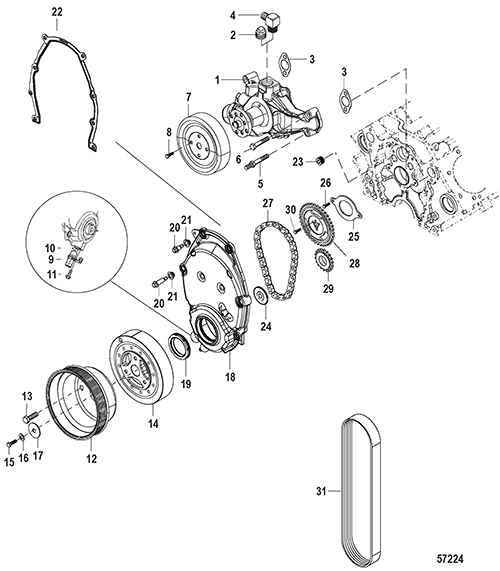

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Brackets
- Closed Cooling System
- Closed Cooling System (BRAVO) Sea Pump Hoses
- Closed Cooling System (BRAVO) Sea Pump Hoses (SeaCore)
- Cylinder Block Camshaft Crankshaft and Balanceshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components
- Engine Mounts
- Exhaust Manifold and Elbow
- Exhaust Risers
- Exhaust System
- Flywheel Coupler and Flywheel Housing
- Front Cover and Circulating Pump
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Gasket Set Components (27-807756A02) Engine Overhaul
- Gear Lube Monitor
- Intake Manifold and Fuel Rail
- Jackshaft Main Kit (98634A20)
- Maintenance Kits
- Mercathode Components
- Oil Pan Oil Pump and Rear Oil Seal
- Pistons and Connecting Rods
- Remote Oil Filter
- Sea Water Pump Assembly
- Service and Support Material
- Shift Bracket Alpha
- Shift Bracket Bravo
- Standard Cooling System Seven Point Drain
- Standard Cooling System Single and Three Point Drain
- Starter Motor
- Steering Components
- Thermostat and Housing 7 Point Drain
- Thermostat and Housing Single and 3 Point Drain
- Throttle Body
- Water Distribution Housing
- Water Drain Air Manifold and Pump
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0046 | 879194366 | PUMP ASSEMBLY | 1 | [1] | |
| 2 | 0022 | 879194370 | PLUG Pipe | (Standard Cooling) | 1 | [1] |
| 3 | 0027 | OEM: 525-27-879194367 | GASKET Water Pump | 2 | [2] | |
| 4 | 0022 | OEM: 525-22-860346 | FITTING Elbow (90 Degree) (.750) | (Closed Cooling) | 1 | |
| 5 | 0016 | 35342 | STUD (.312-24/.375-16 x 2.5625) | 2 | [1] | |
| 6 | 0010 | OEM: 525-10-32132 | SCREW (.375-16 x 1.750) | 2 | [1] | |
| 6 | 0010 | OEM: 525-10-47688 | SCREW (.375-16 x 2.750) | 1 | [1] | |
| 7 | 0000 | 807729T | PULLEY | 1 | [1] | |
| 8 | 0010 | OEM: 525-10-47277 | SCREW (.312-24 x .750) | 4 | [1] | |
| 9 | 0000 | OEM: 525-879194363 | SENSOR ASSEMBLY Crankshaft Position | 1 | [1] | |
| 10 | 0025 | OEM: 525-25-885192 | O-RING | 1 | [2] | |
| 11 | 0010 | 884018 | SCREW | 1 | [1] | |
| 12 | 0000 | OEM: 530-807730T | PULLEY Crankshaft | 1 | ||
| 13 | 0010 | OEM: 525-10-34352 | SCREW (.375-24 x .875) | 3 | ||
| 14 | 0000 | OEM: 525-888776T | HARMONIC BALANCER | 1 | [1] | |
| 15 | 0010 | 32515 | SCREW (.437-20 x 2.50) | 1 | [1] | |
| 16 | 0013 | OEM: 525-13-39131 | LOCKWASHER (.437) | 1 | [1] | |
| 17 | 0012 | OEM: 525-12-71458 | WASHER | 1 | [1] | |
| 18 | 0000 | OEM: 525-879194362 | COVER ASSEMBLY Timing | 1 | [1] | |
| 19 | 0026 | 879194365 | SEAL Oil | 1 | [2] | |
| 20 | 0010 | OEM: 525-10-879194369 | BOLT Timing Cover | 6 | [1] | |
| 21 | 0026 | OEM: 525-26-888782 | GROMMET Timing Cover | 6 | [2] | |
| 22 | 0027 | 8M0069696 | GASKET | 1 | ||
| 23 | 0019 | OEM: 525-19-816565 | PLUG Cup (.468) | 1 | [1] | |
| 24 | 0000 | OEM: 525-879194344 | RELUCTOR WHEEL | 1 | [1] | |
| 25 | 0000 | OEM: 525-824333 | RETAINER Camshaft | 1 | [1] | |
| 26 | 0010 | OEM: 525-10-824334 | SCREW (.250-20 x .500) | 2 | [1] | |
| 27 | 0000 | OEM: 525-8M0050619 | TIMING CHAIN SET Chain and Sprockets | 1 | [1] | |
| 28 | NSS | NOT SOLD SEPARATE Camshaft Sprocket | 1 | [1] | ||
| 29 | NSS | NOT SOLD SEPARATE Crankshaft Sprocket | 1 | [1] | ||
| 30 | 0010 | 824329 | SCREW (.312-18 x .750) | 3 | [1] | |
| 31 | 0057 | 865615004 | BELT | (Alpha-Standard Cooling)(Power Steering) | 1 | |
| 31 | 0057 | 865615009 | BELT | (Alpha-Standard Cooling)(Compact Hydraulic Steering) | 1 | |
| 31 | 0057 | 865615003 | BELT | (Alpha-Closed Cooling)(Bravo)(Power Steering) | 1 | |
| 31 | 0057 | 865615008 | BELT | (Alpha-Closed Cooling)(Bravo)(Compact Hydraulic Steering) | 1 | |
| - | 0027 | OEM: 525-27-807756A02 | GASKET SET Engine Overhaul | 1 | ||
| - | 0000 | 879150A31 | LONG BLOCK (4.3L) | 1 | [3] |
PART NOTES:
[1] - Component of Long Block Assembly- 879150A31
[2] - Component of Engine Overhaul Gasket Set 807756A02
Component of Long Block Assembly- 879150A31
[3] - Alternate part numbers:
879150A31QS
879150R31Reman
8M0150280Reman
