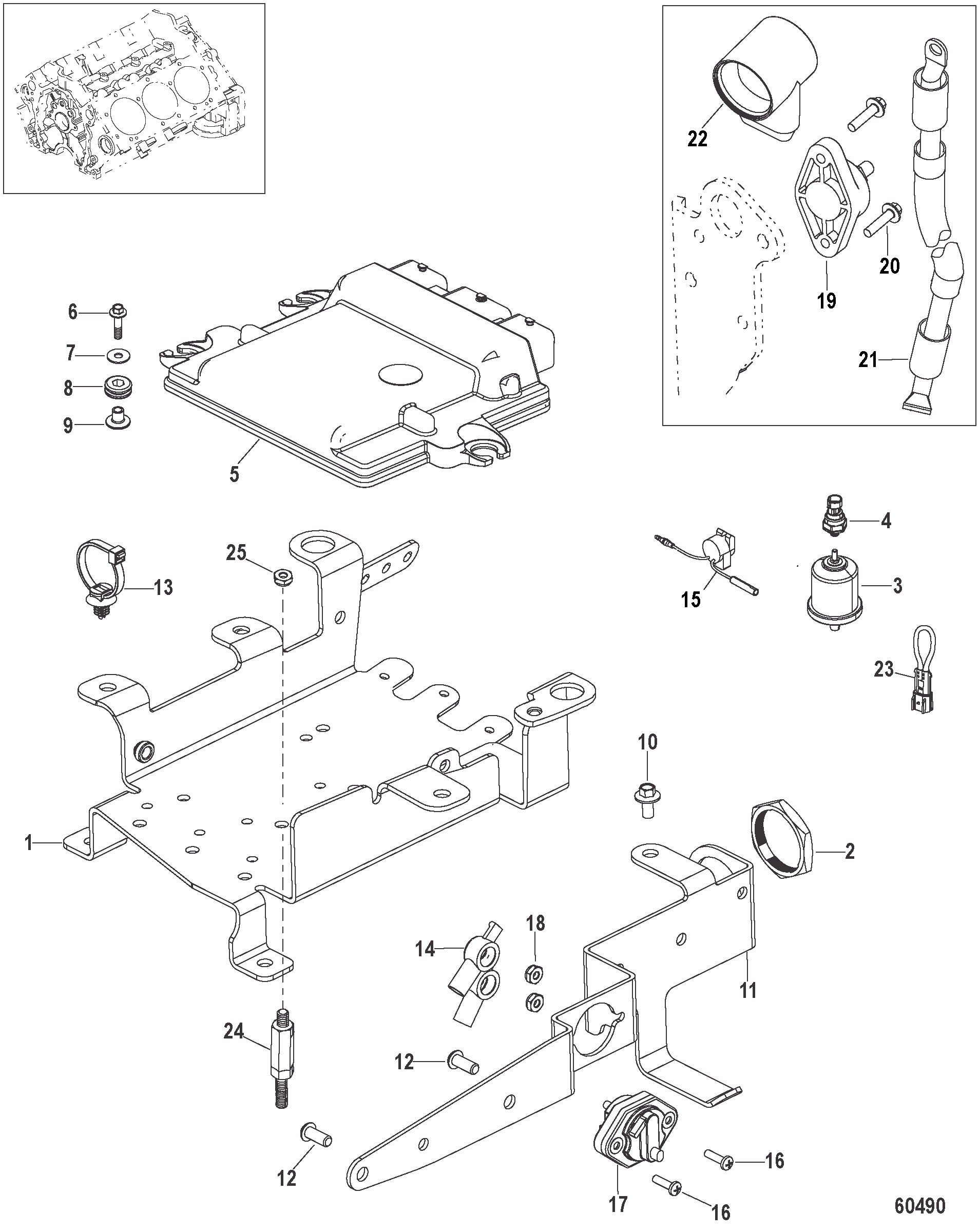

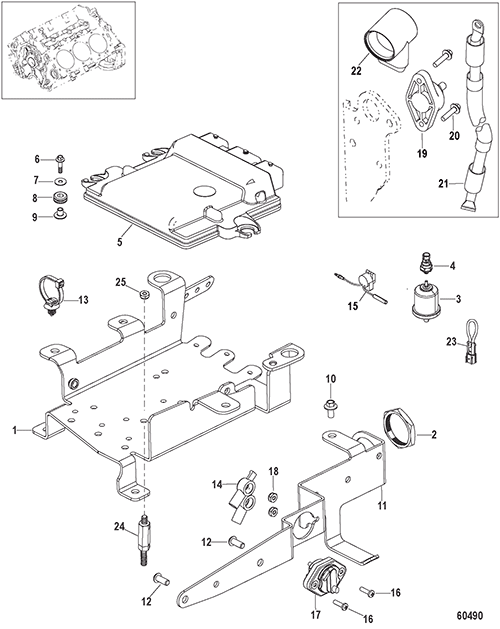

| 1 |
0000 |
OEM: 525-8M0054010 |
BRACKET Electrical |
|
1 |
|
| 2 |
0011 |
OEM: 525-11-889664 |
NUT (1.500-18) Black Nylon |
|
1 |
|
| 3 |
0000 |
815425T |
SENDER ASSEMBLY Oil |
|
1 |
|
| 3 |
0000 |
OEM: 525-37293T |
SENDER ASSEMBLY Oil |
(Dual Station) |
1 |
|
| 4 |
0000 |
881879010 |
SENSOR Pressure |
(Power Steering Cooler) |
1 |
|
| 4 |
0000 |
OEM: 530-881879T11 |
SENSOR Pressure (0 - 100 PSI) |
(Oil) |
1 |
|
| 5 |
0000 |
OEM: 525-8M0054003 |
PCM Propulsion Control Module |
Standard Cooling, Alpha [1A648622] & Below |
1 |
|
| 5 |
0078 |
OEM: 525-78-8M0059347 |
PCM Propulsion Control Module |
Standard Cooling, Alpha [1A648623] THRU [2A446466] |
1 |
|
| 5 |
0078 |
8M0099853 |
PCM Propulsion Control Module |
Standard Cooling, Alpha [2A446467] & Up |
1 |
|
| 5 |
0000 |
OEM: 525-8M0054004 |
PCM Propulsion Control Module |
Closed Cooling, Alpha [1A648622] & Below |
1 |
|
| 5 |
0078 |
OEM: 525-78-8M0059348 |
PCM Propulsion Control Module |
Closed Cooling, Alpha [1A648623] THRU [2A446466] |
1 |
|
| 5 |
0078 |
8M0099854 |
PCM Propulsion Control Module |
Closed Cooling, Alpha [2A446467] & Up |
1 |
|
| 5 |
0000 |
OEM: 525-8M0054005 |
PCM Propulsion Control Module |
Standard Cooling, Bravo [1A648622] & Below |
1 |
|
| 5 |
0078 |
OEM: 525-78-8M0059349 |
PCM Propulsion Control Module |
Standard Cooling, Bravo [1A648623] THRU [2A446466] |
1 |
|
| 5 |
0078 |
8M0099855 |
PCM Propulsion Control Module |
Standard Cooling, Bravo [2A446467] & Up |
1 |
|
| 5 |
0000 |
OEM: 525-8M0054006 |
PCM Propulsion Control Module |
Closed Cooling, Bravo [1A648622] & Below |
1 |
|
| 5 |
0078 |
OEM: 525-78-8M0059350 |
PCM Propulsion Control Module |
Closed Cooling, Bravo [1A648623] THRU [2A446466] |
1 |
|
| 5 |
0078 |
8M0099856 |
PCM Propulsion Control Module |
Closed Cooling, Bravo [2A446467] & Up |
1 |
|
| 5 |
0078 |
8M0109125 |
PCM Propulsion Control Module |
180 HP [2A457710] & Up |
1 |
|
| 6 |
0010 |
OEM: 525-10-82130025 |
SCREW (M6 x 25) |
|
3 |
|
| 7 |
0012 |
OEM: 525-12-65567 |
WASHER (.265 x .750 x .048) Stainless Steel |
|
3 |
|
| 8 |
0025 |
OEM: 525-25-834985 |
GROMMET |
|
3 |
|
| 9 |
0023 |
OEM: 525-23-856954 |
BUSHING |
|
3 |
|
| 10 |
0010 |
OEM: 525-10-4010612 |
SCREW (M6 x 12) Stainless Steel Circuit Breaker Bracket to PCM Bracket
|
|
1 |
|
| 11 |
0000 |
OEM: 525-8M0054011 |
BRACKET Circuit Breaker |
|
1 |
|
| 12 |
0010 |
OEM: 525-10-860008, GLM: 700-22375 |
SCREW (.250-20 x .625) Torx |
|
2 |
|
| 13 |
0054 |
OEM: 525-54-899145 |
CLIP Tie Strap |
|
AR |
|
| 14 |
0085 |
OEM: 525-85-89919 |
BOOT Insulator - Black |
|
2 |
|
| 15 |
0000 |
OEM: 525-816492A15 |
ALARM KIT |
|
1 |
|
| 16 |
0010 |
OEM: 525-10-830861 |
SCREW (#8-32 x .625) |
[2A054617] & Below |
2 |
|
| 16 |
0010 |
45862 |
SCREW (#10-32 x .875) |
[2A054618 ] & Up |
2 |
|
| 17 |
0088 |
865827T |
BREAKER Circuit - 50 Ampere Flag Reset |
[2A054617] & Below |
1 |
|
| 17 |
0088 |
OEM: 530-11178A01 |
BREAKER Circuit - 50 Ampere Button Reset |
[2A054618 ] & Up |
1 |
|
| 18 |
0011 |
OEM: 525-11-826709106, GLM: 700-21163 |
NUT (#10-32) Stainless Steel |
[2A054617] & Below |
2 |
|
| 18 |
0011 |
OEM: 525-11-68219 |
NUT (#10-32) Stainless Steel |
[2A054618] & Up |
2 |
|
| 19 |
0000 |
OEM: 525-8M2017792 |
STUD Hot (3/8-16) |
|
1 |
|
| 20 |
0010 |
OEM: 525-10-82130025 |
SCREW (M6 x 25) |
|
2 |
|
| 21 |
0084 |
OEM: 525-84-8M0054620 |
HARNESS Hot Stud |
|
1 |
|
| 22 |
0085 |
8M2019142 |
INSULATOR |
|
1 |
|
| NS |
0054 |
OEM: 525-54-8M2020527 |
CLIP Hose |
|
1 |
|
| NS |
0010 |
OEM: 525-10-4010612 |
SCREW (M6 x 12) Stainless Steel |
|
1 |
|
| 23 |
0000 |
OEM: 525-864337A1 |
CONNECTOR Black |
|
1 |
|
| 24 |
0016 |
864287 |
STUD (M6) |
|
1 |
|
| 25 |
0011 |
OEM: 525-11-401366 |
NUT (M6) Stainless Steel |
|
1 |
|
